2014 Kawasaki Mule™ 610 4x4 XC Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2014 Kawasaki Mule™ 610 4x4 XC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

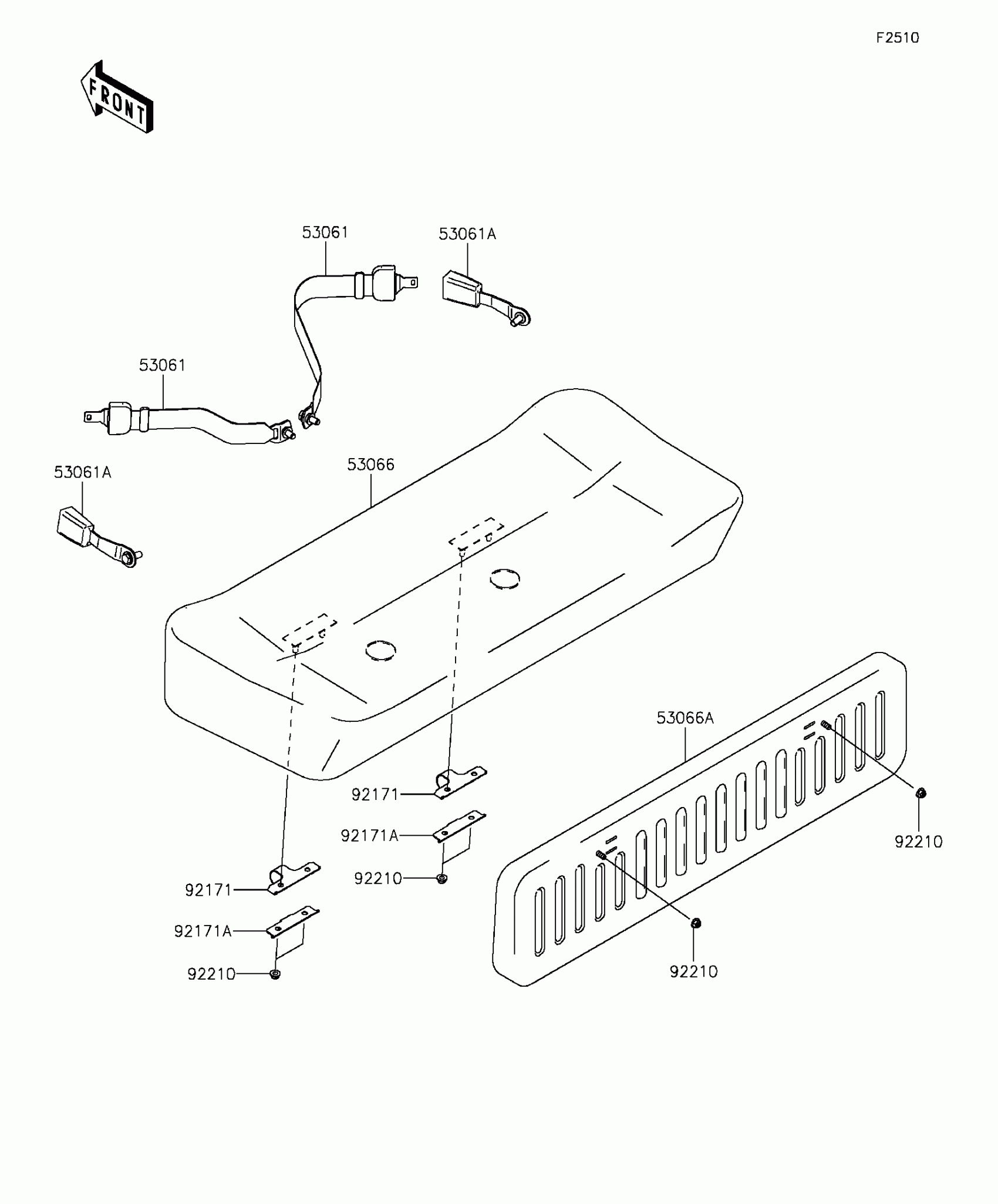

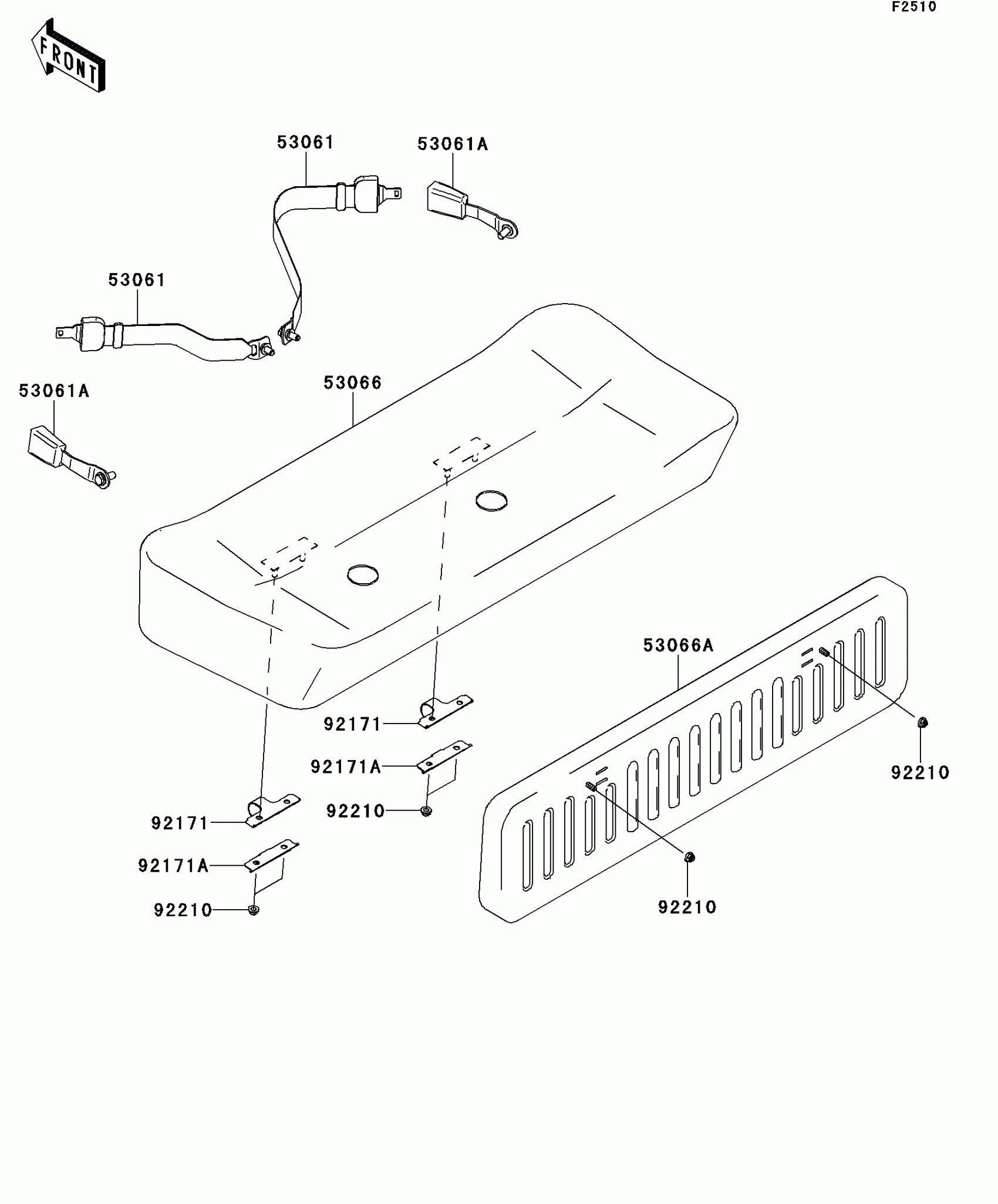

2014 Kawasaki Mule™ 610 4x4 XC Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

53061

1

$89.56

In stock

53061A

BELT-SEAT,BUCKLE

53061-1014

1

$76.63

In stock

53066

SEAT-ASSY,CUSHION,BLACK

53066-0269-MA

1

$469.75

In stock

53066A

SEAT-ASSY,BACK,BLACK

53066-0270-MA

1

$439.73

In stock

92171

CLAMP

92171-0441

1

$9.04

In stock

92171A

CLAMP

92171-0442

1

$10.92

In stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock
← Rear Fender Optional Parts →
