2016 Kawasaki Mule™ 610 4x4 XC SE Crankcase Diagram

← All diagrams

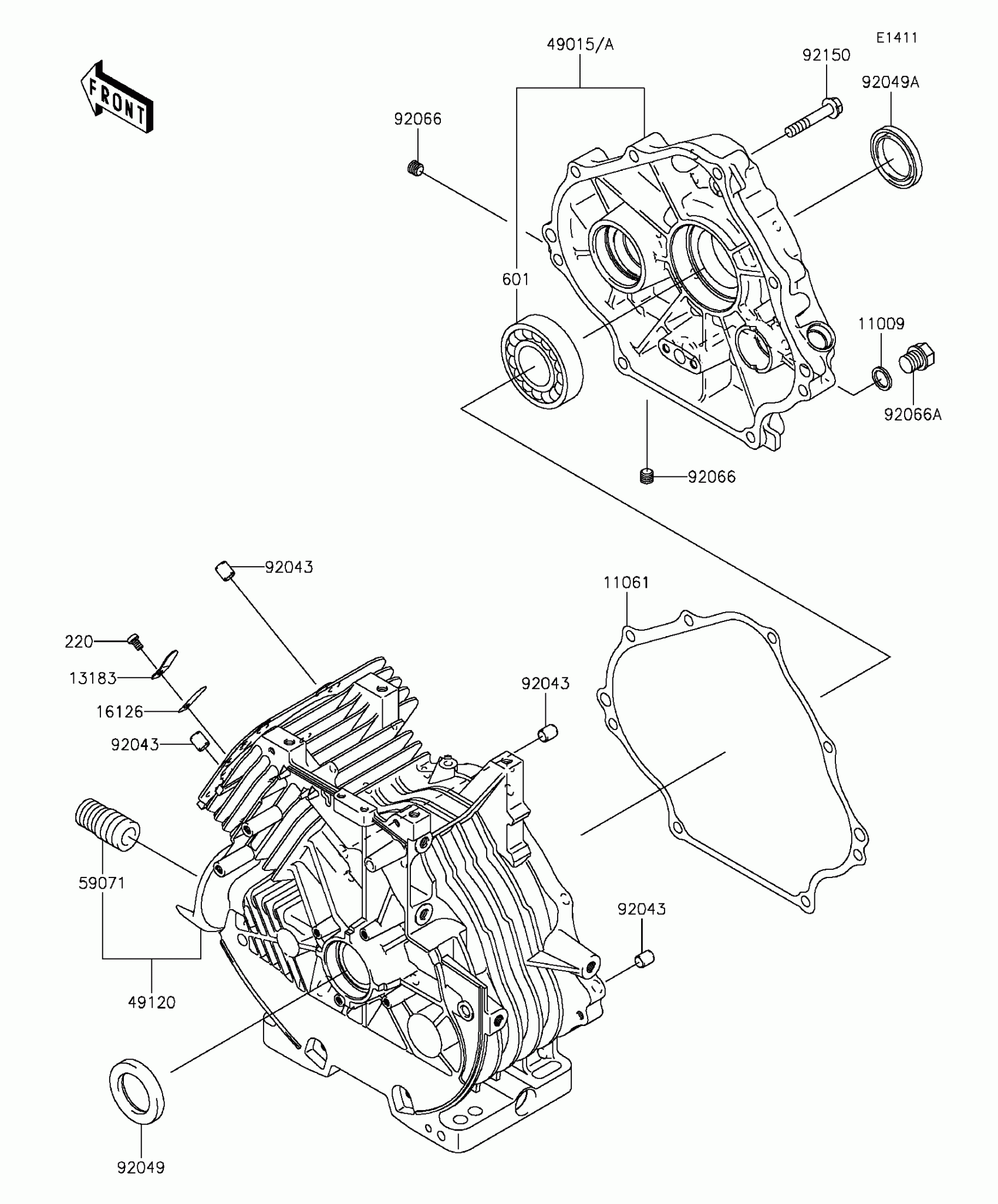

Find the part on the Crankcase diagram for your 2016 Kawasaki Mule™ 610 4x4 XC SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Mule™ 610 4x4 XC SE Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

11009-2175

1

$1.05

In stock

11061

1

$10.70

In stock

13183

PLATE

13183-2120

1

$0.49

In stock

16126

VALVE

16126-2146

1

$0.68

In stock

49015

COVER-CRANKCASE

49015-0038

1

$129.67

In stock

49120

CRANKCASE-COMP

49120-6162

1

$393.67

In stock

59071

JOINT

59071-2079

1

$5.80

In stock

92043

PIN

92043-7001

1

$0.64

In stock

92049

SEAL-OIL,SD 35X48X8 R HS

92049-7010

1
Out of stock

92049A

SEAL-OIL

92049-7018

1
Out of stock

92066

PLUG

92066-0762

1

$3.44

In stock

92066A

PLUG,14X12

92066-2253

1

$1.53

In stock

92150

BOLT,8X45

92150-2252

1

$1.64

In stock

220

SCREW-PAN-CROS,5X8

220AA0508

1

$0.51

In stock

601

BEARING-BALL

601A6207

1

$15.37

In stock
