2014 Kawasaki Mule™ 610 4x4 XC Guards/cab Frame Diagram

← All diagrams

Find the part on the Guards/cab Frame diagram for your 2014 Kawasaki Mule™ 610 4x4 XC, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

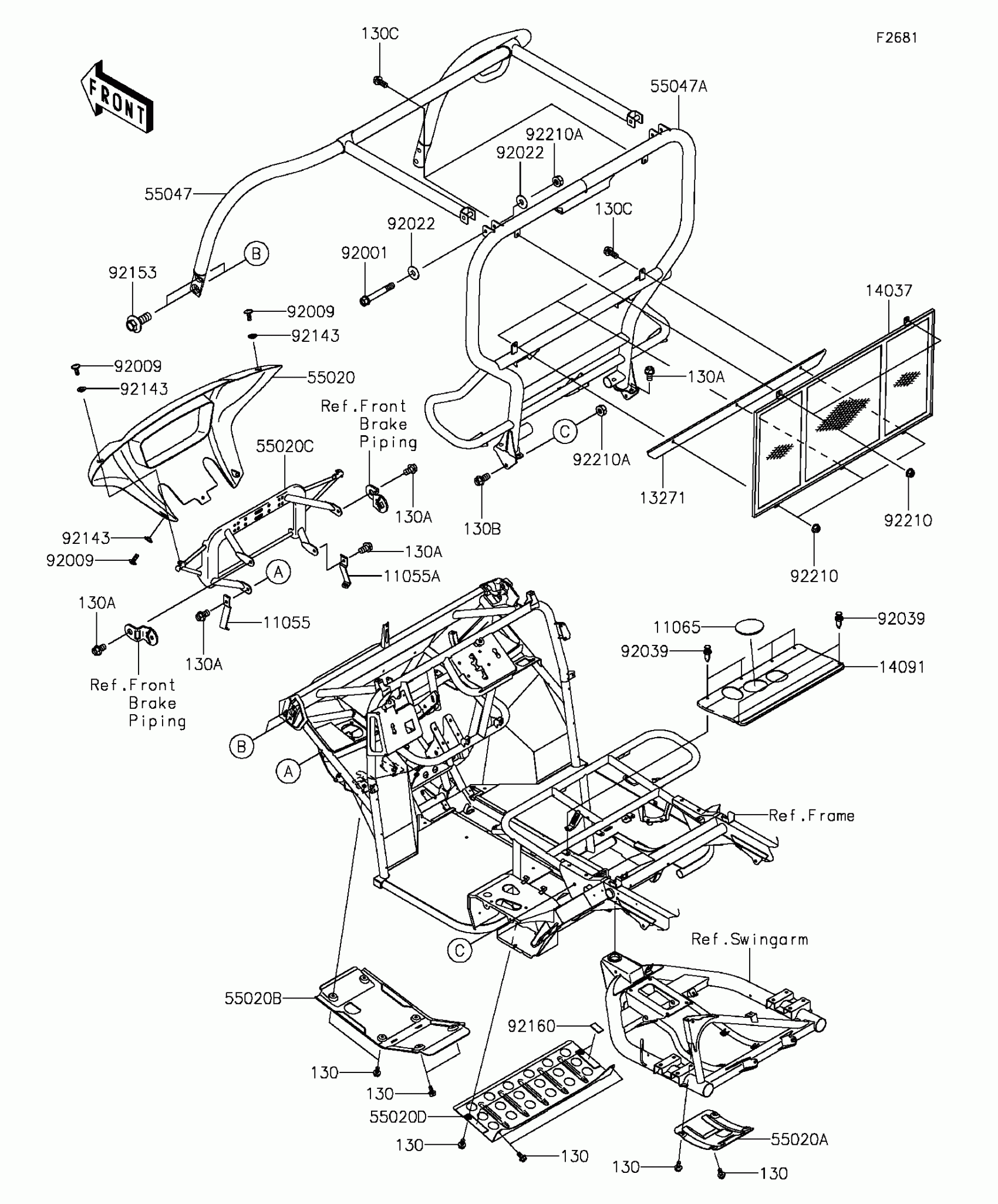

2014 Kawasaki Mule™ 610 4x4 XC Guards/cab Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,LH

11055-7510

1

$15.64

In stock

11055A

BRACKET,RH

11055-7511

1

$15.64

In stock

11065

CAP,F.BLACK

11065-1053-6Z

1
Out of stock

13271A

PLATE,SCREEN,T.M.GRAY

13271-0560-16Y

1

$65.46

In stock

14037A

SCREEN,T.M.GRAY

14037-0035-16Y

1

$168.85

In stock

14091

COVER

14091-0355

1
Out of stock

55020

1

$92.95

In stock

55020A

GUARD,DIFF

55020-0141

1

$40.89

In stock

55020C

GUARD,FRONT DIFF

55020-0165

1

$59.17

In stock

55020D

GUARD,FRONT

55020-0777

1

$457.78

In stock

55020E

GUARD

55020-0883

1

$72.41

In stock

55047A

BAR-COMP,FR,T.M.GRAY

55047-0006-16Y

1
Out of stock

55047D

BAR-COMP,RR,T.M.GRAY

55047-0329-16Y

1
Out of stock

92001

BOLT,FLANGED,10X70

92001-1618

1
Out of stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92143

COLLAR

92143-1087

1
Out of stock

92153

BOLT,FLANGED,14X36

92153-1282

1
Out of stock

92160

DAMPER

92160-1102

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock

92210A

NUT,LOCK,10MM

92210-1204

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

130B

BOLT-FLANGED,10X20

130BA1020

1

$2.68

In stock

130C

BOLT-FLANGED,8X20

130BB0820

1

$0.83

In stock
