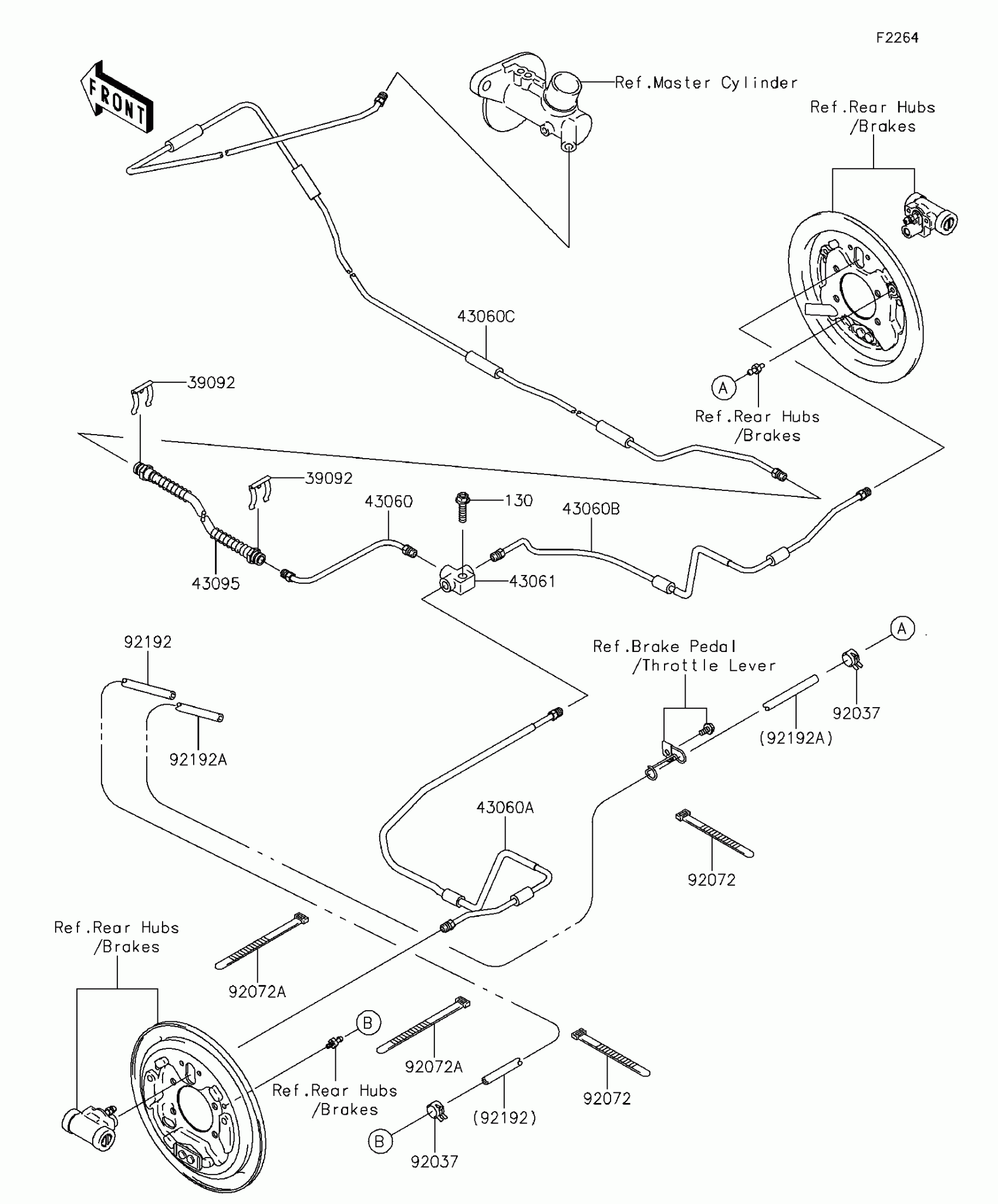

Kawasaki MULE™ 610 4x4 XC CAMO Rear Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$6.33

43060

PIPE-BRAKE,RR,CNT

43060-0006

$24.07

43060A

PIPE-BRAKE,RR,LH

43060-0007

$51.27

43060B

PIPE-BRAKE,RR,RH

43060-0008

$35.09

43060C

PIPE-BRAKE,M/CYLINDER

43060-7507

Unavailable

43061

JOINT-BRAKE

43061-1063

$36.46

43095

HOSE-BRAKE

43095-0488

$29.08

92037

CLAMP

92037-1601

$12.32

92072

BAND,L=123

92072-030

$3.97

92072A

BAND,L=149

92072-031

$3.97

92192

TUBE,4.7X9.5X1320

92192-0103

$9.51

92192A

TUBE,4.7X9.5X1760

92192-0176

$12.36

130

BOLT-FLANGED,8X30

130AA0830

$0.78
