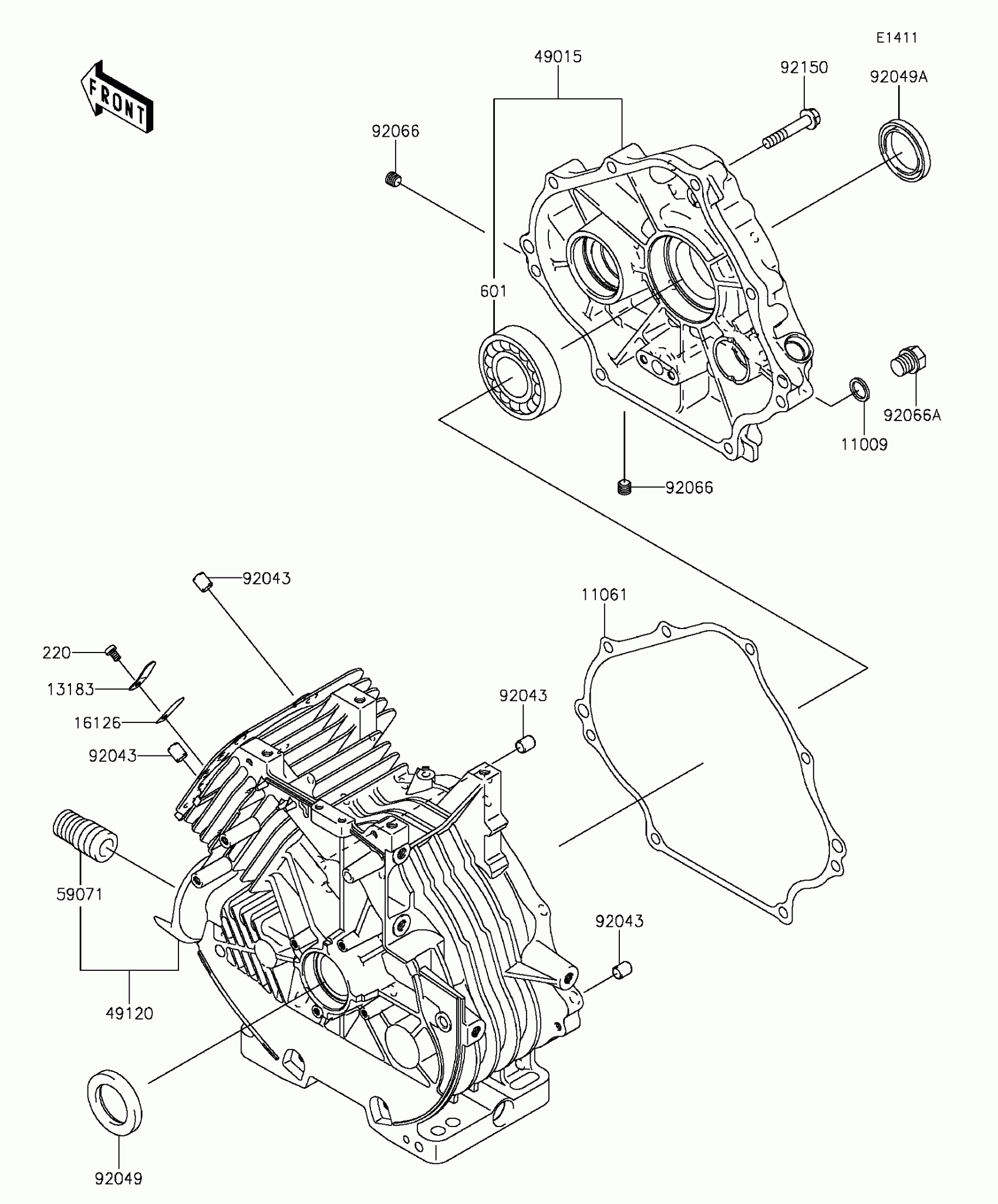

Kawasaki MULE™ 610 4x4 XC CAMO Crankcase Diagram

Description

Price

11009

GASKET

11009-2175

$1.05

11061

GASKET,COVER-CRANKCASE

11061-0798

$10.70

11065

CAP

11065-7005

$1.07

13183

PLATE

13183-2120

$0.49

16126

VALVE

16126-2146

$0.68

49015

COVER-CRANKCASE

49015-7050

$121.06

49120

CRANKCASE-COMP

49120-6162

$393.67

59071

JOINT

59071-2079

$5.80

92043

92043-7001

$0.64

92049

SEAL-OIL,SD 35X48X8 R HS

92049-7010

$2.47

92049A

SEAL-OIL

92049-7018

$3.12

92066

PLUG,14X12

92066-2253

$1.53

92066A

PLUG

92066-7026

$3.44

92150

BOLT,8X45

92150-2252

$1.64

220

SCREW-PAN-CROS,5X8

220AA0508

$0.51

601

BEARING-BALL

601A6207

$15.37
