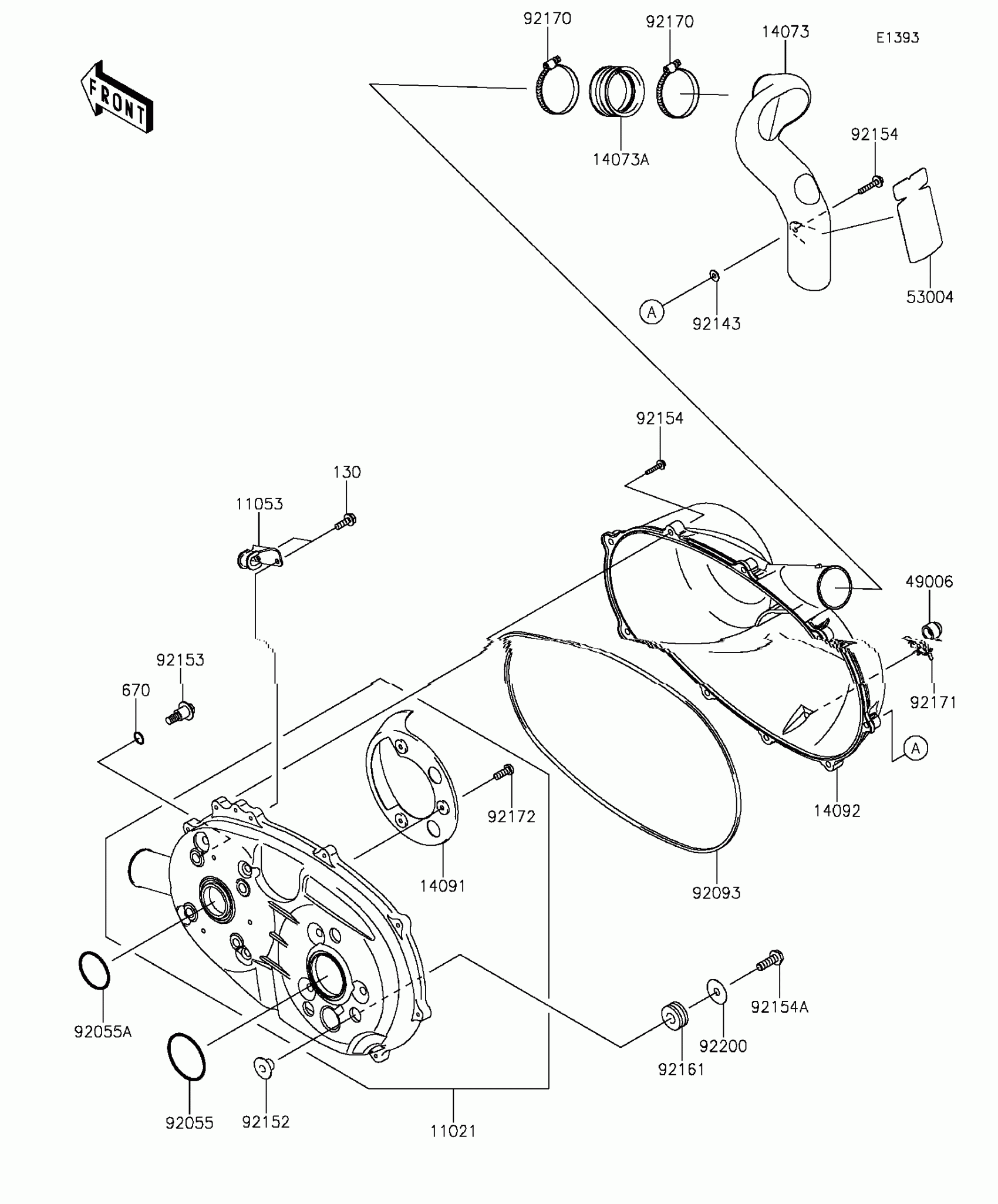

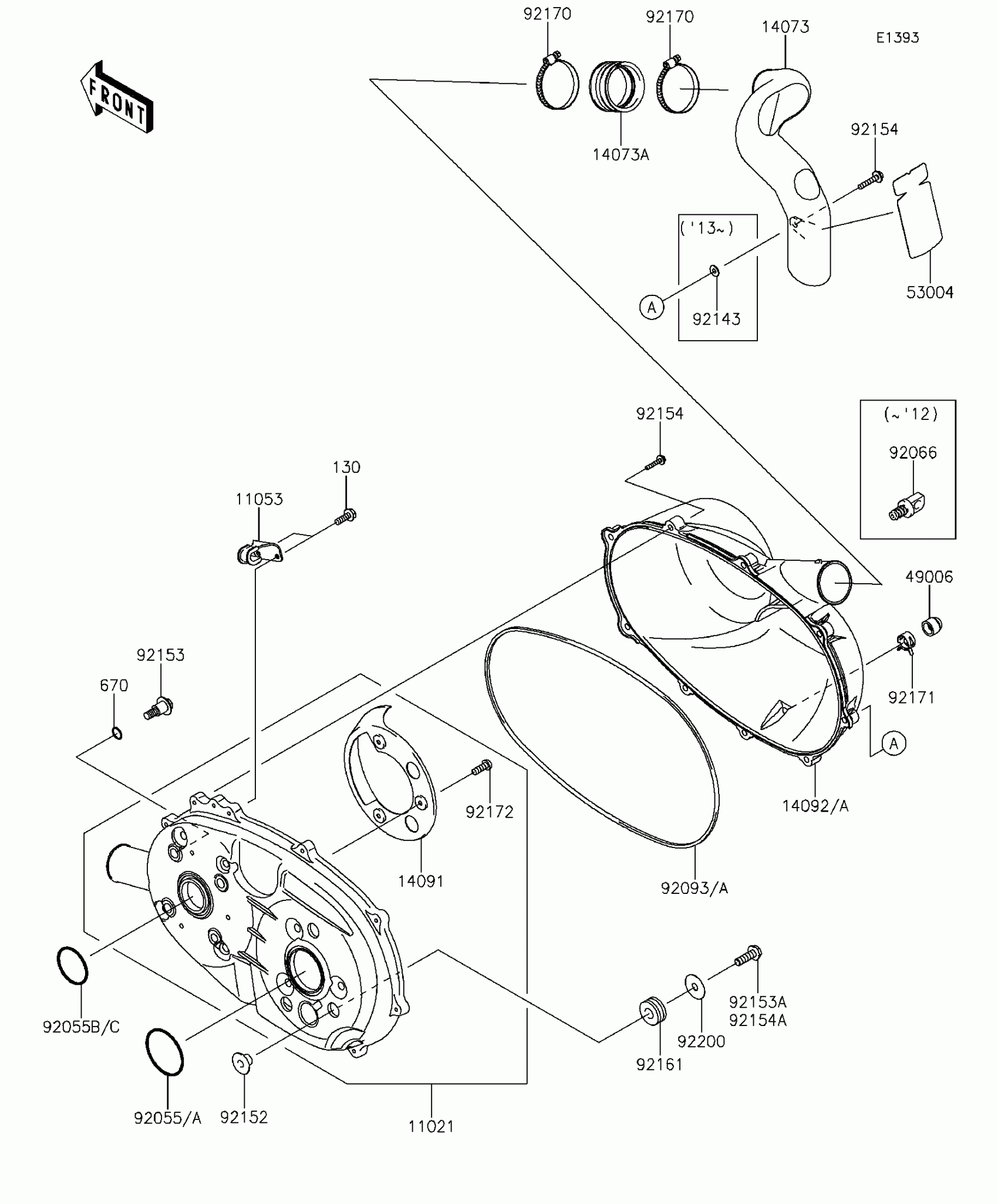

Kawasaki MULE™ 610 4x4 XC CAMO Converter Cover Diagram

Description

Price

11021

CASE-ASSY,BELT CONVERTER

11021-0023

$119.03

11053

BRACKET

11053-1483

$7.69

14073

DUCT,EXHAUST

14073-0287

$49.16

14073A

DUCT,JOINT

14073-1775

$3.32

14091

COVER

14091-0391

$23.71

14092

COVER,BELT CONVERTER

14092-1007

$101.30

49006

BOOT,DRAIN

49006-3718

$4.94

53004

MAT

53004-0051

$31.28

92055A

RING-O,64MM

92055-0748

$7.15

92055B

RING-O,49.4MM

92055-0749

$4.95

92093A

SEAL

92093-0586

$31.19

92143

COLLAR

92143-1087

$2.98

92152

COLLAR

92152-0894

$11.27

92153

BOLT,8X26.5

92153-0594

$4.08

92154

BOLT,6X35

92154-0342

$2.58

92154A

BOLT,FLANGED,8X25

92154-1068

$7.31

92161

DAMPER

92161-1484

$1.36

92170

CLAMP

92170-1764

$8.62

92171

CLAMP

92171-0329

$6.77

92172

SCREW,5X14

92172-0166

$1.81

92200

WASHER,8.5X29X0.8

92200-0574

$4.68

130

BOLT-FLANGED,6X18

130BB0618

$1.33

670

O RING,12MM

670D2012

$2.19
