2015 Kawasaki Mule™ 610 4x4 XC Camo Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2015 Kawasaki Mule™ 610 4x4 XC Camo, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

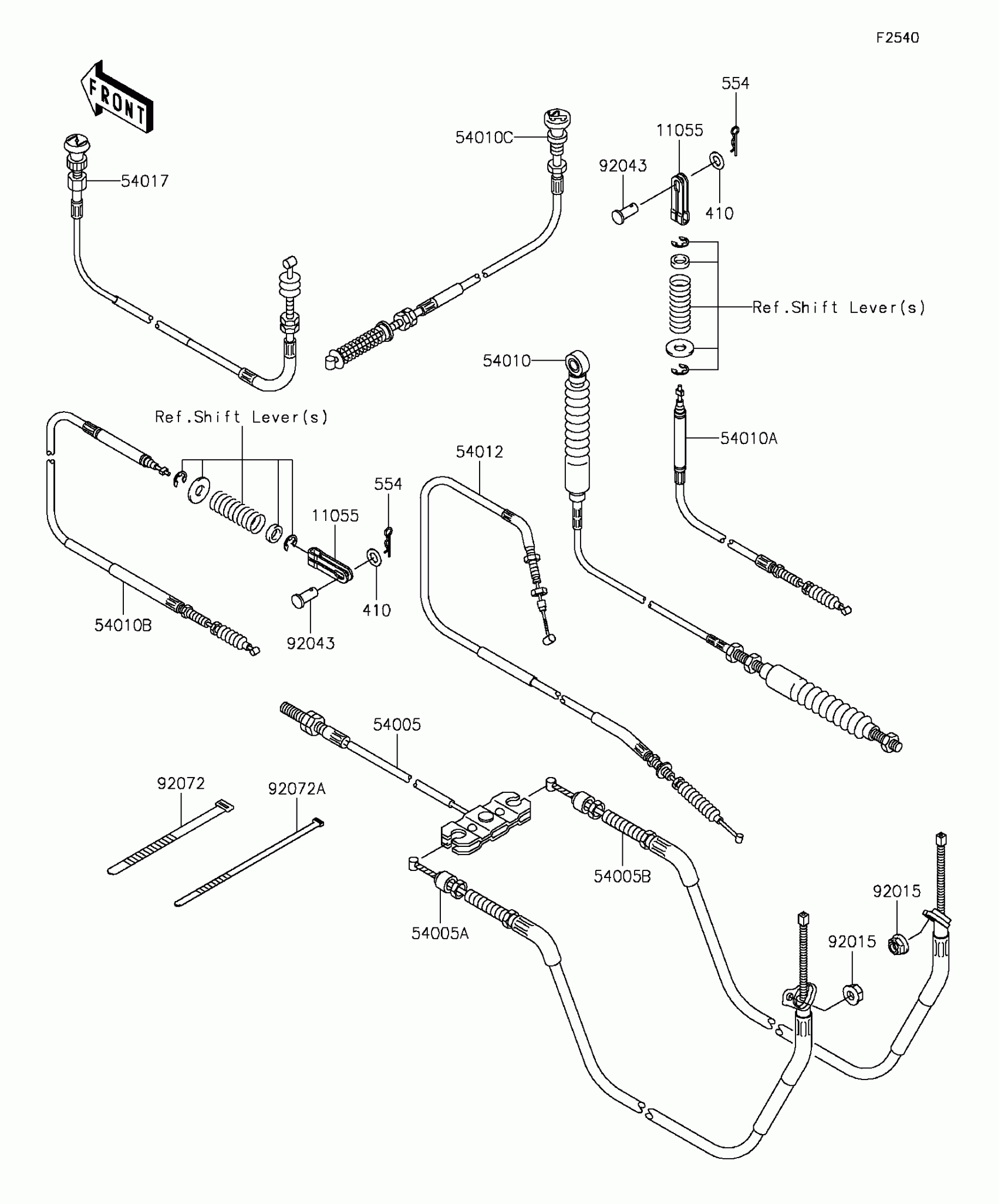

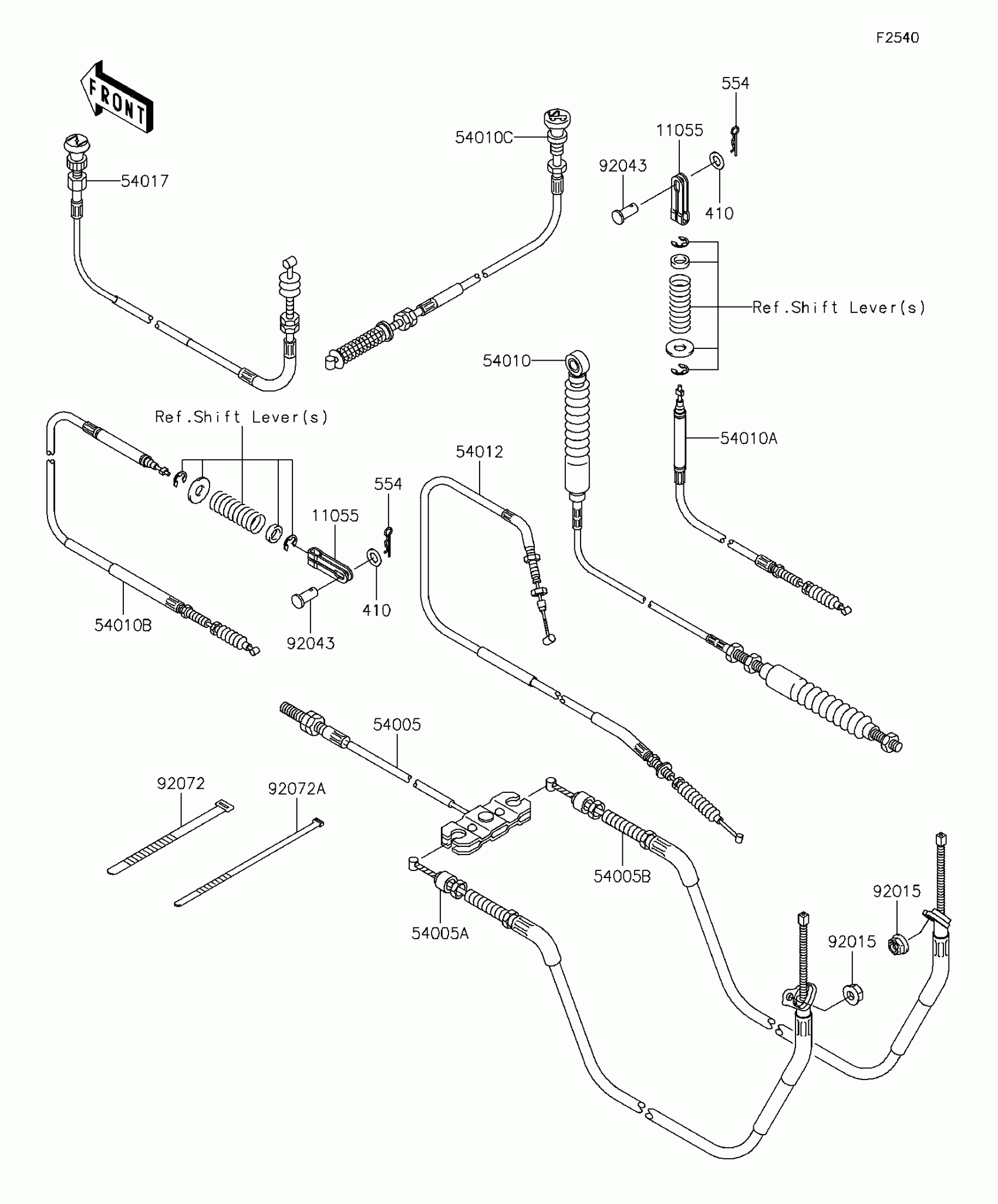

2015 Kawasaki Mule™ 610 4x4 XC Camo Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET,DIFF LOCK

11055-7505

1

$9.02

In stock

54005

1

$8.16

In stock

54005A

1

$33.05

In stock

54005B

1

$39.47

In stock

54010

CABLE,SHIFT CONTROL

54010-0014

1

$175.55

In stock

54010A

CABLE,2-4WD

54010-0015

1

$52.08

In stock

54010B

CABLE,DIFF LOCK

54010-0017

1

$91.31

In stock

54010C

CABLE,HOOD

54010-0600

1

$27.20

In stock

54012

CABLE-THROTTLE

54012-0127

1

$43.23

In stock

54017

CABLE-STARTER

54017-0012

1

$54.03

In stock

92015

1

$1.20

In stock

92043

PIN,6X11

92043-092

1

$4.17

In stock

92072

BAND,L=149

92072-031

1

$3.97

In stock

92072A

BAND,L=188

92072-1239

1

$1.51

In stock

410

WASHER-PLAIN-SMALL

410AA0600

1

$1.19

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1

$0.92

In stock
