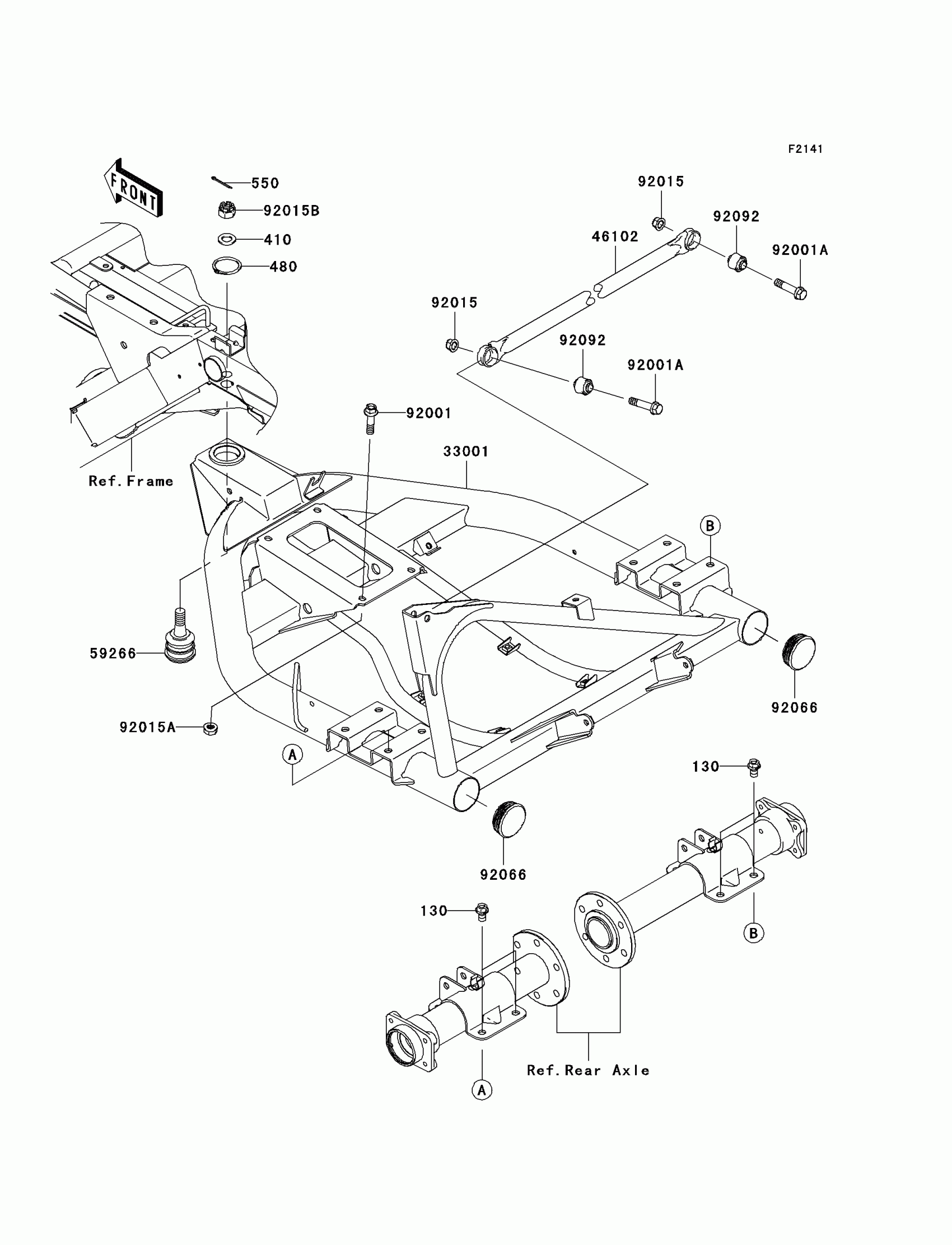

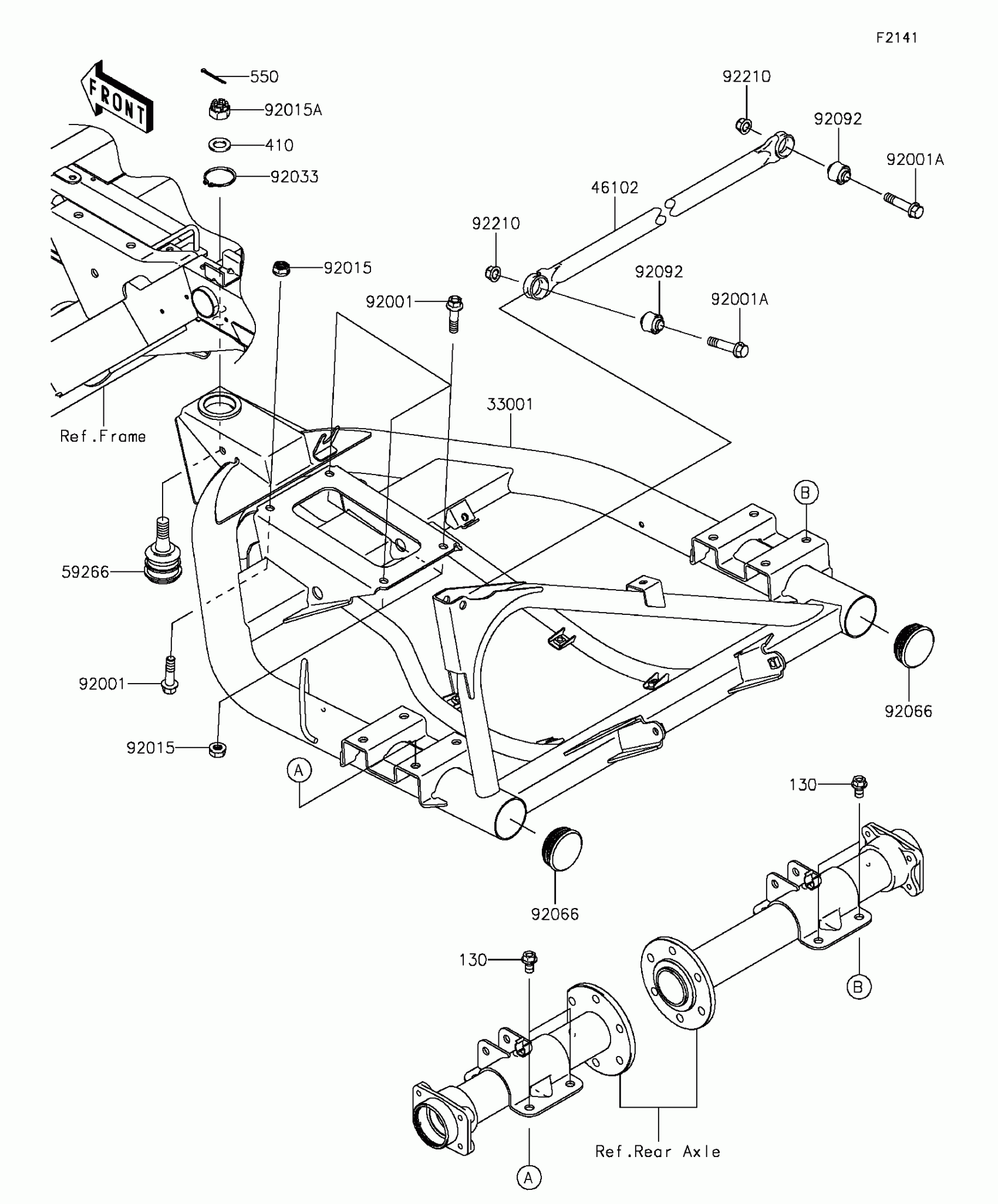

Kawasaki Mule 610 4x4 Swingarm Diagram

Description

Price

130

BOLT-FLANGED,10X16

130J1016

Unavailable

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

480

CIRCLIP, 38MM

480J3800

$4.75

550

PIN,COTTER

550D3230

Unavailable

33001

ARM-COMP-SWING

33001-0061

$542.25

46102

ROD

46102-1297

$87.86

59266

JOINT-BALL

59266-1087

$58.19

92001

BOLT,FLANGED,10X38

92001-1293

$7.25

92001A

BOLT,FLANGED,10X44

92001-1499

$4.18

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92015B

NUT,CASTLE,14MM

92015-1841

$6.39

92066

PLUG

92066-0044

$3.86

92092

BUSHING-RUBBER

92092-1072

$9.31
