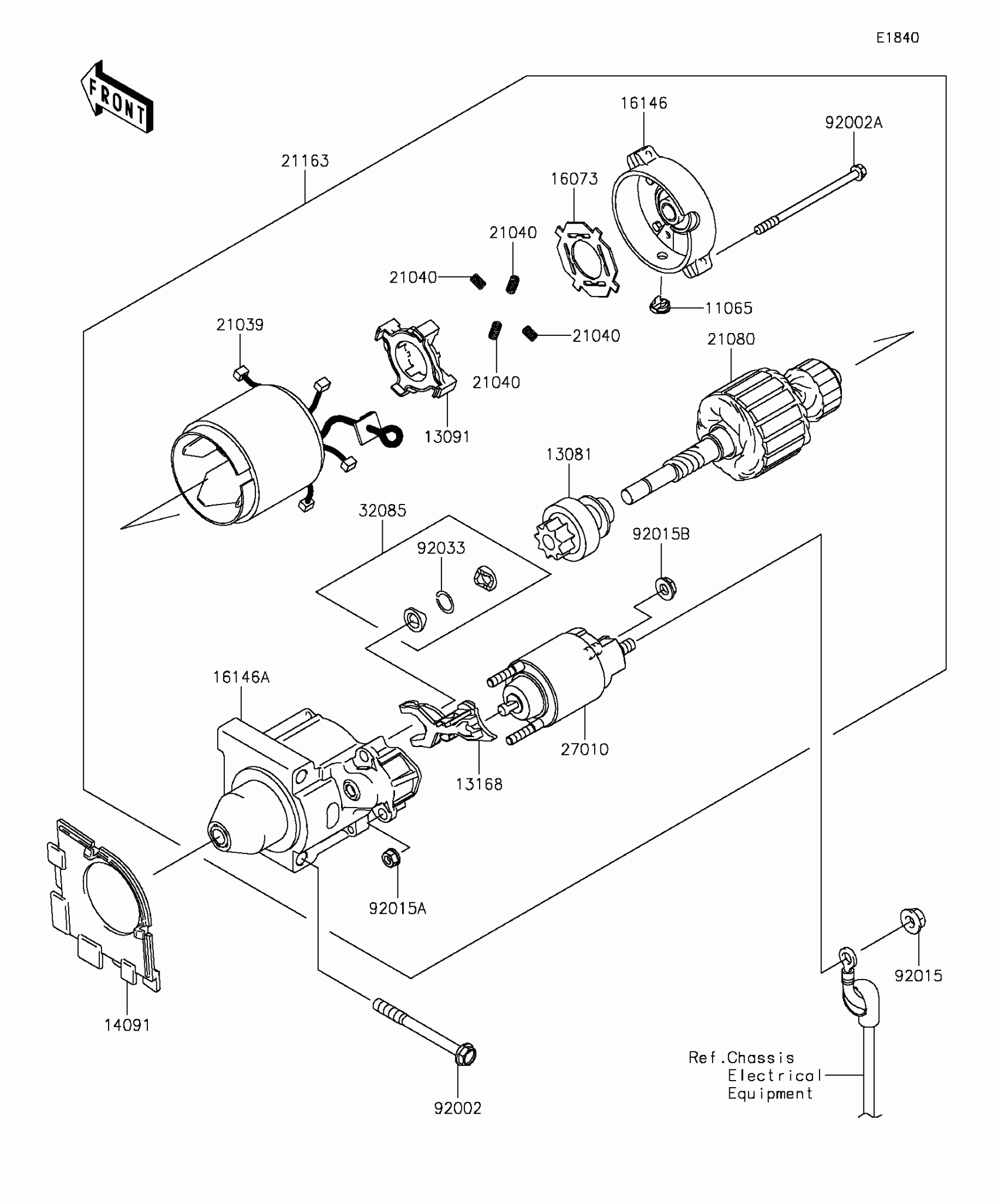

Kawasaki MULE™ 610 4x4 SE Fleet Starter Motor Diagram

Description

Price

11065

CAP

11065-2118

$2.76

13081

CLUTCH-ASSY

13081-2227

$89.28

13091

HOLDER,BRUSH

13091-2068

$24.75

13168

LEVER,SHIFT

13168-2148

$19.24

14091

COVER

14091-7038

$6.47

16073

INSULATOR

16073-2098

$8.47

16146

COVER-ASSY,END

16146-7016

$66.20

16146A

COVER-ASSY

16146-7025

$87.68

21039

BRUSH

21039-2059

$13.14

21040

SPRING-BRUSH

21040-2052

$3.05

21080

ARMATURE

21080-2058

$254.55

21163

STARTER-ELECTRIC

21163-7028

$444.34

27010

SWITCH

27010-7005

$172.43

32085

STOPPER

32085-2097

$13.22

92002

BOLT,8X83

92002-1794

$4.48

92002A

BOLT

92002-2277

$10.05

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT

92015-2146

$1.27

92015B

NUT

92015-2147

$2.29

92033

RING-SNAP

92033-2081

$3.42
