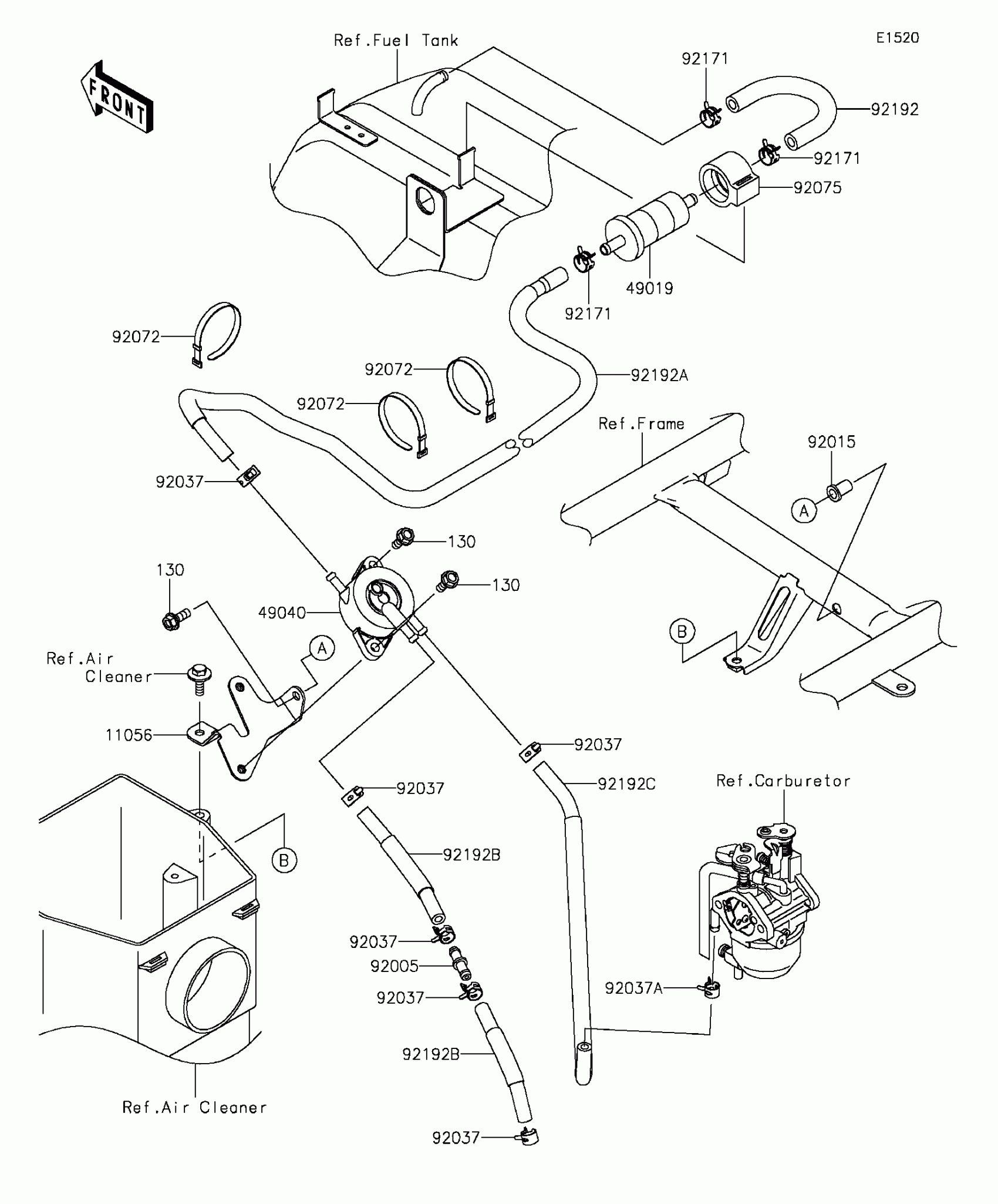

Kawasaki MULE™ 610 4x4 SE Fleet Fuel Pump Diagram

Description

Price

11056

BRACKET,PUMP FUEL

11056-7402

$9.92

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-0005

$103.64

92005

FITTING

92005-0789

$19.69

92015

NUT,POP,6MM

92015-1759

$4.42

92037

CLAMP,TUBE

92037-1505

$3.63

92037A

CLAMP

92037-2113

$0.97

92072

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92171

CLAMP

92171-0515

$5.56

92192

TUBE,7.5X12.5X200

92192-0243

$17.53

92192A

TUBE,FILTER FUEL-PUMP FUEL

92192-1453

$90.84

92192B

TUBE,CRAB.INSULATOR-PUMP

92192-1613

$5.54

92192C

TUBE,PUMP FUEL-CARB.

92192-1614

$59.18

130

BOLT-FLANGED,6X16

130BA0616

$0.97
