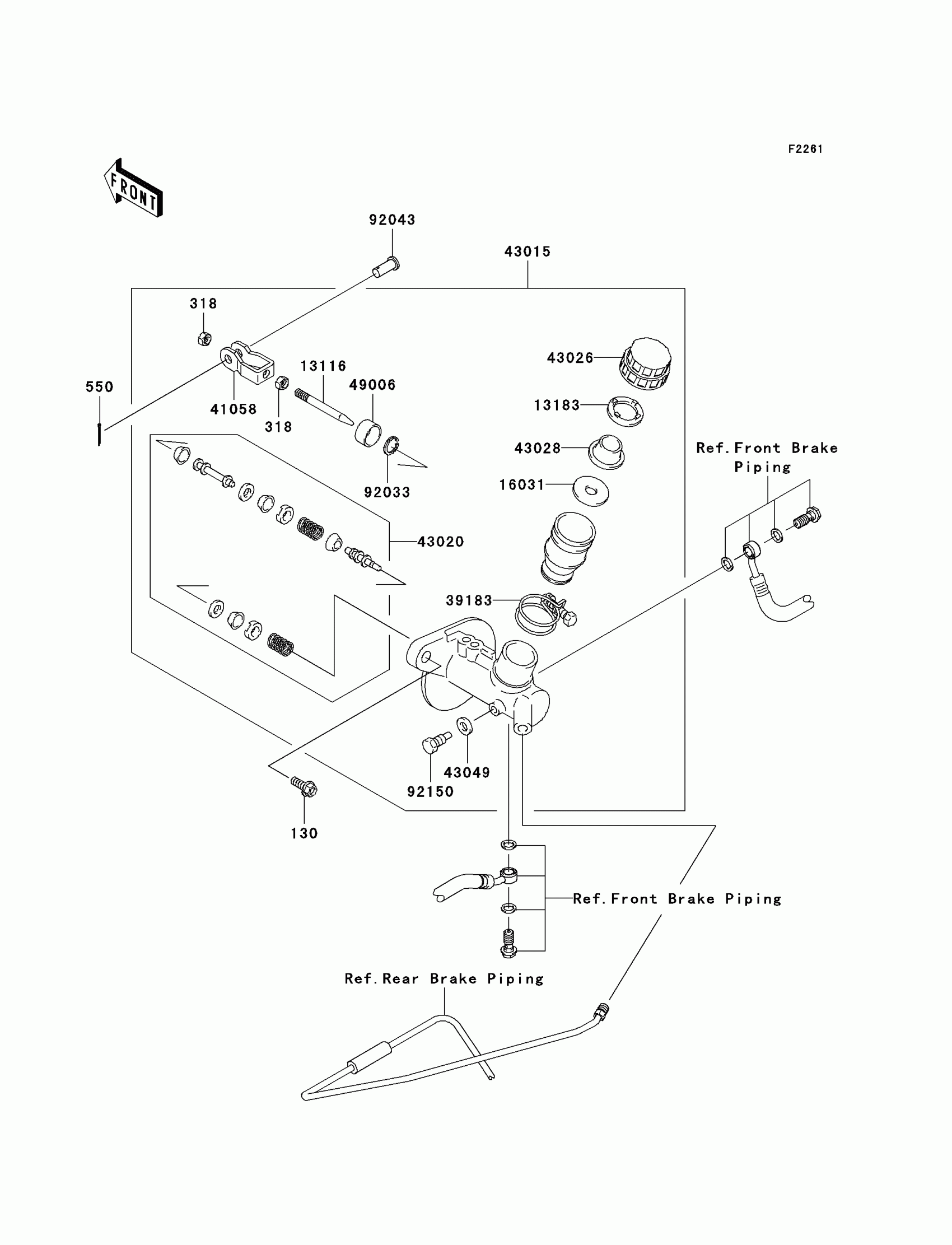

Find the part on the Master Cylinder diagram for your 2007 Kawasaki Mule 610 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

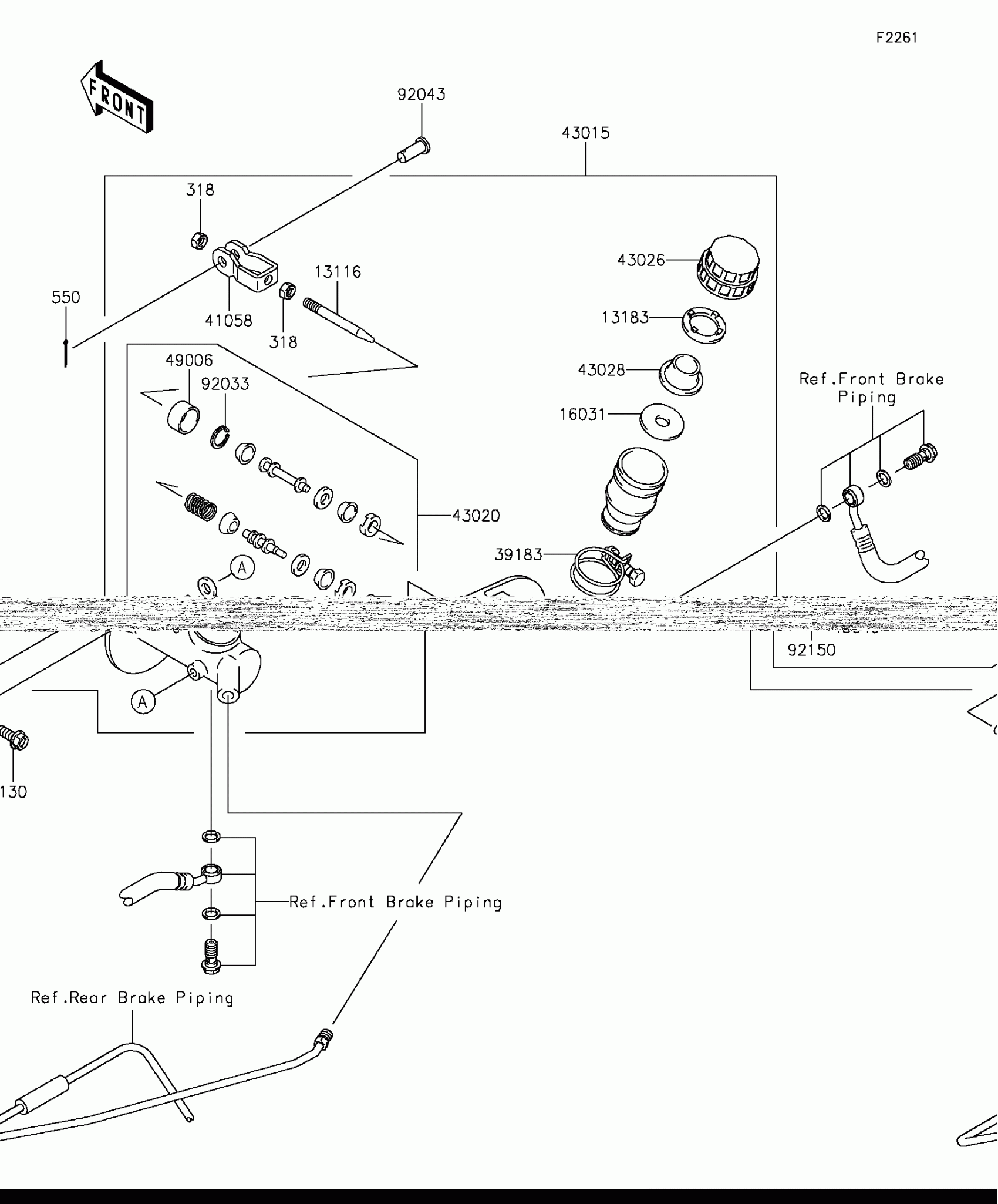

2007 Kawasaki Mule 610 4x4 Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130D0820

1
Out of stock

318

NUT-HEX-SMALL

318H0800

1
Out of stock

550

PIN-COTTER,2.5X18

550D2518

1
Out of stock

13116

ROD-PUSH

13116-1134

1
Out of stock

13183

PLATE

13183-1306

1
Out of stock

16031

FLOAT

16031-1069

1
Out of stock

39183

BAND-ASSY

39183-1055

1

$10.63

In stock

41058

RODEND-BRAKE

41058-1057

1

$16.37

In stock

43015

CYLINDER-ASSY-MASTER

43015-1683

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1124

1
Out of stock

43026

CAP-BRAKE

43026-1067

1
Out of stock

43028

DIAPHRAGM

43028-1078

1
Out of stock

43049

PACKING

43049-1065

1
Out of stock

49006

BOOT

49006-1245

1
Out of stock

92033

RING-SNAP

92033-1255

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92150

BOLT,STOP

92150-1165

1
Out of stock
