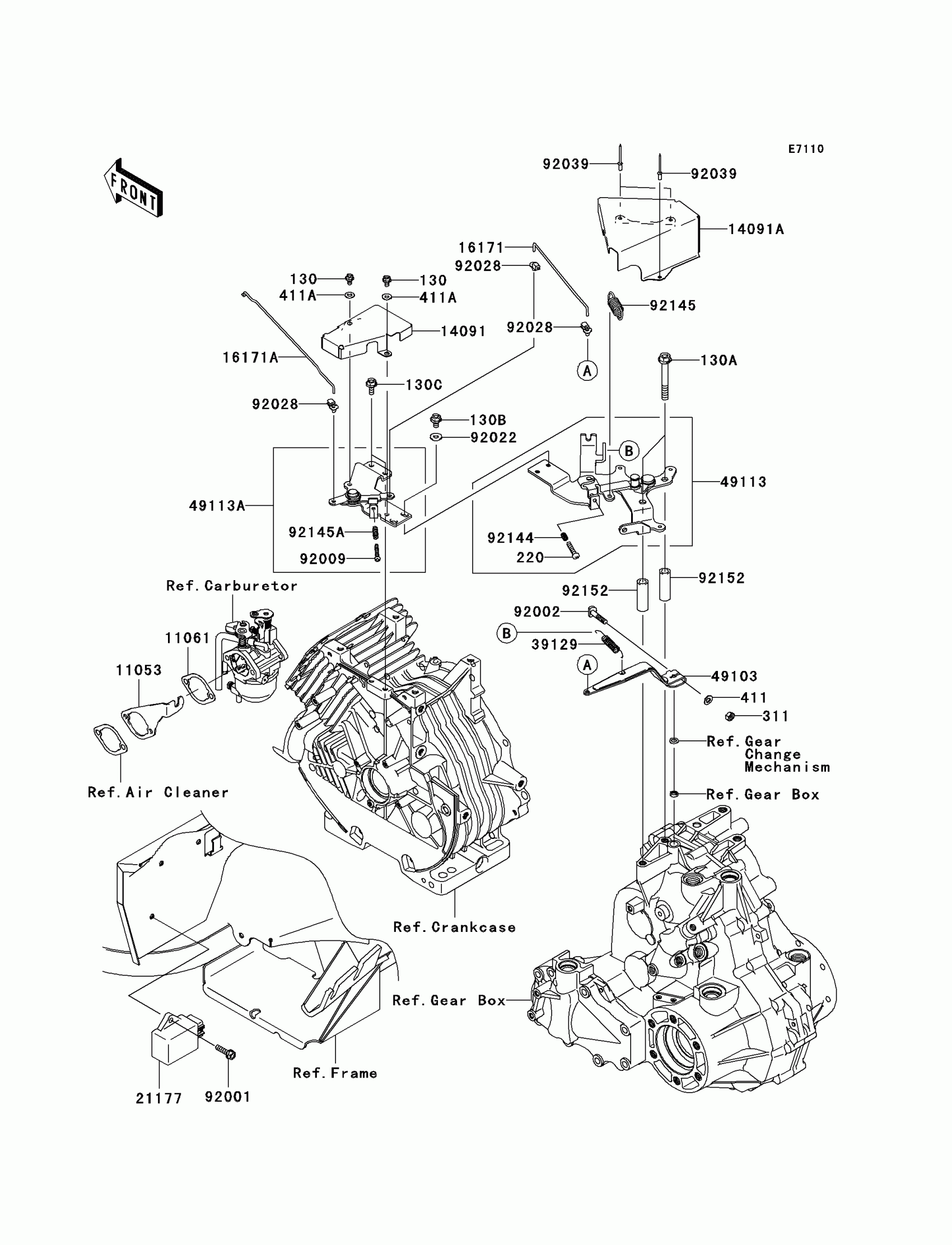

Kawasaki Mule 610 4x4 Hardwoods Green HD Control Diagram

Description

Price

130

BOLT-FLANGED,5X8

130G0508

Unavailable

130A

BOLT-FLANGED,8X60

130G0860

Unavailable

130B

BOLT-FLANGED

130J0610

Unavailable

130C

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW PAN HEAD 5X22

220B0522

Unavailable

311

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

411A

WASHER-PLAIN,5MM,BLACK

411F0500

Unavailable

11053

BRACKET

11053-7026

$2.47

11061

GASKET,CHOKE

11061-7026

$0.87

14091

COVER,FR

14091-0401

$14.00

14091A

COVER,RR

14091-0402

$14.00

16171

LINK

16171-0007

$4.92

16171A

LINK

16171-2103

Unavailable

21177

CONTROLLER

21177-0003

$141.72

39129

SPRING-GOVERNOR

39129-0006

$5.92

49103

ARM-GOVERNOR

49103-1055

$13.24

49113

PANEL-COMP-CONTROL

49113-0004

Unavailable

49113A

PANEL-COMP-CONTROL

49113-2196

$26.86

92001

BOLT,FLANGED,6X22

92001-1352

$3.29

92002

BOLT,6X28

92002-2269

$1.05

92009

SCREW,4X30

92009-7002

$0.66

92022

WASHER,6.2X15X1.2

92022-2373

$0.46

92028

BUSHING,GOVERNOR

92028-2156

$1.66

92039

RIVET,BLIND,4.0X9.2

92039-1163

$2.47

92144

SPRING

92144-2266

$3.52

92145

SPRING,RETURN

92145-0301

$4.24

92145A

SPRING

92145-7005

$0.90

92152

COLLAR,9.1X13.95X42

92152-7501

$5.84
