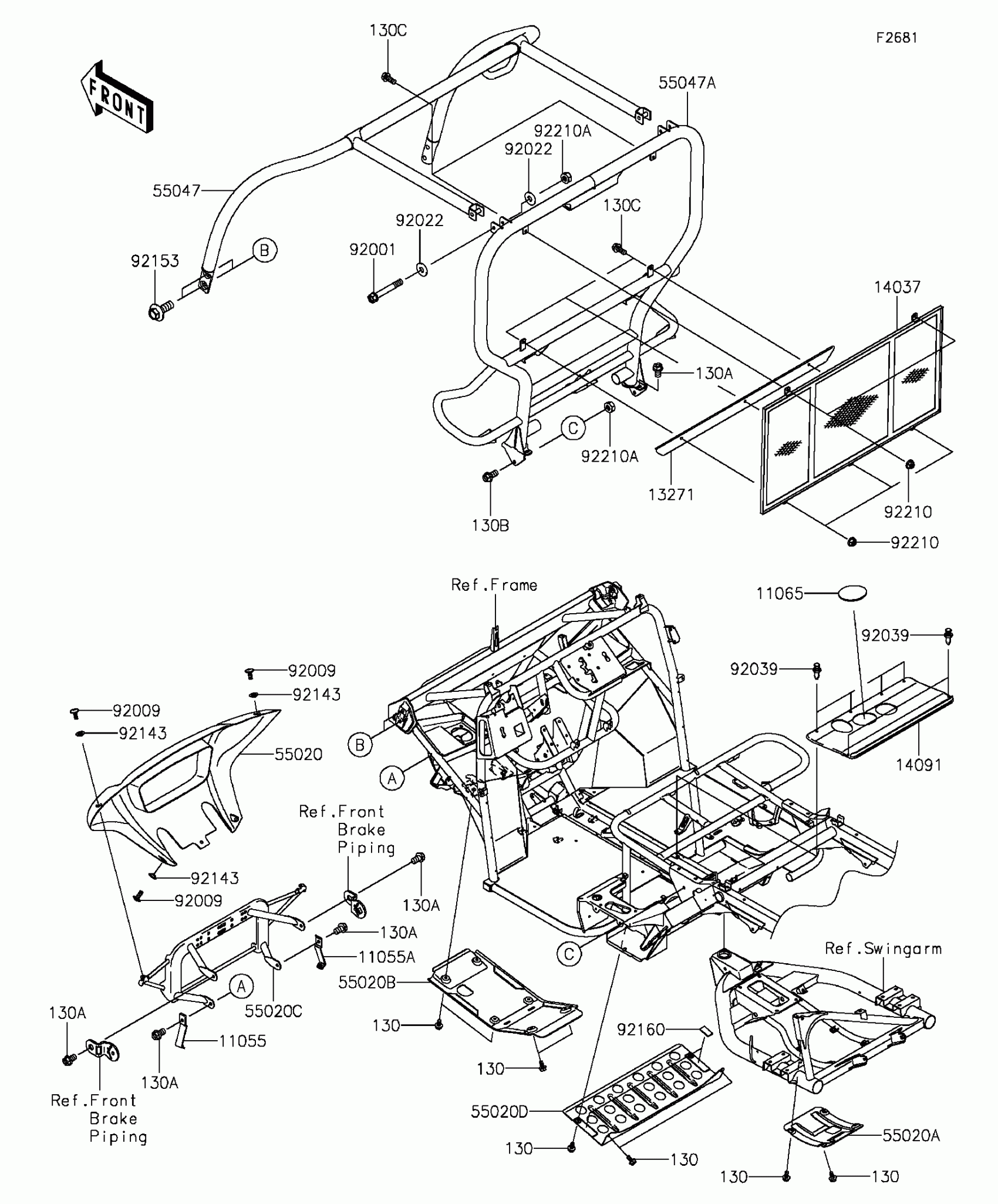

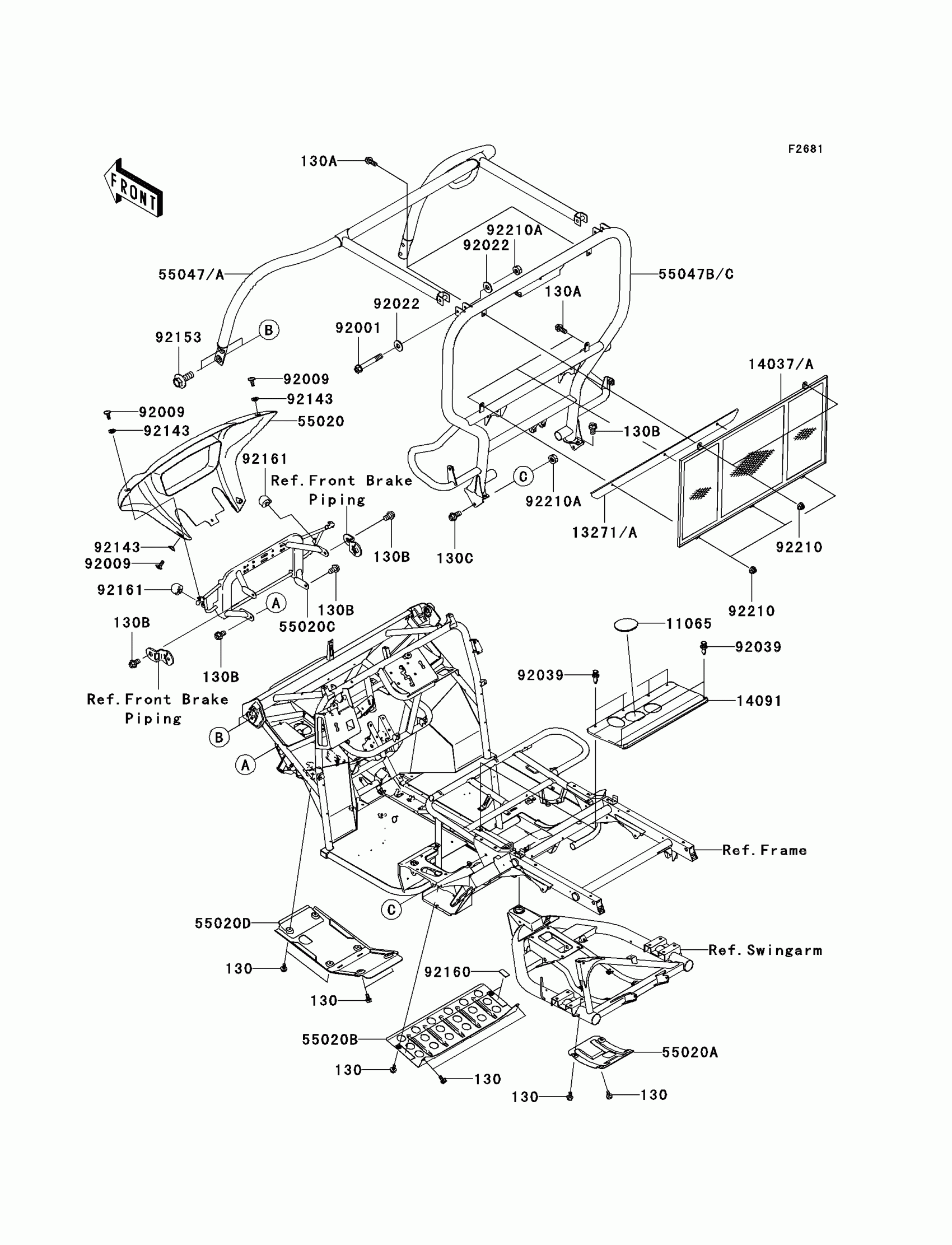

Kawasaki Mule 610 4x4 Guards/Cab Frame Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

130B

BOLT-FLANGED,10X16

130J1016

Unavailable

130C

BOLT-FLANGED,10X20

130J1020

Unavailable

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13271

PLATE,SCREEN,H.GREEN

13271-0560-B9

$56.39

13271A

PLATE,SCREEN,A.RED

13271-0560-467

$67.68

14037

SCREEN,H.GREEN

14037-0035-B9

$147.85

14037A

SCREEN,A.RED

14037-0035-467

$176.74

14091

COVER

14091-0355

$4.60

55020

GUARD,FRONT BUMPER,BLACK

55020-0090-283

$81.68

55020A

GUARD,DIFF

55020-0141

$40.14

55020B

GUARD

55020-0143

Unavailable

55020C

GUARD,FRONT

55020-0163

Unavailable

55020D

GUARD,FRONT DIFF

55020-0165

$58.14

55047

BAR-COMP,FR,H.GREEN

55047-0006-B9

$318.87

55047A

BAR-COMP,FR,A.RED

55047-0006-467

$349.89

55047B

BAR-COMP,RR,H.GREEN

55047-0008-B9

$638.91

55047C

BAR-COMP,RR,A.RED

55047-0008-467

$638.91

92001

BOLT,FLANGED,10X70

92001-1618

$10.37

92009

SCREW,6X16

92009-1621

$3.60

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92039

RIVET

92039-1229

$0.88

92143

COLLAR

92143-1087

$4.31

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92160

DAMPER

92160-1102

$1.49

92161

DAMPER

92161-0157

$4.70

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

92210A

NUT,LOCK,10MM

92210-1204

$4.31
