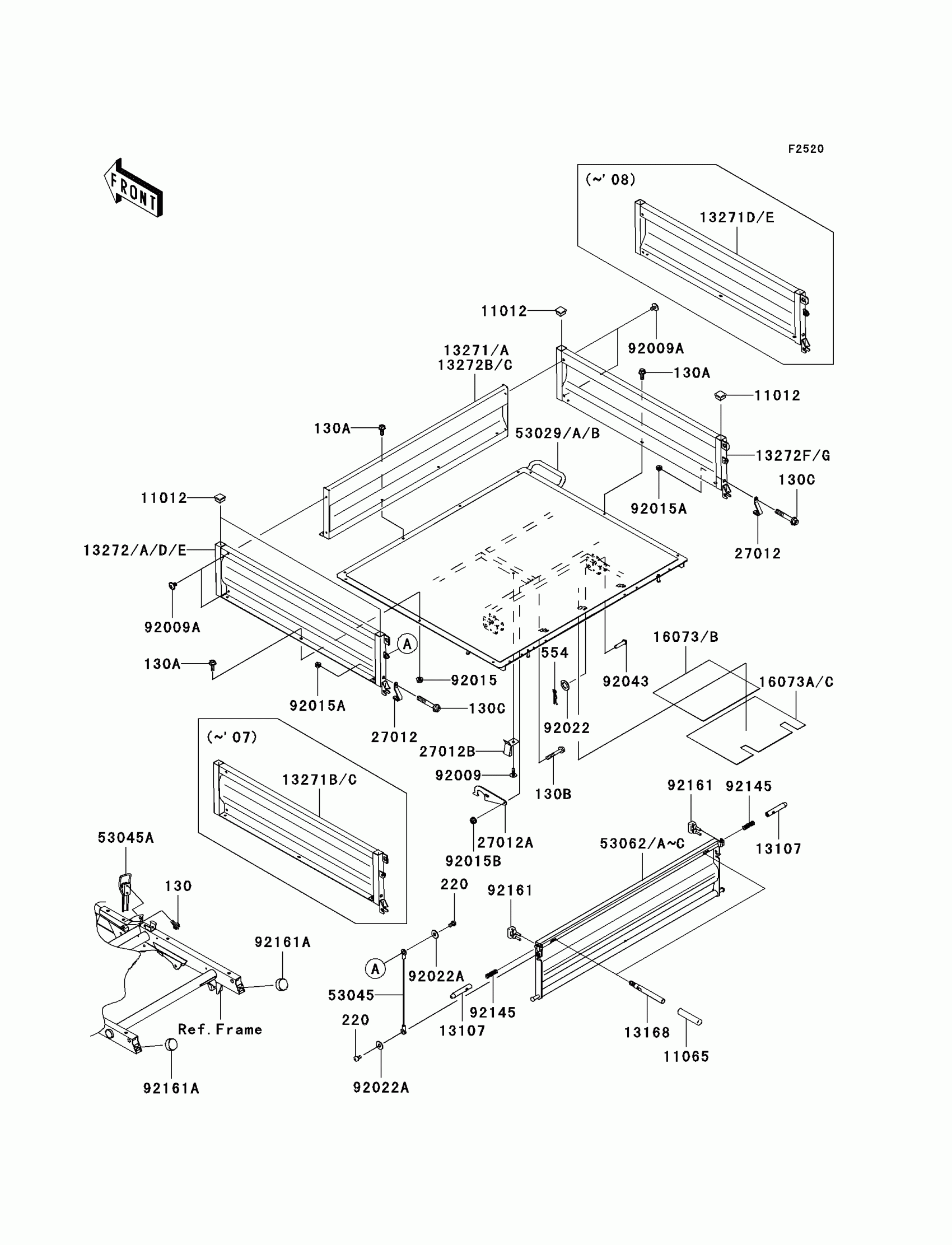

Kawasaki Mule 610 4x4 Carrier(s)(A6F-A9F) Diagram

#

Description
Price

11012

CAP

11012-1784

$5.00

11065

CAP

11065-0126

$2.71

13107

SHAFT

13107-0082

$60.07

13168

LEVER

13168-0090

$9.53

13272B

PLATE,CARRIER,SIDE,FR,D.R.RED

13272-0531-16M

Unavailable

13272C

PLATE,CARRIER,SIDE,FR,W.GREEN

13272-0531-398

Unavailable

13272D

PLATE,CARRIER,SIDE,LH,D.R.RED

13272-0532-16M

Unavailable

13272E

PLATE,CARRIER,SIDE,LH,W.GREEN

13272-0532-398

Unavailable

13272F

PLATE,CARRIER,SIDE,RH,D.R.RED

13272-0533-16M

Unavailable

13272G

PLATE,CARRIER,SIDE,RH,W.GREEN

13272-0533-398

Unavailable

16073B

INSULATOR,CARRIER

16073-0039

$56.04

16073C

INSULATOR,CARRIER

16073-0040

$56.44

27012

HOOK,TAIL GATE

27012-0022

$5.09

27012A

HOOK

27012-0044

$31.59

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,D.R.RED

53029-0018-16M

Unavailable

53029A

CARRIER,W.GREEN

53029-0018-398

Unavailable

53045

HOOK-ASSY,TAIL GATE

53045-0006

$23.83

53045A

HOOK-ASSY

53045-1063

$21.73

53062B

GATE-TAIL,D.R.RED

53062-0011-16M

$336.30

53062C

GATE-TAIL,W.GREEN

53062-0011-398

$336.30

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92009A

SCREW,6X10

92009-1661

$3.43

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.37

92015A

NUT,FLANGED,8MM

92015-1408

$4.27

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92022

WASHER,12.5X22X1.2

92022-072

$3.12

130

BOLT-FLANGED,6X14

130BB0614

$1.84

130A

BOLT-FLANGED,6X16

130BB0616

$1.73

130B

BOLT-FLANGED,6X40

130BB0640

$2.53

130C

BOLT-FLANGED,8X50

130BB0850

$3.75

220

SCREW-PAN-CROS,6X10

220AB0610

$1.54

554

PIN-SNAP,12MM

554DA1200

$2.74

92022A

WASHER,7X18X1.2

92022-1545

$0.97

92043

PIN,12X54

92043-1451

$9.42

92145

SPRING,TENSIONER

92145-1215

$3.67

92161

DAMPER

92161-0258

$3.32

92161A

DAMPER

92161-1065

$2.97
