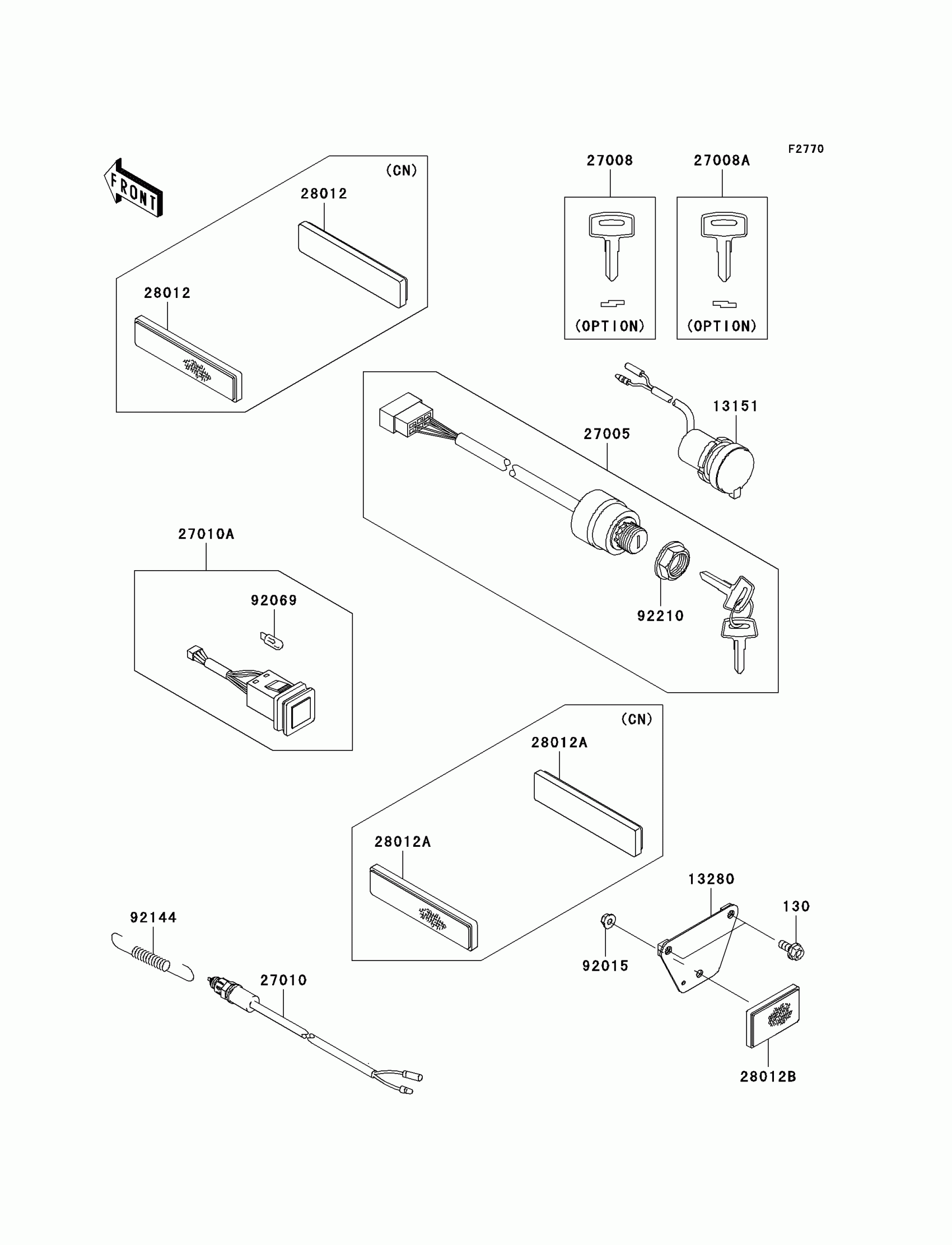

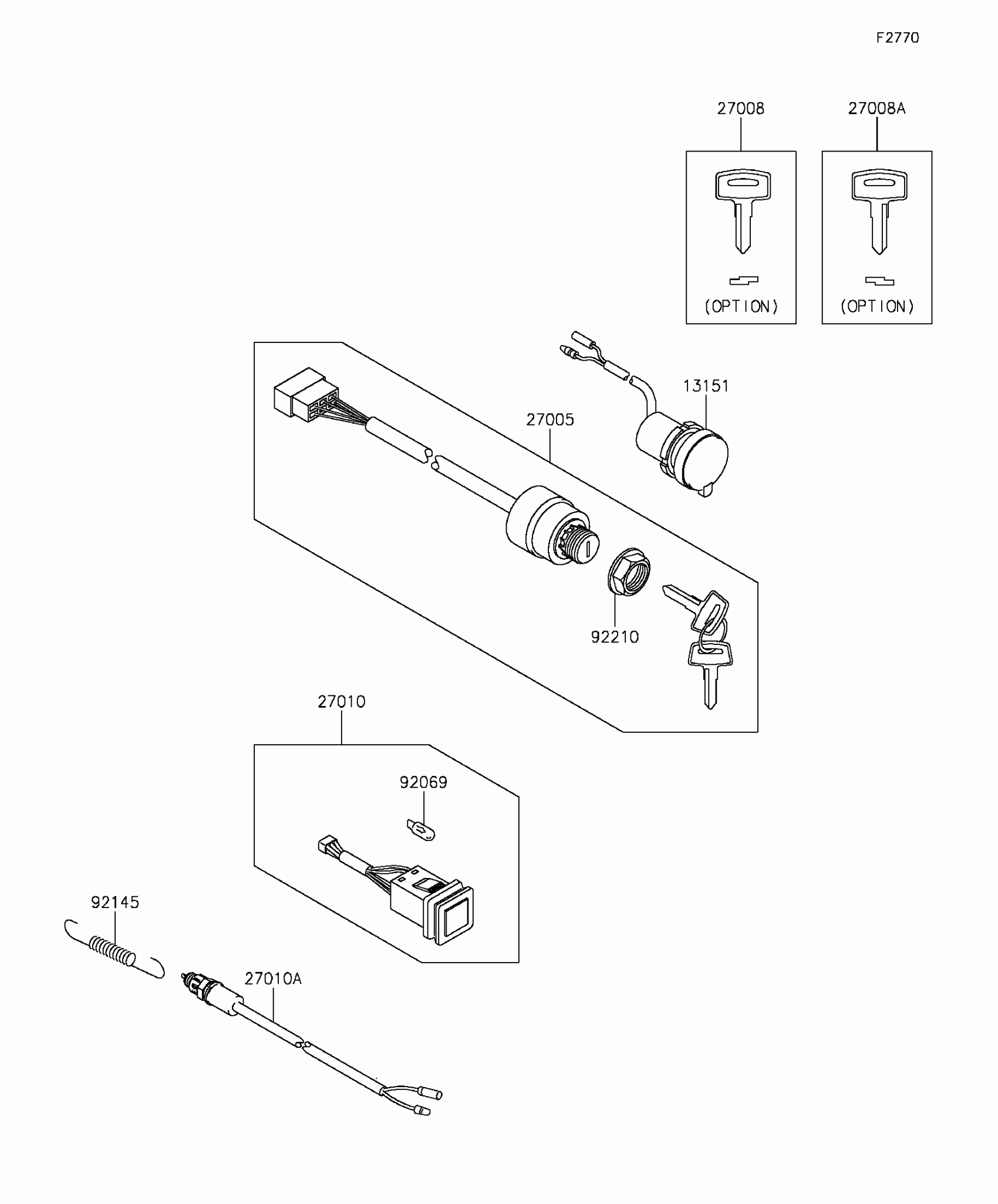

Kawasaki Mule 600 Ignition Switch Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

13151

SWITCH-COMP,D.C.TERMINAL

13151-0003

$145.52

13280

HOLDER,REFLECTOR

13280-0146

$7.41

27005

SWITCH-ASSY-IGNITION

27005-0011

$84.25

27008

KEY-LOCK,BLANK

27008-1153

$13.56

27008A

KEY-LOCK,BLANK

27008-1157

$13.56

27010

SWITCH,REAR BRAKE

27010-1475

$27.07

27010A

SWITCH,HEAD LAMP

27010-1498

Unavailable

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92069

BULB,12V 1.7W,T6.5

92069-1118

$2.71

92144

SPRING,REAR BRAKE SWITCH

92144-1143

$8.73

92210

NUT,IGNITION SWITCH

92210-1264

$4.53

28012

REFLECTOR-REFLEX,FR

28012-1086

Unavailable

28012A

REFLECTOR-REFLEX,RR

28012-1087

$11.14
