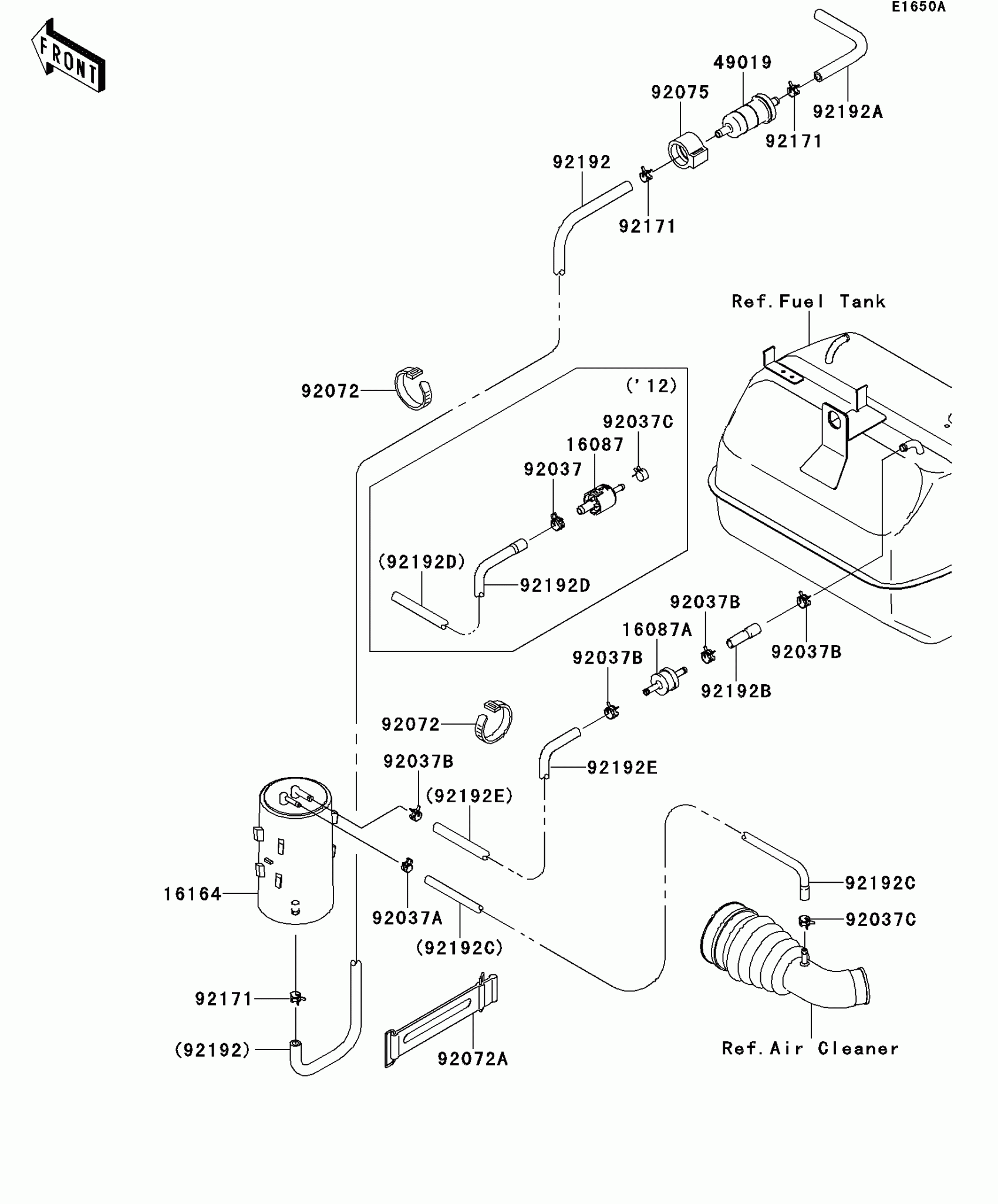

Kawasaki MULE™ 600 Fuel Evaporative System(BCF-BFF) Diagram

Description

Price

16087A

VALVE-CHECK

16087-0703

$34.38

16164

CANISTER

16164-0007

Unavailable

49019

FILTER-FUEL

49019-1055

$21.00

92037A

CLAMP,TUBE

92037-1461

$3.08

92037B

CLAMP,TUBE

92037-1505

$3.78

92037C

CLAMP

92037-2113

$0.97

92072

BAND,L=186

92072-056

$3.97

92072A

BAND,L=168

92072-1306

$10.88

92075

DAMPER,FUEL FILTER

92075-1853

$9.78

92171

CLAMP

92171-0515

$5.56

92192

TUBE,CANISTER-FILTER

92192-0592

$10.53

92192A

TUBE,FILTER-AIR

92192-0609

$5.32

92192B

TUBE,TANK-CHECK VALVE

92192-0769

$3.22

92192C

TUBE,CANISTER-DUCT

92192-1027

$10.36

92192E

TUBE,5.8X10.8X565

92192-1177

$11.61
