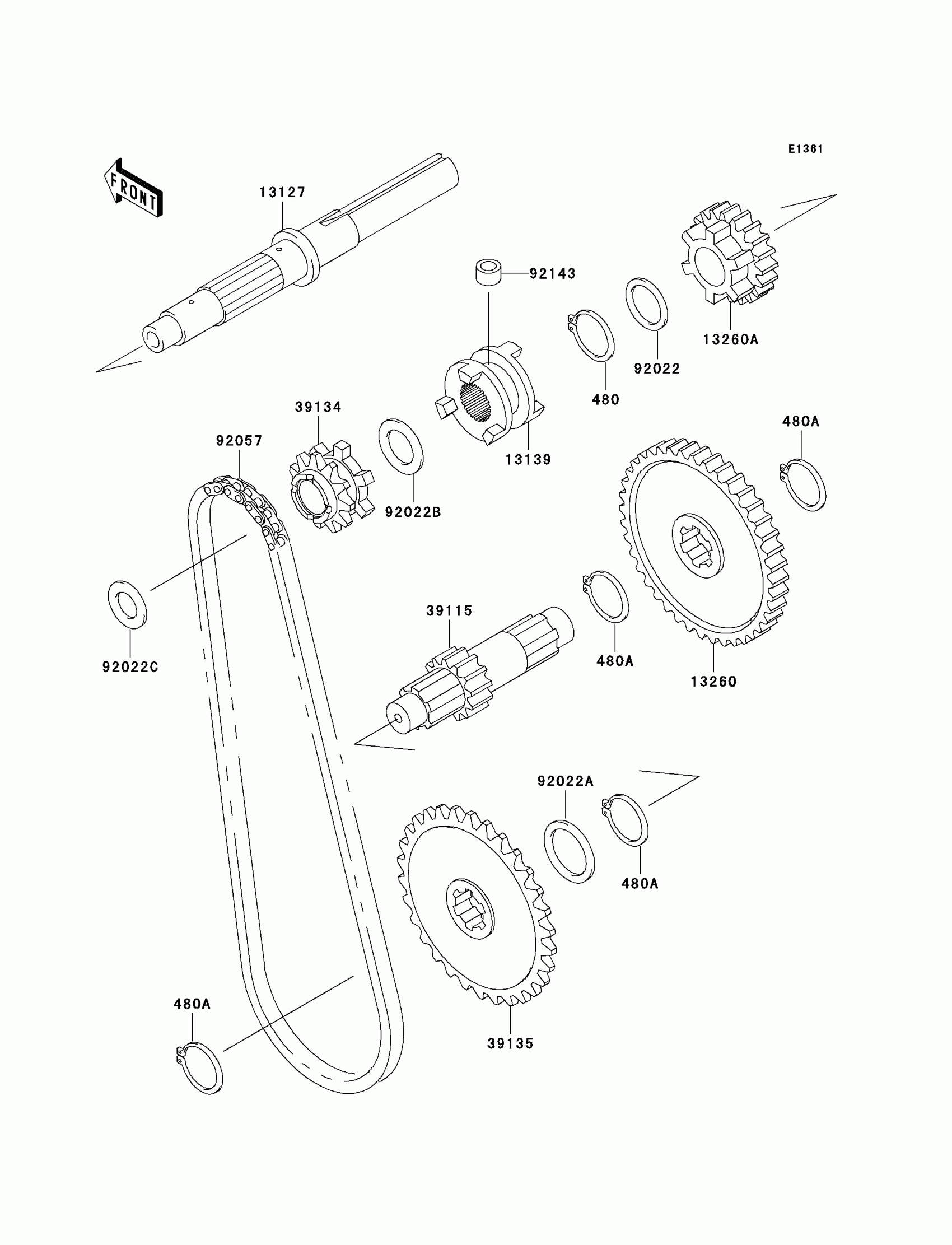

Kawasaki Mule 550 Transmission Diagram

Description

Price

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47

480A

CIRCLIP-TYPE-C,28MM

480J2800

$3.58

13127

SHAFT-TRANSMISSION INPUT

13127-1203

$227.35

13139

SHIFTER

13139-1070

$138.74

13260

GEAR,OUTPUT FORWARD,55T

13260-1152

$163.18

13260A

GEAR,INPUT FORWARD,24T

13260-1336

$145.91

39115

SHAFT,OUTPUT REDUCTION,13T

39115-1070

Unavailable

39134

SPROCKET-DRIVE,19T

39134-1054

$132.35

39135

GEAR,51T

39135-1053

$138.03

92022

WASHER,25.3X33X1

92022-1109

$4.50

92022A

WASHER,28.3X34X0.3

92022-1626

$24.46

92022B

WASHER,22.3X35X2.0

92022-1723

$10.92

92022C

WASHER,17.3X30X1.4

92022-270

$7.50

92057

CHAIN,REVERSE

92057-1349

$40.01

92143

COLLAR,8X14X10.5

92143-1497

$3.19
