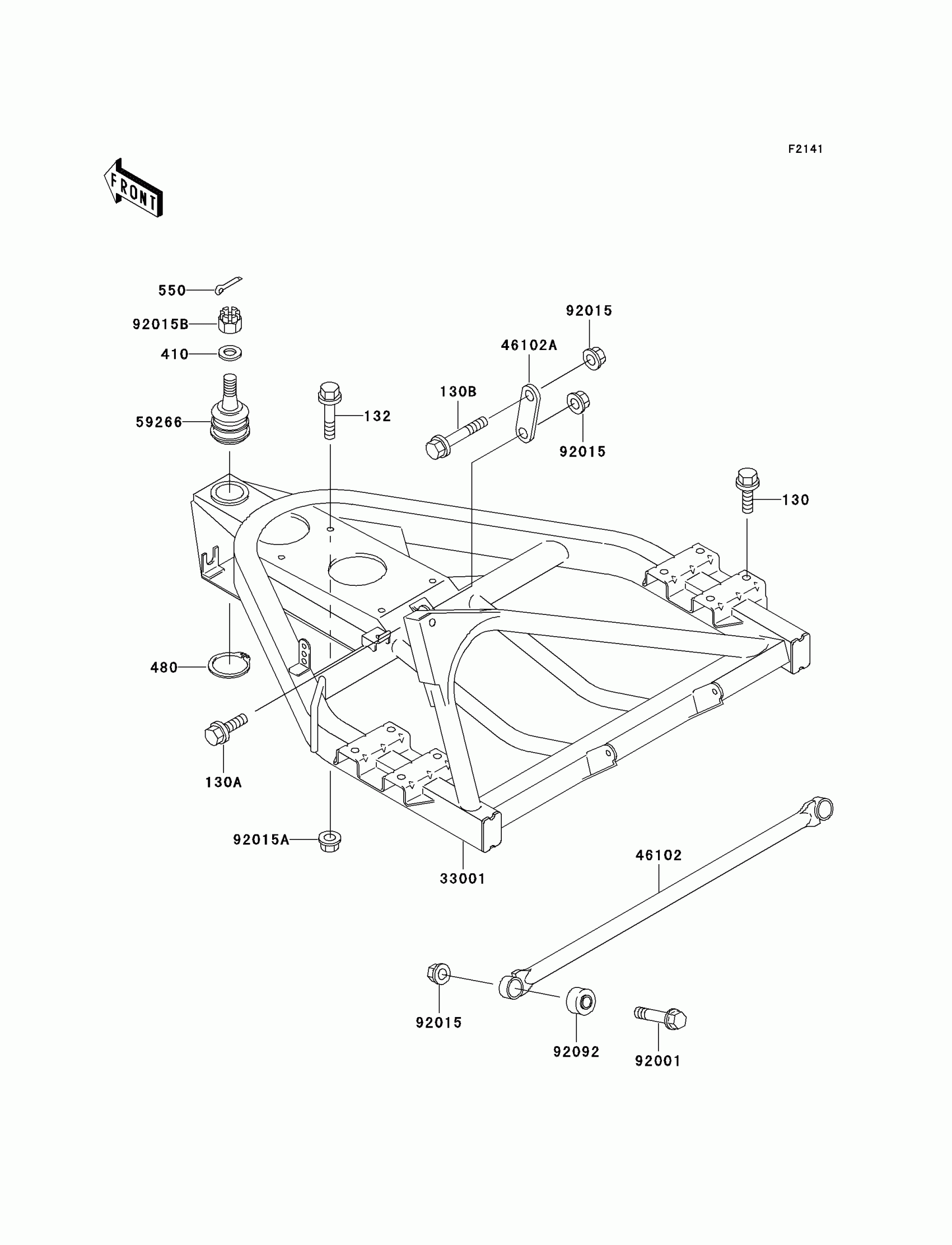

Kawasaki Mule 550 Swingarm Diagram

Description

Price

130

BOLT-FLANGED,10X16

130J1016

Unavailable

130A

BOLT-FLANGED,10X20

130J1020

Unavailable

130B

BOLT-FLANGED,10X55

130J1055

Unavailable

132

BOLT-FLANGED-SMALL

132G0835

Unavailable

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

480

CIRCLIP, 38MM

480J3800

$4.75

550

PIN,COTTER

550D3230

Unavailable

33001

ARM-COMP-SWING

33001-1373

$563.12

46102

ROD

46102-1297

$87.86

46102A

ROD

46102-1298

$8.83

59266

JOINT-BALL

59266-1087

$58.19

92001

BOLT,FLANGED,10X44

92001-1702

$9.59

92015

NUT,FLANGED,10MM

92015-1335

$1.85

92015A

NUT,8MM

92015-1432

$4.93

92015B

NUT,CASTLE,14MM

92015-1841

$6.39

92092

BUSHING-RUBBER

92092-1072

$9.31
