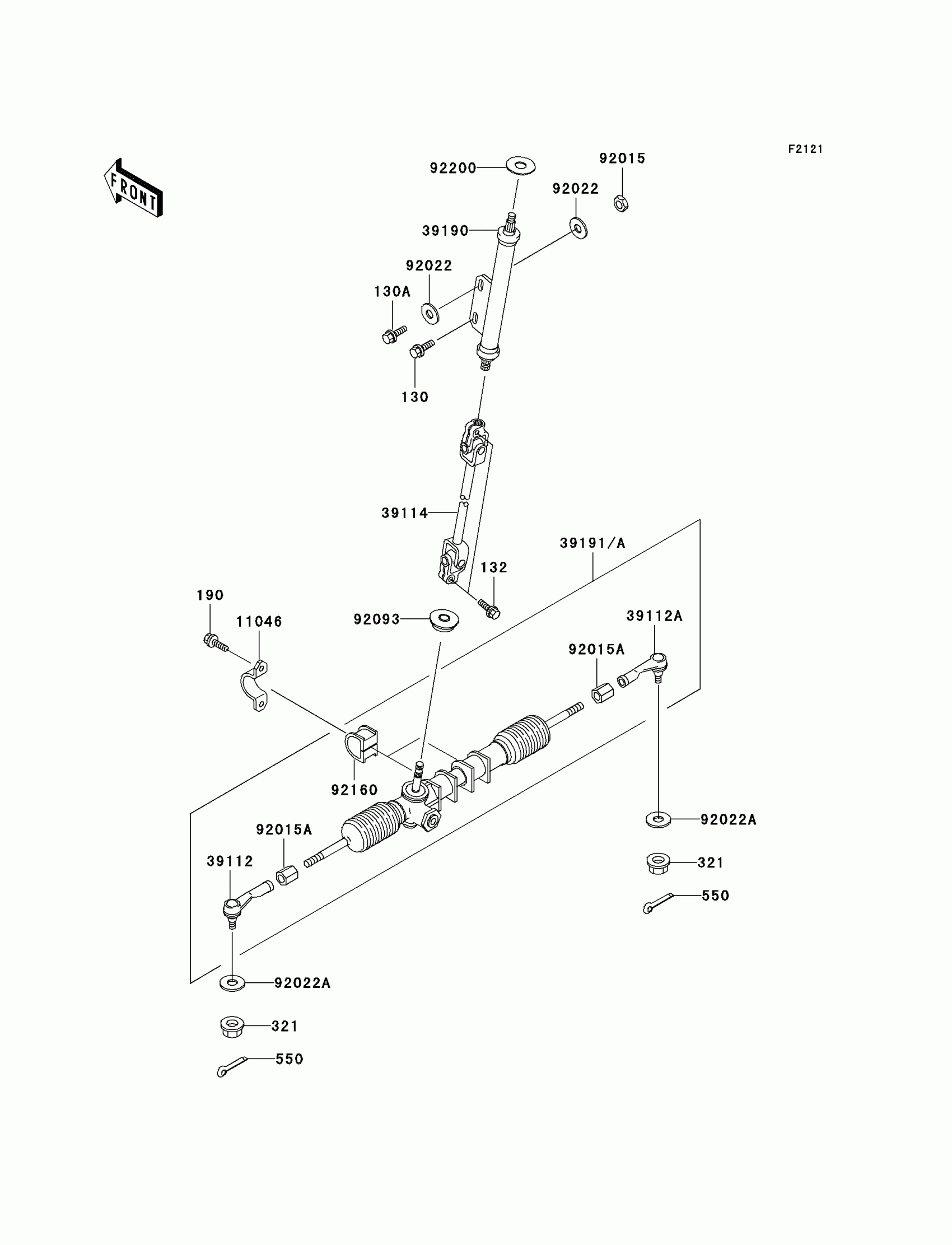

Kawasaki Mule 550 Steering Shaft Diagram

#

Description
Price

130

BOLT-FLANGED,10X25

130J1025

Unavailable

130A

BOLT-FLANGED,10X30

130J1030

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

190

BOLT-UPSET-WS

190H1025

Unavailable

321

NUT-CASTLE

321H1000

Unavailable

550

PIN-COTTER,2.0X22

550D2022

$1.80

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$85.03

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$85.03

39114

SHAFT-COMP-STRG

39114-1070

$326.29

39190

SHAFT-ASSY-STEERING

39190-1003

$236.68

39191

GEAR-ASSY-STEERING

39191-1006

$1,037.96

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT

92015-1864

$13.66

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92022A

WASHER,10.5X18X2.5

92022-1876

$3.81

92093

SEAL

92093-1313

$7.17

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92200

WASHER,15X45X0.6

92200-1130

$3.95
