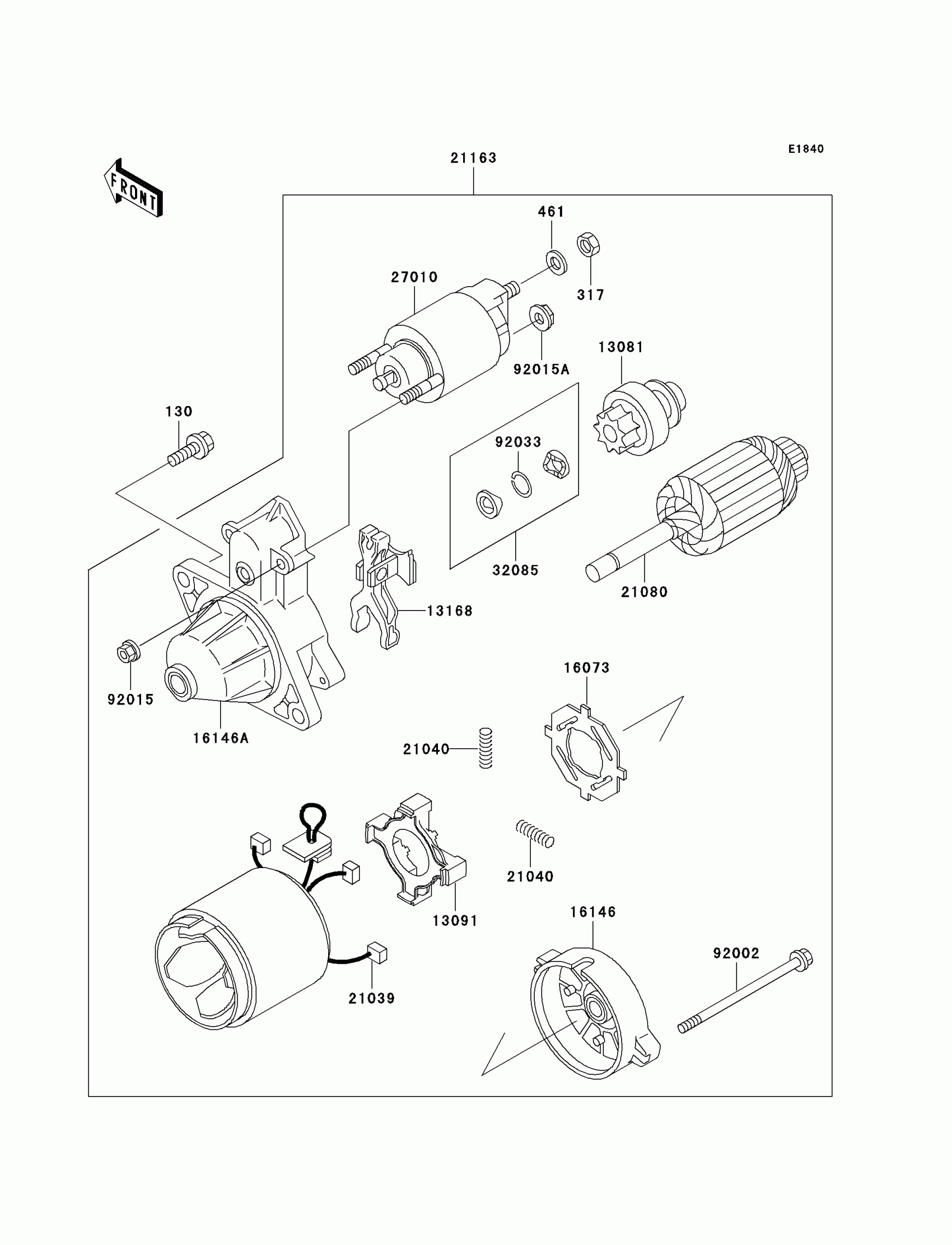

Kawasaki Mule 550 Starter Motor Diagram

Description

Price

130

BOLT-FLANGED,8X25

130G0825

Unavailable

317

NUT-HEX-SMALL,8MM

317B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

13081

CLUTCH-ASSY

13081-2164

$97.53

13091

HOLDER,BRUSH

13091-2068

$24.75

13168

LEVER,SHIFT

13168-2148

$19.24

16073

INSULATOR

16073-2098

$8.47

16146

COVER-ASSY,RR

16146-2164

$64.24

16146A

COVER-ASSY,FR

16146-2191

$107.41

21039

BRUSH

21039-2059

$13.14

21040

SPRING-BRUSH

21040-2052

$3.05

21080

ARMATURE

21080-2064

$198.19

21163

STARTER-ELECTRIC

21163-2109

Unavailable

27010

SWITCH

27010-2122

Unavailable

32085

STOPPER

32085-2097

$13.22

92002

BOLT

92002-2277

$10.05

92015

NUT

92015-2146

$1.27

92015A

NUT

92015-2147

$2.29

92033

RING-SNAP

92033-2081

$3.42
