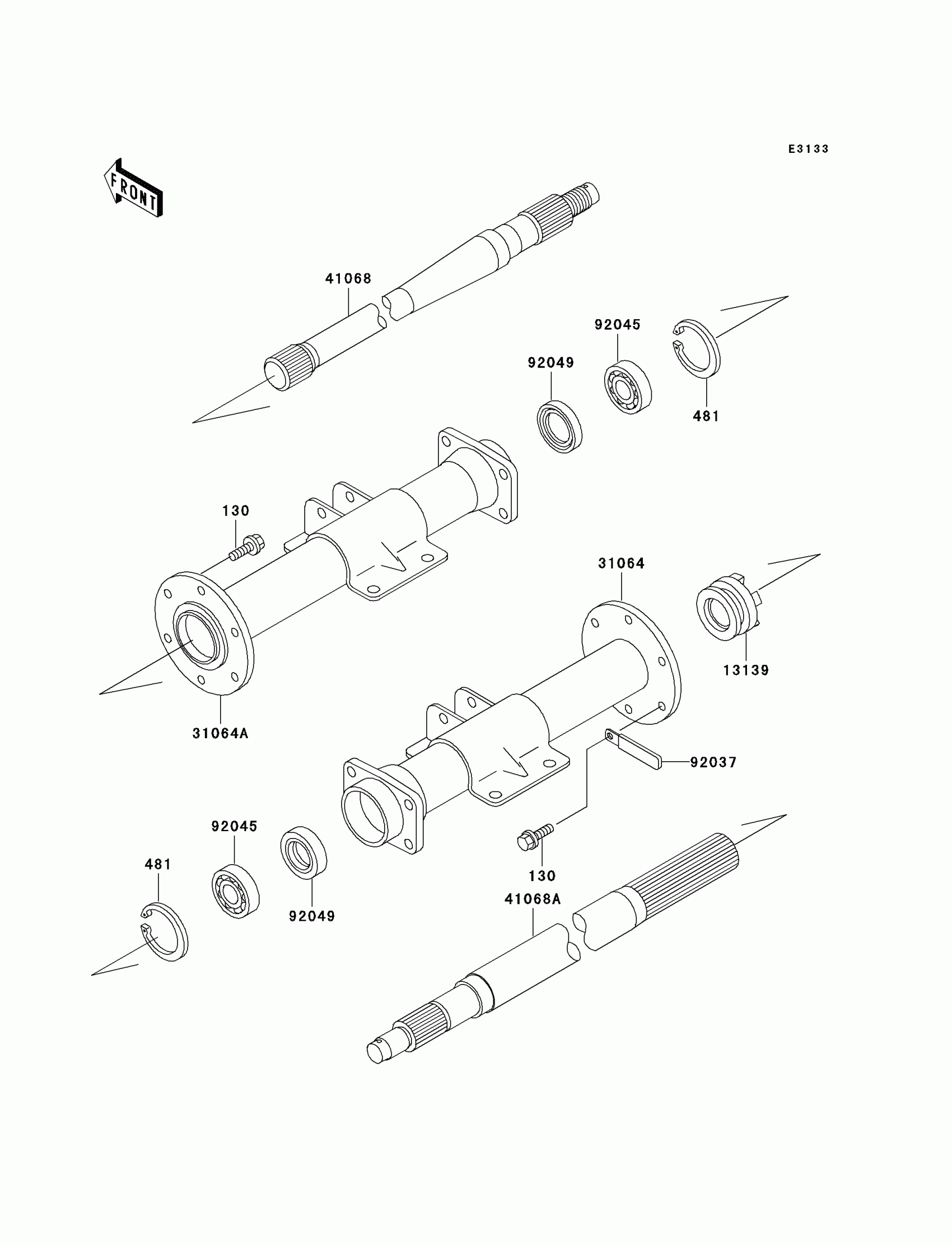

Kawasaki Mule 550 Rear Axle Diagram

#

Description
Price

130

BOLT-FLANGED,8X25

130H0825

Unavailable

481

CIRCLIP-TYPE-C,52MM

481J5200

$3.72

13139

SHIFTER

13139-1071

Unavailable

31064

PIPE-COMP,LH

31064-1118

Unavailable

31064A

PIPE-COMP,RH

31064-1119

$718.67

41068

AXLE,RH

41068-1245

$320.61

41068A

AXLE,LH

41068-1324

Unavailable

92037

CLAMP

92037-113

$4.83

92045

BEARING-BALL,6205DDU

92045-1229

$29.93

92049

SEAL-OIL,SO30428

92049-1236

$6.72
