Description

Price

130

BOLT-FLANGED,8X30

130H0830

Unavailable

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

130B

BOLT-FLANGED,8X20

130J0820

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

11051

BRACKET,GENERATOR,UPP

11051-1359

$325.51

11051A

BRACKET,GENERATOR,LWR

11051-1360

$242.92

14090

COVER,FUSE

14090-1362

$17.92

14091

COVER,PULLEY BELT

14091-1141

$482.76

21001

GENERATOR

21001-1129

$837.52

26004

FUSE-ASSY,50A

26004-1096

$4.29

26011

WIRE-LEAD,GENERATOR

26011-1586

$92.59

49079

PULLEY-BELT

49079-1060

$171.03

55020

GUARD,FLYWHEEL SIDE

55020-2070

$17.08

59011

BELT

59011-1064

$25.27

92001

BOLT,BLACK,10X47

92001-1522

$5.42

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92072

BAND,L=123

92072-030

$3.81

92143

COLLAR

92143-1046

$4.42

99995

KIT.,ALTERNATOR

99995-1472

$995.32

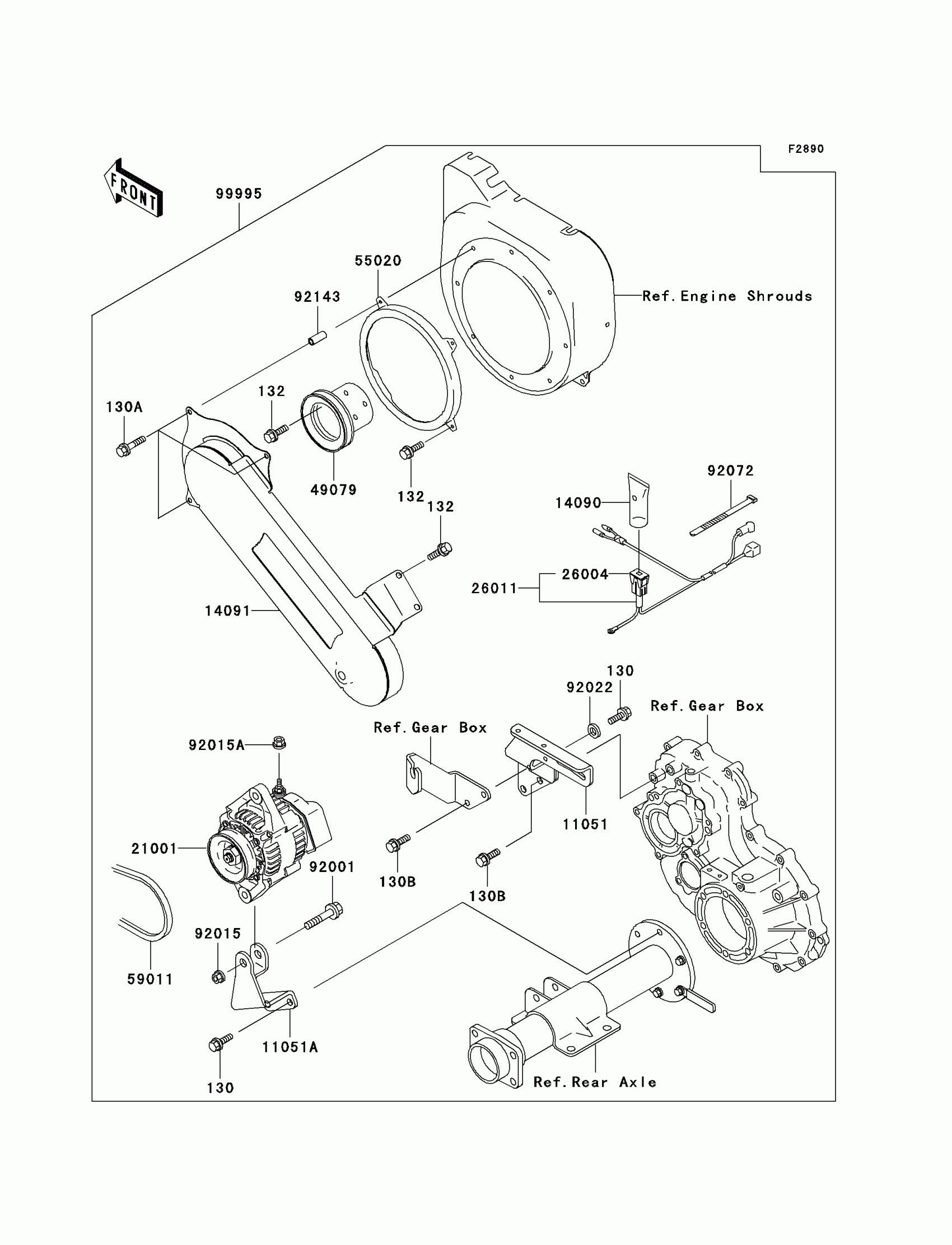

Kawasaki Mule 550 Optional Parts Diagram

BOLT-FLANGED,8X30

BOLT-FLANGED,6X35

BOLT-FLANGED,8X20

BOLT-FLANGED-SMALL,6X12

BRACKET,GENERATOR,UPP

BRACKET,GENERATOR,LWR

COVER,FUSE

COVER,PULLEY BELT

GENERATOR

FUSE-ASSY,50A

WIRE-LEAD,GENERATOR

PULLEY-BELT

GUARD,FLYWHEEL SIDE

BELT

BOLT,BLACK,10X47

NUT,LOCK,10MM,BLACK

NUT,FLANGED,6MM

WASHER,8.5X20X1.6,BLACK

BAND,L=123

COLLAR

KIT.,ALTERNATOR
