2007 Kawasaki Mule 550 Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2007 Kawasaki Mule 550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

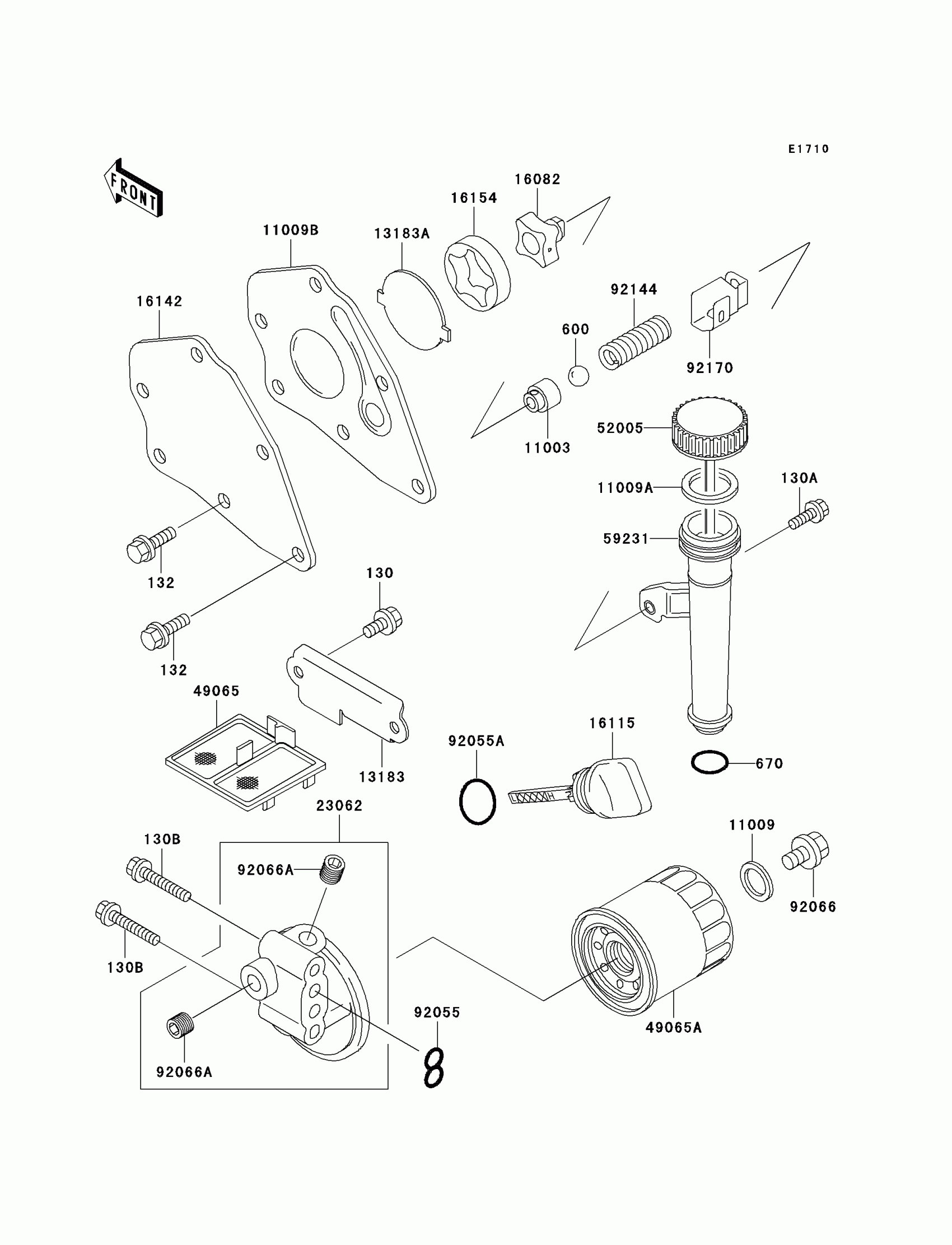

2007 Kawasaki Mule 550 Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X8

130B0508

1
Out of stock

130A

BOLT-FLANGED,6X16

130B0616

1
Out of stock

130B

BOLT-FLANGED,6X40

130G0640

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

600

BALL-STEEL,5/16

600A1000

1

$0.76

In stock

670

O RING,16MM

670D2016

1

$1.44

In stock

11003

SEAT-VALVE

11003-2089

1

$5.56

In stock

11009

GASKET

11009-2175

1

$1.05

In stock

11009A

GASKET,OIL GAUGE

11009-2346

1

$1.61

In stock

11009B

GASKET,OIL PUMP

11009-2828

1

$5.15

In stock

13183

PLATE,OIL FILTER

13183-2295

1

$1.32

In stock

13183A

PLATE,OIL PUMP

13183-2298

1

$1.46

In stock

16082

PUMP-ASSY-OIL

16082-2062

1

$24.09

In stock

16115

CAP-OIL FILLER

16115-2079

1

$3.87

In stock

16142

COVER-PUMP

16142-2062

1

$4.64

In stock

16154

ROTOR-PUMP,OUT

16154-2054

1

$6.57

In stock

23062

BRACKET-COMP

23062-6004

1

$51.44

In stock

49065

FILTER-OIL

49065-2068

1

$5.67

In stock

49065A

FILTER-OIL

49065-2071

1

$11.42

In stock

52005

GAUGE

52005-2113

1

$11.59

In stock

59231

FILLER

59231-2072

1

$5.07

In stock

92055

RING-O

92055-2063

1

$2.90

In stock

92055A

RING-O,20X3

92055-2185

1

$0.97

In stock

92066

PLUG

92066-2203

1
Out of stock

92066A

PLUG

92066-2211

1

$1.56

In stock

92144

SPRING

92144-2202

1

$1.39

In stock

92170

CLAMP

92170-2018

1

$1.71

In stock
