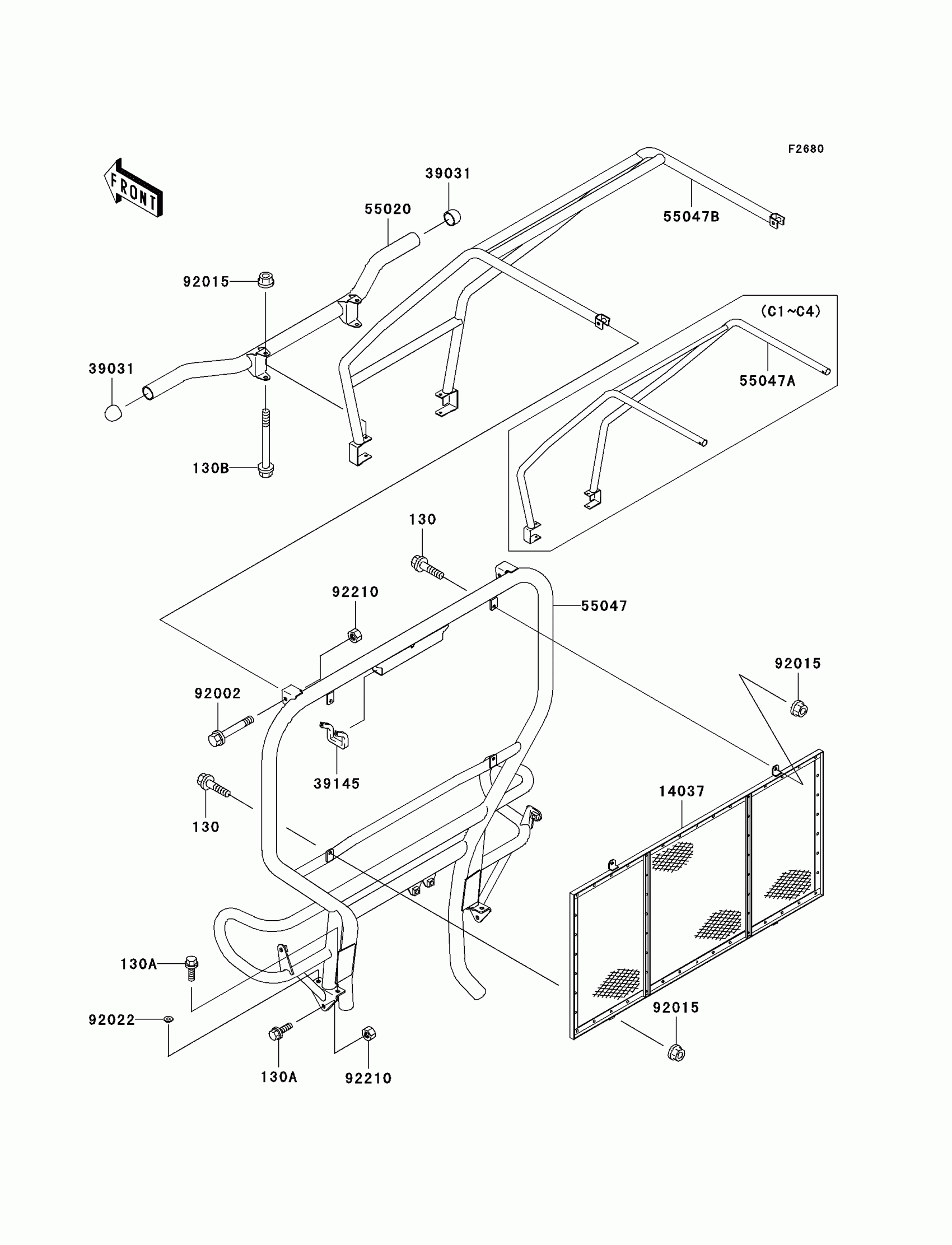

Kawasaki Mule 550 Guard(s) Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

Unavailable

130A

BOLT-FLANGED,10X20

130J1020

Unavailable

130B

BOLT-FLANGED

130S08100

Unavailable

14037

SCREEN,BAR COMP,RR

14037-1230

$177.44

39031

CAP-END,BUMPER PIPE

39031-1059

$7.28

39145

TRIM-SEAL,L=140

39145-1105

$3.47

55020

GUARD,FRONT BUMPER

55020-1576

$172.48

55047

BAR-COMP,RR

55047-1009

$226.03

55047A

BAR-COMP,FR

55047-1010

$164.97

92002

BOLT,10X55

92002-1127

$9.27

92015

NUT,FLANGED,LOCK,8MM

92015-1696

$3.55

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92210

NUT,LOCK,10MM

92210-1204

$3.29
