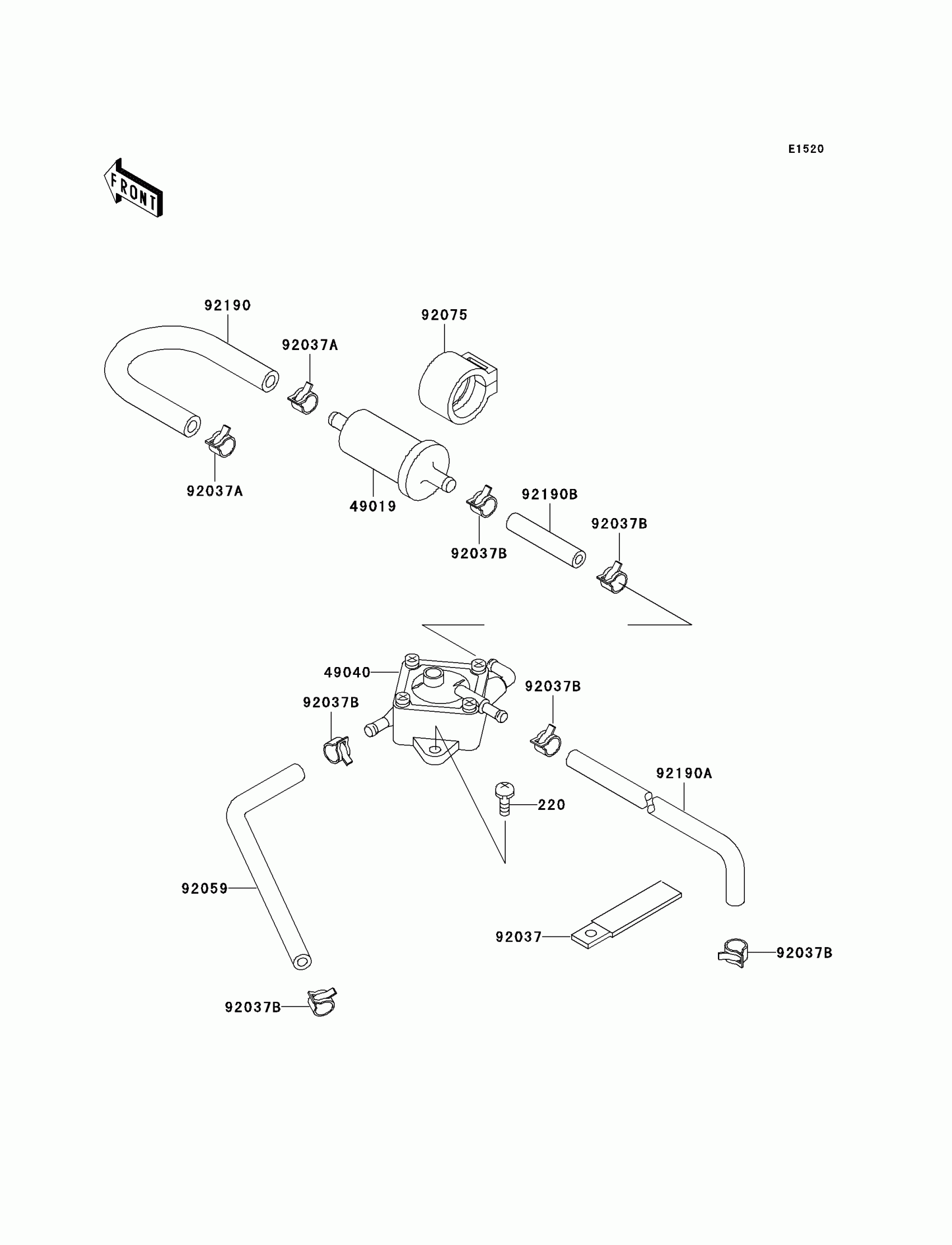

Kawasaki Mule 550 Fuel Pump Diagram

#

Description
Price

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

49019

FILTER-FUEL

49019-1055

$18.12

49040

PUMP-FUEL

49040-2067

$61.54

92037

CLAMP

92037-113

$4.83

92037A

CLAMP,HOSE CLIP

92037-1181

$2.31

92037B

CLAMP,TUBE

92037-1505

$3.63

92059

TUBE,6.5X11.5X215

92059-1295

$6.94

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92190

TUBE,7.5X3.5X200

92190-1104

$38.64

92190A

TUBE

92190-1179

$13.80

92190B

TUBE,5.8X10.8X55

92190-1180

$4.19
