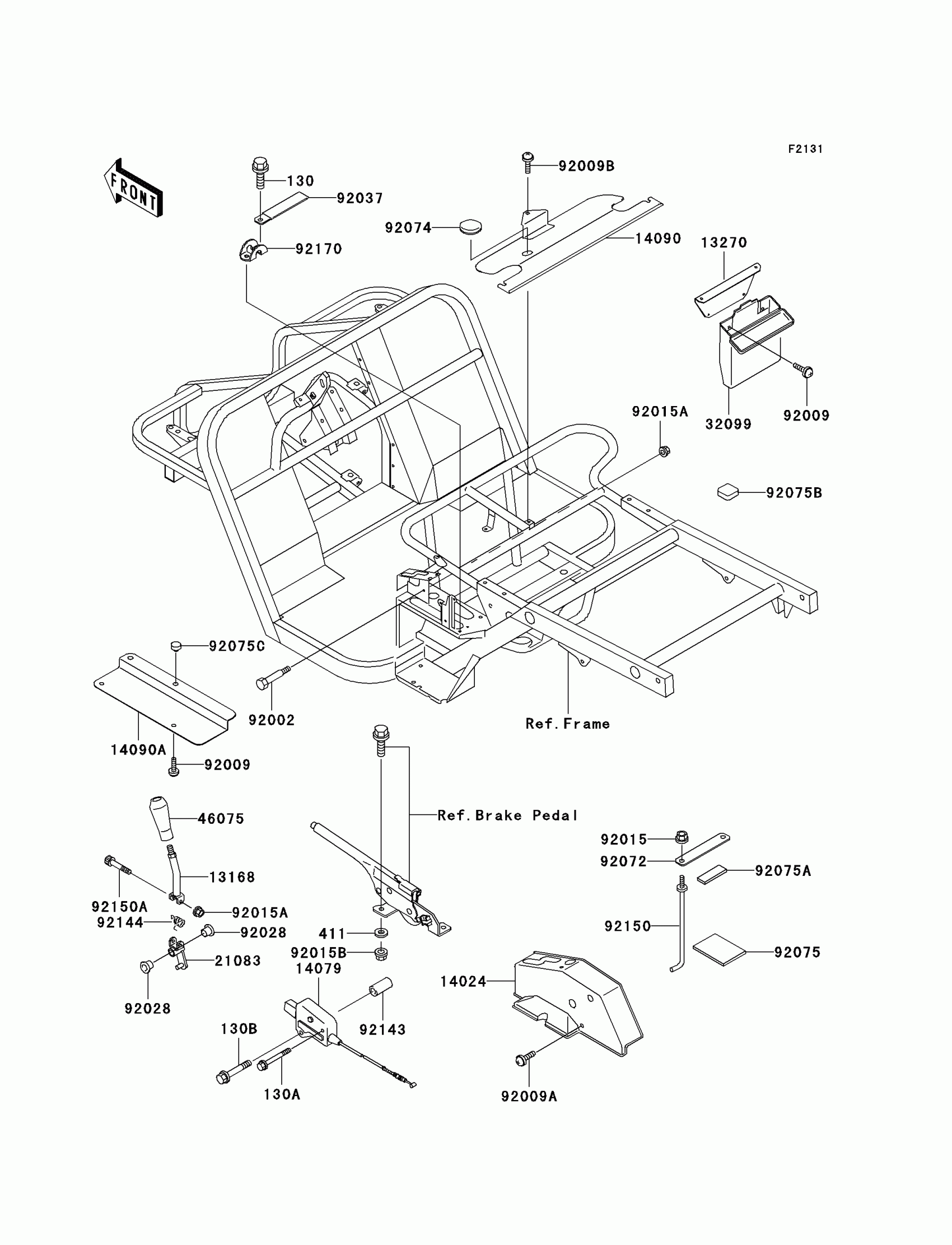

Kawasaki Mule 550 Frame Fittings Diagram

#

Description
Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X50,BLACK

130J0650

Unavailable

130B

BOLT-FLANGED,8X50

130J0850

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

13168

LEVER,SHIFT

13168-1534

$46.75

13270

PLATE,MANUAL BOX

13270-1698

$14.00

14024

COVER,SHIFT&BATTERY

14024-1985

$124.68

14079

HOLDER-ASSY,DIFF LOCK

14079-1112

$159.56

14090

COVER,SEAT

14090-1120

$323.43

14090A

COVER,FRONT UNDER

14090-1744

$28.49

21083

ARM,SHIFT LEVER

21083-1091

$41.51

32099

CASE,TOOL

32099-1039

$45.33

46075

GRIP,SHIFT LEVER

46075-1075

Unavailable

92002

BOLT

92002-1984

$9.40

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X14

92009-1288

$2.99

92009B

SCREW,6X10

92009-1402

$1.67

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015B

NUT,FLANGED,LOCK,8MM

92015-1696

$3.53

92028

BUSHING

92028-1507

$5.25

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92072

BAND,BATTERY

92072-1233

Unavailable

92074

PLUG CHAIN CASE

92074-004

$5.18

92075

DAMPER

92075-1076

$8.86

92075A

DAMPER

92075-1214

$4.39

92075B

DAMPER

92075-1882

$8.10

92075C

DAMPER,9X24X14

92075-281

$6.22

92143

COLLAR,11.3X15.9X36

92143-1162

$5.72

92144

SPRING

92144-1175

Unavailable

92150

BOLT,BATTERY

92150-1293

$10.65

92150A

BOLT,SOCKET,6X35

92150-1393

$7.91

92170

CLAMP,SHIFT CABLE

92170-1210

Unavailable
