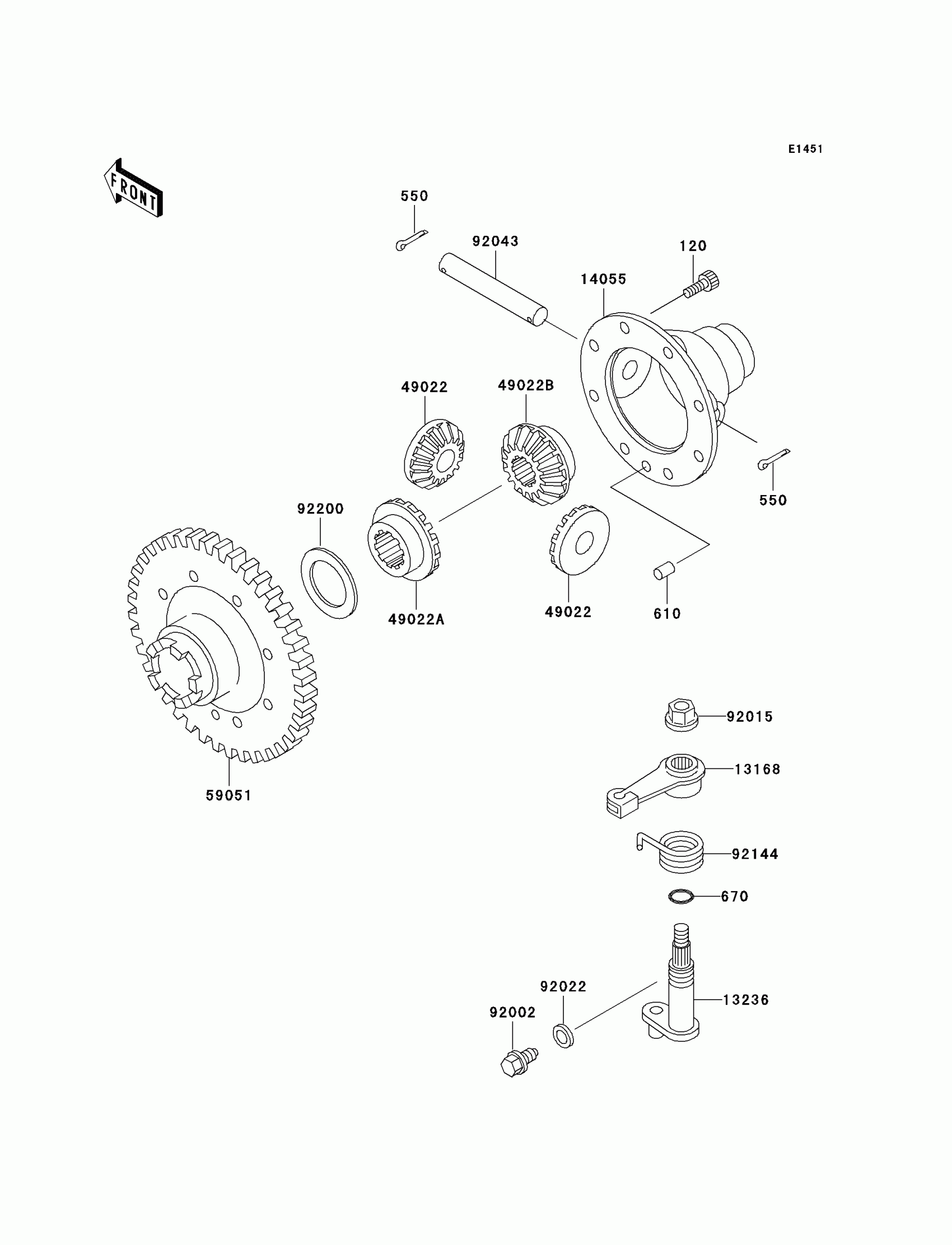

Kawasaki Mule 550 Differential Diagram

Description

Price

120

BOLT-SOCKET,8X20

120P0820

Unavailable

550

PIN-COTTER,2.5X20

550D2520

$1.05

610

PIN-DOWEL,8X12

610A0812

$3.20

670

O RING,10MM

670B2010

$1.13

13168

LEVER,DIFF LOCK

13168-1523

$21.32

13236

LEVER-COMP,DIFF LOCK

13236-1219

$22.66

14055

CASE-GEAR,DIFFERENTIAL

14055-1098

$391.47

49022

GEAR-BEVEL,10T

49022-1105

$75.82

49022A

GEAR-BEVEL,16T

49022-1117

$137.57

49022B

GEAR-BEVEL,16T

49022-1120

$156.90

59051

GEAR,DIFFERENTIAL,67T

59051-1239

Unavailable

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$2.99

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92043

PIN,BEVEL GEAR

92043-1458

$17.90

92144

SPRING,LOCK LEVER

92144-1198

Unavailable

92200

WASHER

92200-1077

$3.75
