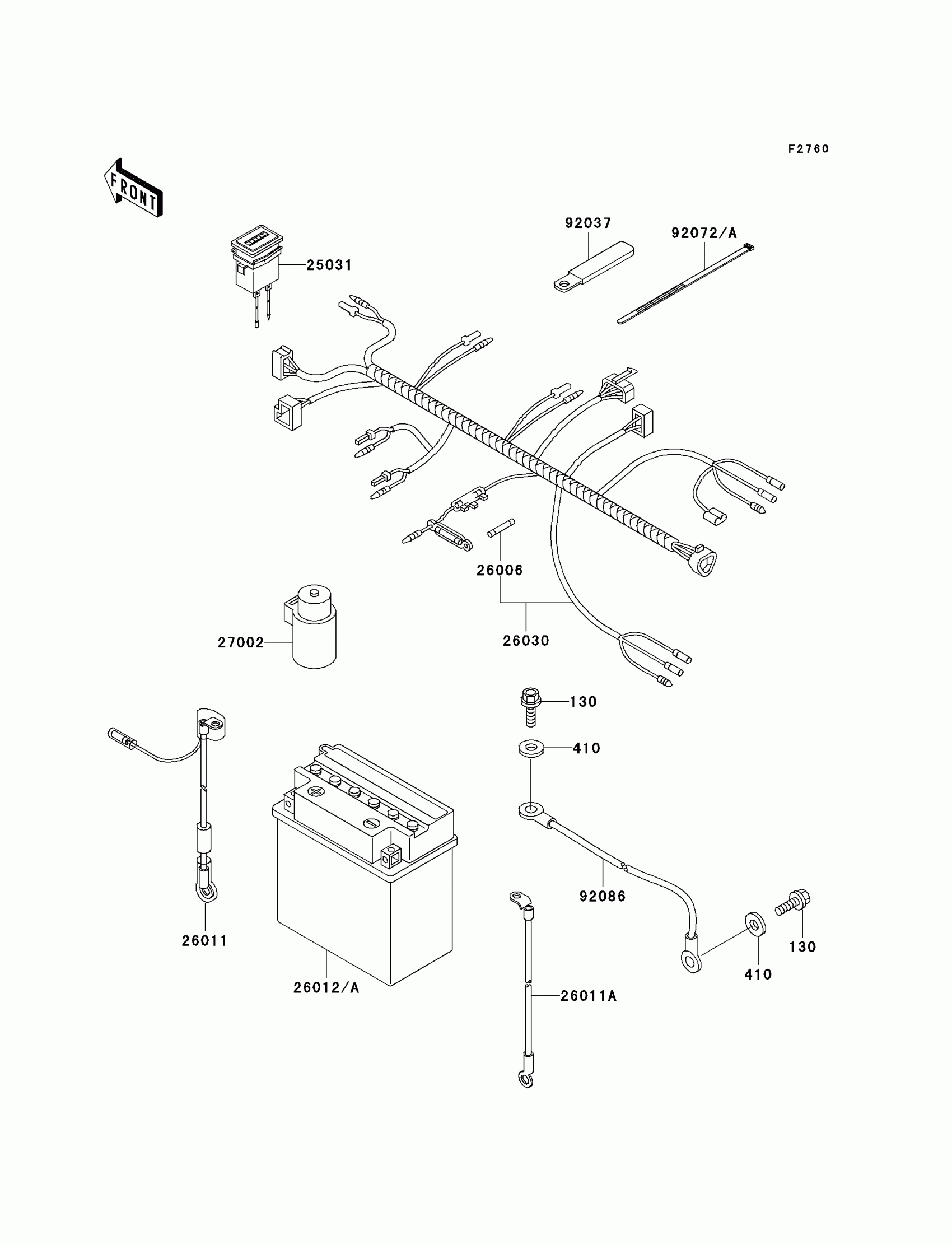

Kawasaki Mule 550 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,8X20

130J0820

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

25031

METER-ASSY,HOUR

25031-1013

$104.86

26006

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26011

WIRE-LEAD,BATTERY(+)

26011-1486

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1494

$33.98

26012

BATTERY,12V 14AH,YB14A-A2

26012-1269

$102.11

26030

HARNESS

26030-1469

Unavailable

27002

RELAY-ASSY

27002-1051

$48.39

92037

CLAMP

92037-113

$4.83

92072

BAND,L=149

92072-031

$3.81

92072A

BAND,L=188

92072-1239

$1.30

92086

WIRE

92086-1054

$24.59
