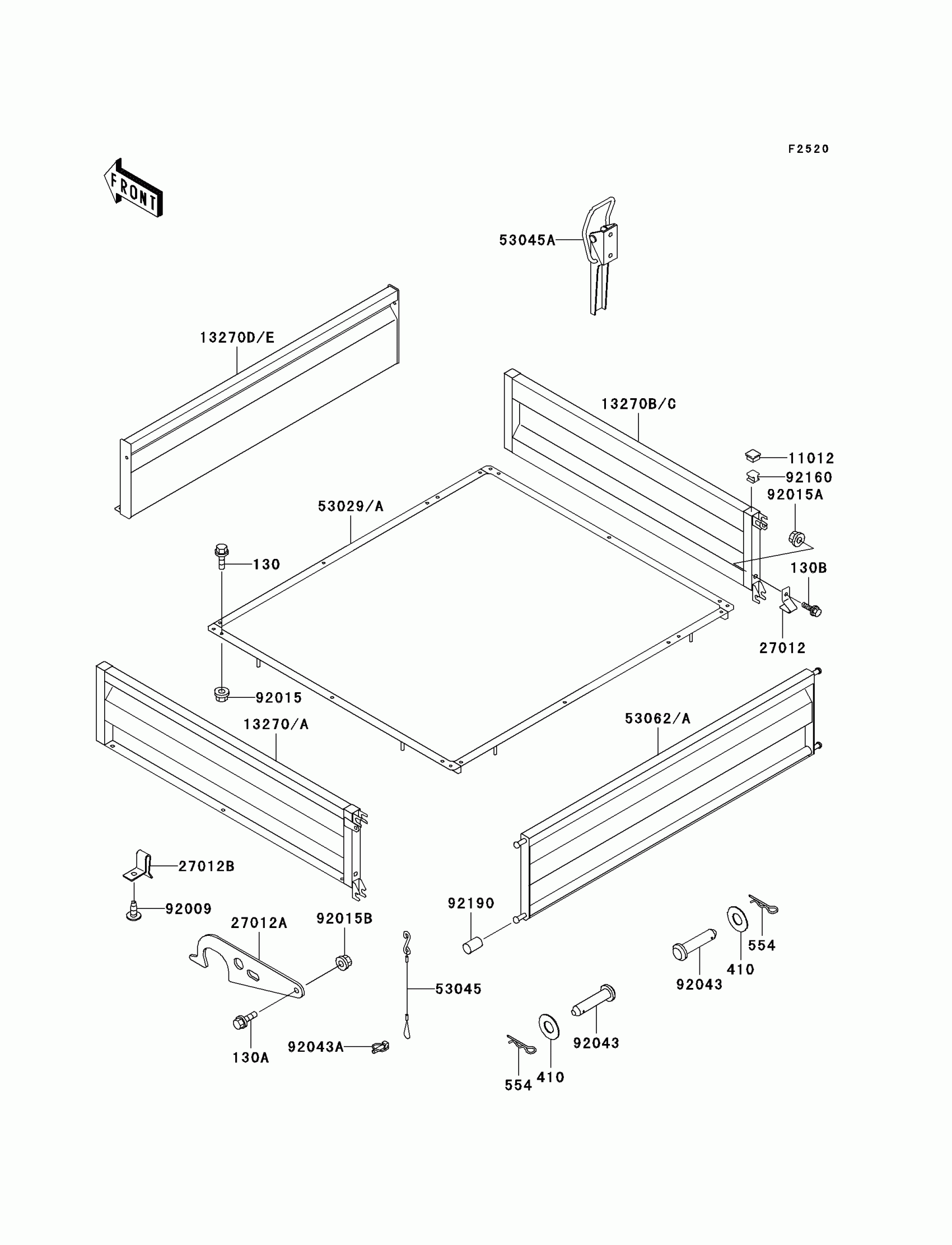

Kawasaki Mule 550 Carrier(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,6X40

130J0640

Unavailable

130B

BOLT-FLANGED,8X50

130J0850

Unavailable

410

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

554

PIN-SNAP,12MM

554A1200

Unavailable

11012

CAP

11012-1784

$4.74

13270

PLATE,CARRIER,SIDE,LH,F.RED

13270-1090-B1

$181.44

13270B

PLATE,CARRIER,SIDE,RH,F.RED

13270-1092-B1

$205.72

13270D

PLATE,CARRIER,FR,F.RED

13270-1677-B1

$164.54

27012

HOOK,TAIL GATE

27012-1406

$4.81

27012A

HOOK,CARRIER

27012-1444

$15.54

27012B

HOOK,CARRIER

27012-1445

$12.32

53029

CARRIER,F.RED

53029-1192-B1

Unavailable

53045

HOOK-ASSY,TALE GATE

53045-1060

$36.52

53045A

HOOK-ASSY

53045-1063

$18.86

53062

GATE-TAIL,F.RED

53062-1005-B1

$288.23

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,FLANGED,6MM,BLACK

92015-1386

Unavailable

92015A

NUT,FLANGED,8MM

92015-1408

$4.07

92015B

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92043

PIN,12X54

92043-1451

$9.42

92043A

PIN

92043-1490

$9.07

92160

DAMPER

92160-1191

Unavailable

92190

TUBE,8X10X15

92190-1467

$3.51
