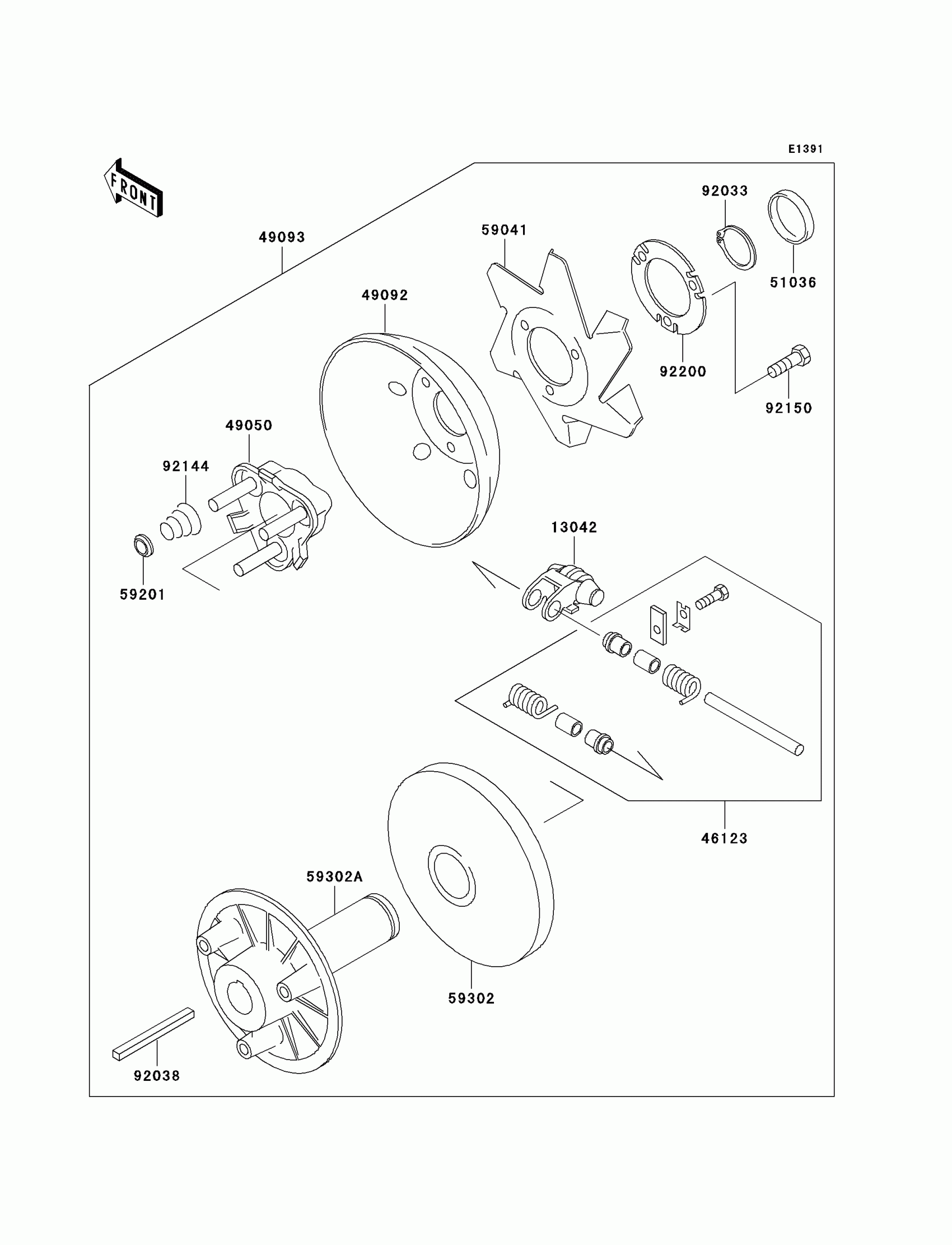

Kawasaki Mule 520 Drive Converter Diagram

Description

Price

13042

WEIGHT

13042-1080

$75.25

46123

SPRING-COMP

46123-1054

$161.67

49050

SPIDER

49050-1054

$125.45

49092

RAMP

49092-1054

$42.13

49093

CONVERTER-ASSY-DRIVE

49093-1056

$589.03

51036

CUP

51036-1057

$15.78

59041

FAN

59041-1056

$21.78

59201

BUMPER

59201-1054

$16.07

59302

SHEAVE-COMP,MOVABLE

59302-1057

$197.49

59302A

SHEAVE-COMP,FIXED

59302-1061

$171.03

92033

RING-SNAP

92033-1275

Unavailable

92038

KEY

92038-1054

$4.24

92144

SPRING

92144-1600

$13.16

92150

BOLT

92150-1445

$26.08

92200

WASHER

92200-1076

$26.08
