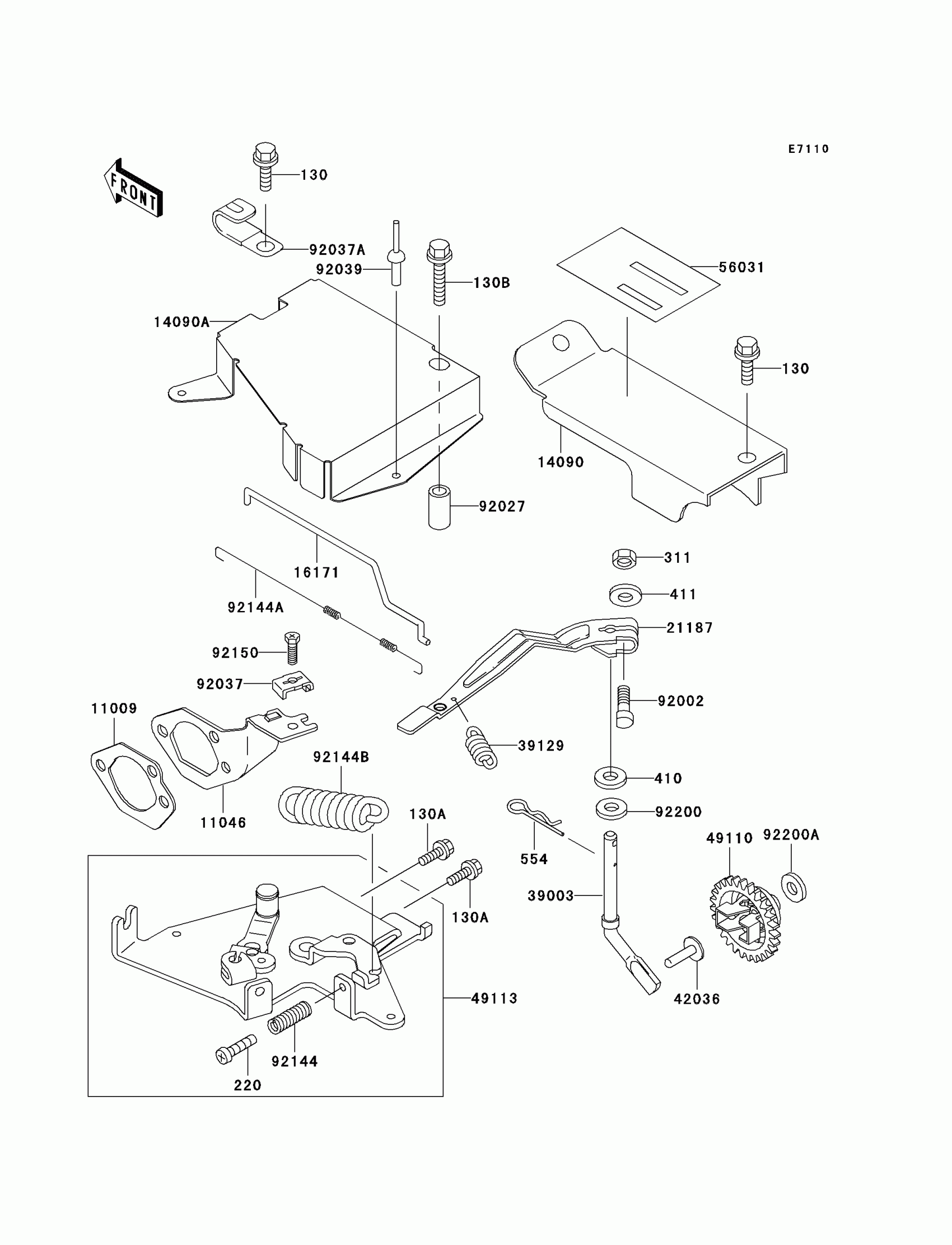

Kawasaki Mule 520 Control Diagram

#

Description
Price

130

BOLT-FLANGED,8X12

130B0812

Unavailable

130A

BOLT-FLANGED,6X12

130G0612

Unavailable

130B

BOLT-FLANGED,8X30

130J0830

Unavailable

220

SCREW PAN HEAD 5X22

220B0522

Unavailable

311

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

411

WASHER PLAIN 6MM

411B0600

Unavailable

554

PIN,SNAP

554A0600

Unavailable

11009

GASKET

11009-2925

$1.32

11046

BRACKET

11046-2102

$4.10

14090

COVER

14090-1141

$28.81

14090A

COVER

14090-1361

$23.85

16171

LINK,THROTTLE

16171-2061

$2.44

21187

ARM-ASSY

21187-2066

$10.71

39003

ARM-PIVOT

39003-2076

$6.76

39129

SPRING-GOVERNOR

39129-2093

$9.36

42036

SLEEVE

42036-2060

$2.28

49110

GOVERNOR-ASSY

49110-2069

$10.86

49113

PANEL-COMP-CONTROL

49113-2127

$38.50

56031

LABEL-MANUAL,OIL CAPACITY

56031-1790

$5.42

92002

BOLT,6X28

92002-2269

$1.05

92027

COLLAR

92027-1064

$12.95

92037

CLAMP

92037-2020

$1.15

92037A

CLAMP

92037-2098

$1.36

92039

RIVET,BLIND,4.0X9.2

92039-1163

$2.47

92144

SPRING

92144-2266

$3.52

92144A

SPRING

92144-2340

$3.58

92144B

SPRING

92144-2345

$5.39

92150

BOLT

92150-2182

$0.46

92200

WASHER,6.5X11.5X2.0

92200-2029

$0.73

92200A

WASHER,6.2X20X0.5

92200-2036

$1.07
