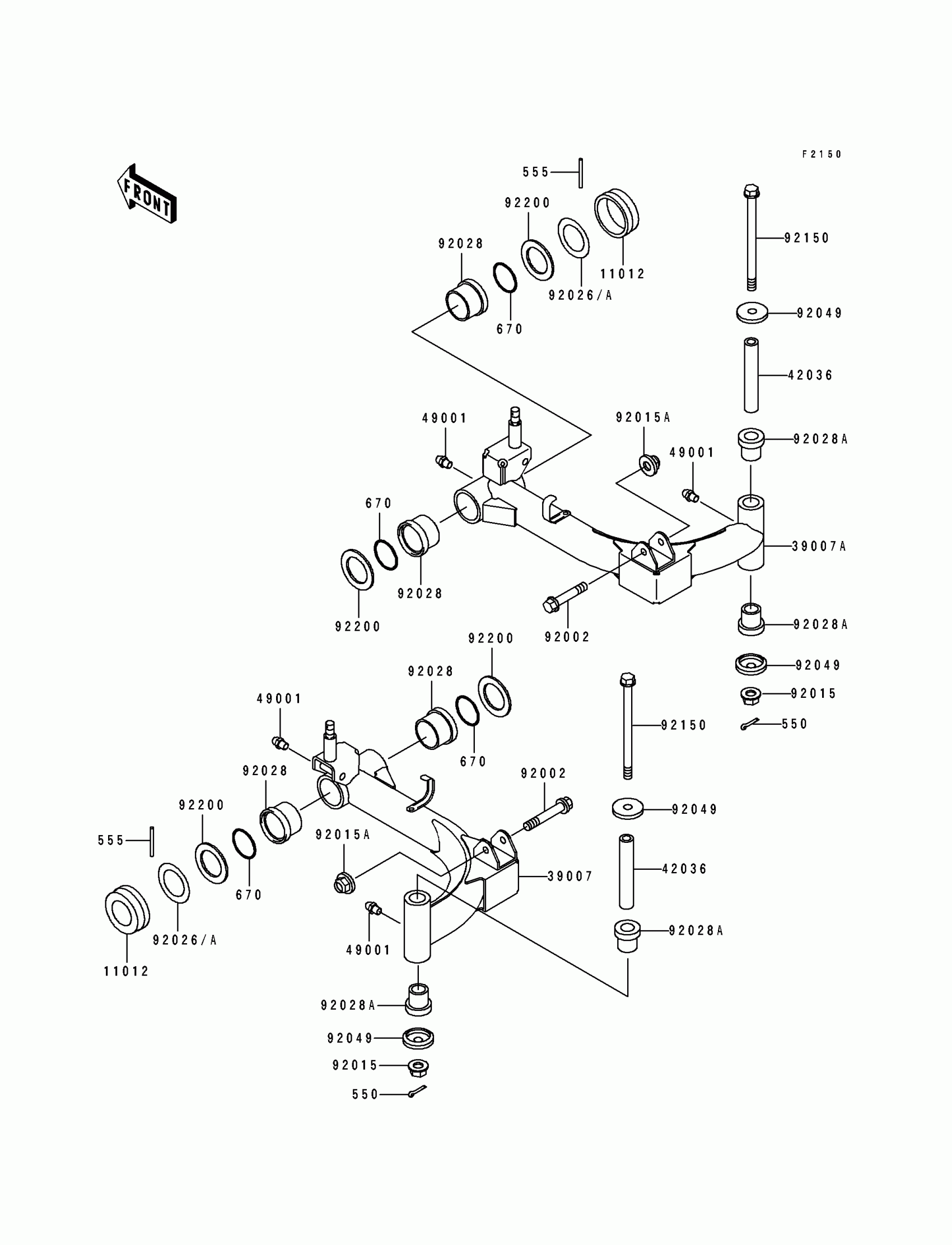

Kawasaki Mule 500 Suspension Diagram

#

Description
Price

11012

CAP

11012-1763

Unavailable

39007

ARM-SUSP,LH

39007-1198

Unavailable

39007A

ARM-SUSP,RH

39007-1199

Unavailable

42036

SLEEVE,12X20X120.6

42036-1277

$21.34

49001

NIPPLE-GREASE

49001-1051

$2.11

92002

BOLT,FLANGED,10X53.5

92002-1529

$8.20

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015A

NUT,LOCK,10MM

92015-1597

$4.18

92026

SPACER,42.5X64X1

92026-1405

Unavailable

92026A

SPACER,42.5X64X0.5

92026-1407

Unavailable

92028

BUSHING

92028-1619

$29.70

92028A

BUSHING

92028-1620

Unavailable

92049

SEAL-OIL

92049-1371

$7.89

92150

BOLT,FLANGED,12X170

92150-1437

Unavailable

92200

WASHER,42.5X64X3.2

92200-1069

Unavailable

550

PIN COTTER 2.0X25

550D2025

$2.44

555

PIN-SPRING,6X56

555A0656

Unavailable

670

O RING,42MM

670B3042

$4.92
