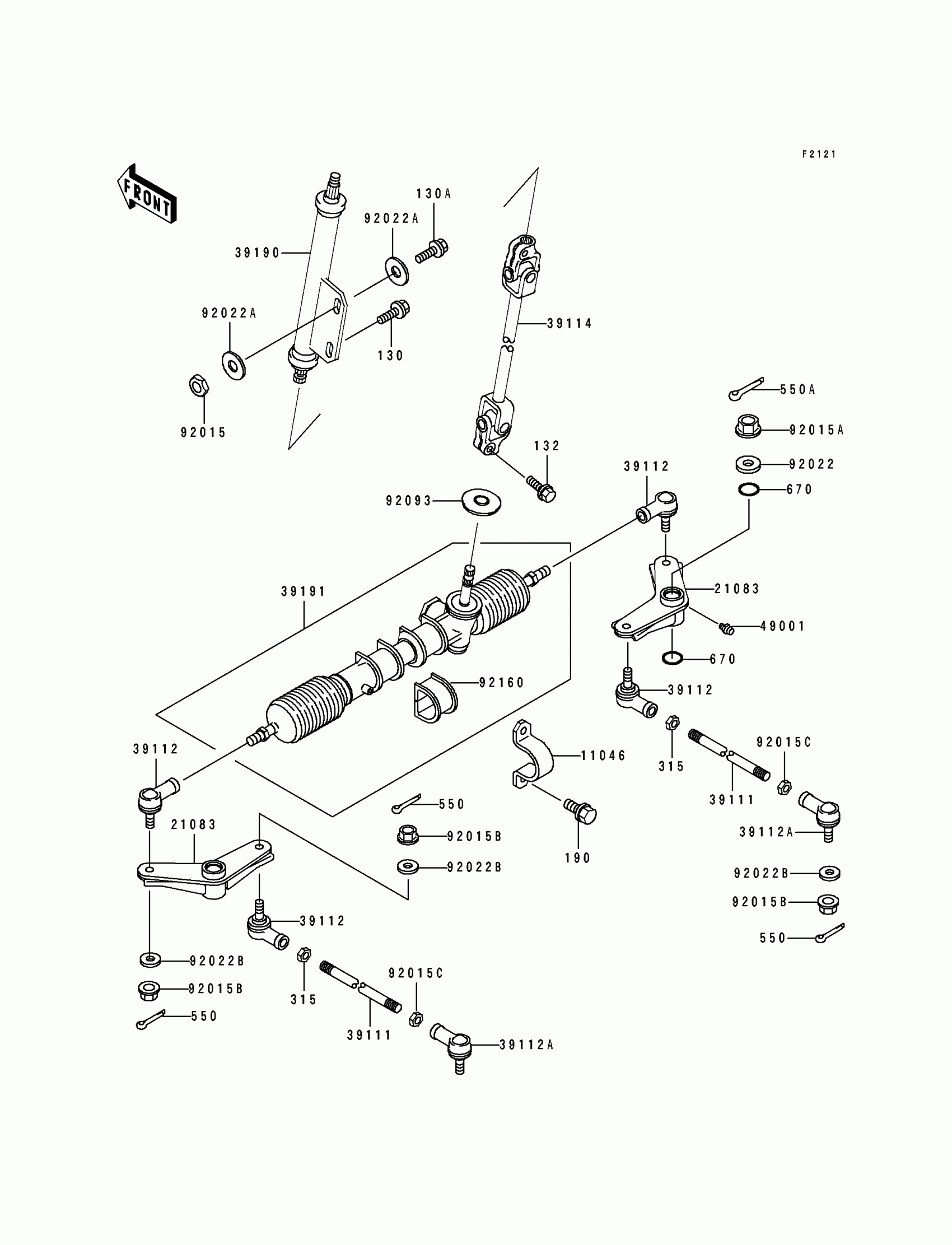

Kawasaki Mule 500 Steering Shaft Diagram

#

Description
Price

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

21083

ARM

21083-1088

Unavailable

39111

ROD-TIE

39111-1112

Unavailable

39112

RODEND-TIE,RIGHT SCREW

39112-1065

$94.10

39112A

RODEND-TIE,LEFT SCREW

39112-1066

Unavailable

39114

SHAFT-COMP-STRG

39114-1070

$326.29

39190

SHAFT-ASSY-STEERING

39190-1003

$236.68

39191

GEAR-ASSY-STEERING

39191-1003

Unavailable

49001

NIPPLE-GREASE

49001-1051

$2.11

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92015B

NUT,FLANGED,10MM

92015-1502

$7.83

92015C

NUT,12MM,LEFT SCREW

92015-1532

Unavailable

92022

WASHER,12.4X28X4.5

92022-1196

$4.59

92022A

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92022B

WASHER,10.5X18X1.6

92022-1539

$0.44

92093

SEAL

92093-1313

$7.17

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

130

BOLT-FLANGED,10X25

130J1025

Unavailable

130A

BOLT-FLANGED,10X30

130J1030

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

190

BOLT-UPSET-WS

190H1025

Unavailable

315

NUT-HEX-FINE

315C1200

Unavailable

550

PIN-COTTER,2.5X20

550D2520

$1.05

550A

PIN-COTTER,4.0X20

550D4020

$2.00

670

O RING,18MM

670B2018

$1.08
