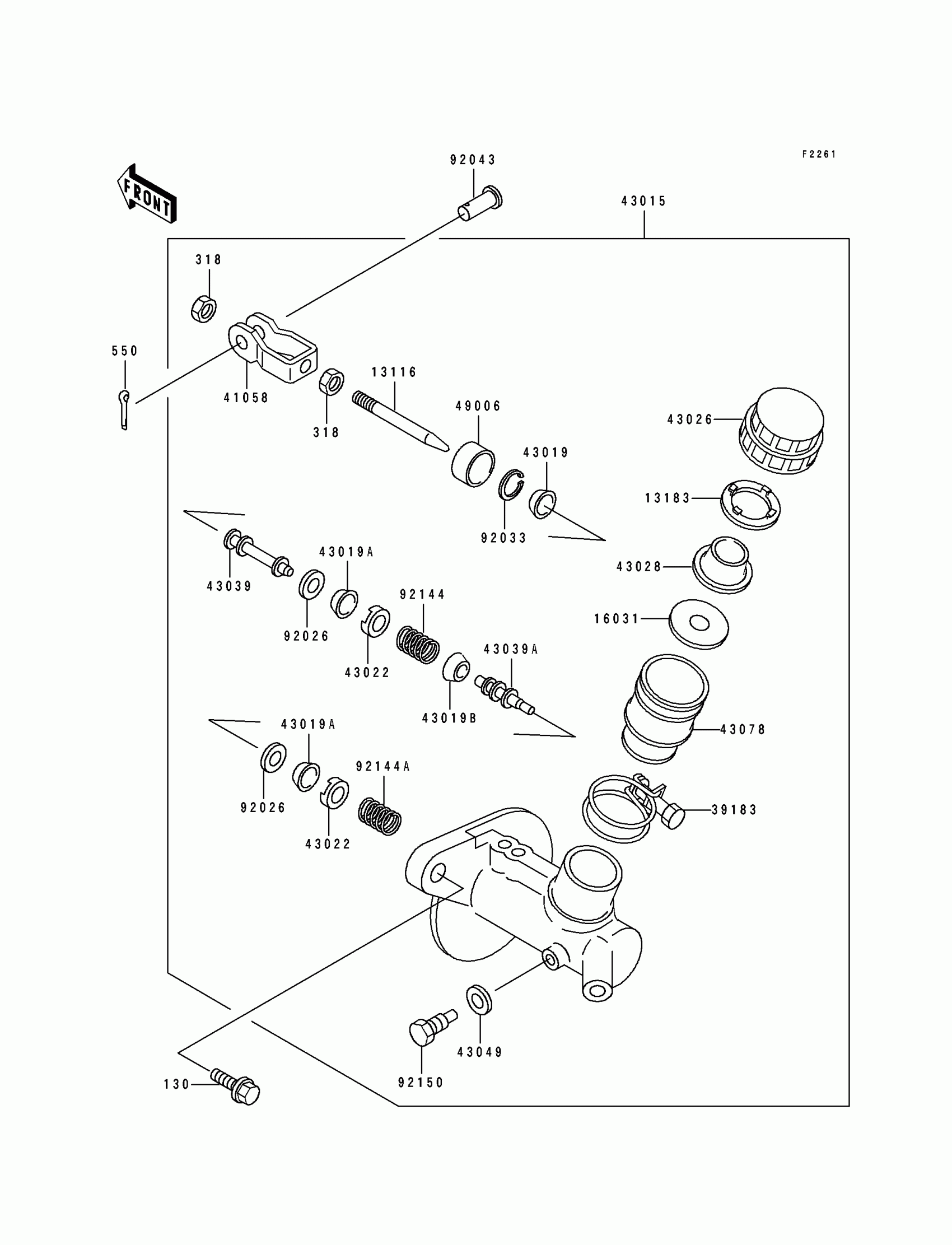

Kawasaki Mule 500 Master Cylinder Diagram

#

Description
Price

13116

ROD-PUSH

13116-1134

$34.29

13183

PLATE

13183-1306

$3.92

16031

FLOAT

16031-1069

$7.47

39183

BAND-ASSY

39183-1055

$10.63

41058

RODEND-BRAKE

41058-1057

$16.37

43015

CYLINDER-ASSY-MASTER

43015-1398

$348.92

43019

CUP-BRAKE

43019-1063

Unavailable

43019A

CUP-BRAKE

43019-1064

$62.09

43019B

CUP-BRAKE

43019-1065

$3.24

43022

STOPPER-BRAKE

43022-1053

$60.97

43026

CAP-BRAKE

43026-1067

$21.77

43028

DIAPHRAGM

43028-1072

$12.05

43039

PISTON-BRAKE

43039-1064

$29.36

43039A

PISTON-BRAKE

43039-1065

Unavailable

43049

PACKING

43049-1065

$1.95

43078

RESERVOIR

43078-1093

Unavailable

49006

BOOT

49006-1245

$7.47

92026

SPACER

92026-1351

$3.10

92033

RING-SNAP

92033-1255

$3.14

92043

PIN

92043-1039

$7.54

92144

SPRING

92144-1330

$5.54

92144A

SPRING

92144-1331

$5.54

92150

BOLT,STOP

92150-1165

$3.15

130

BOLT-FLANGED

130D0820

Unavailable

318

NUT-HEX-SMALL

318H0800

Unavailable

550

PIN-COTTER,2.5X18

550D2518

$0.61
