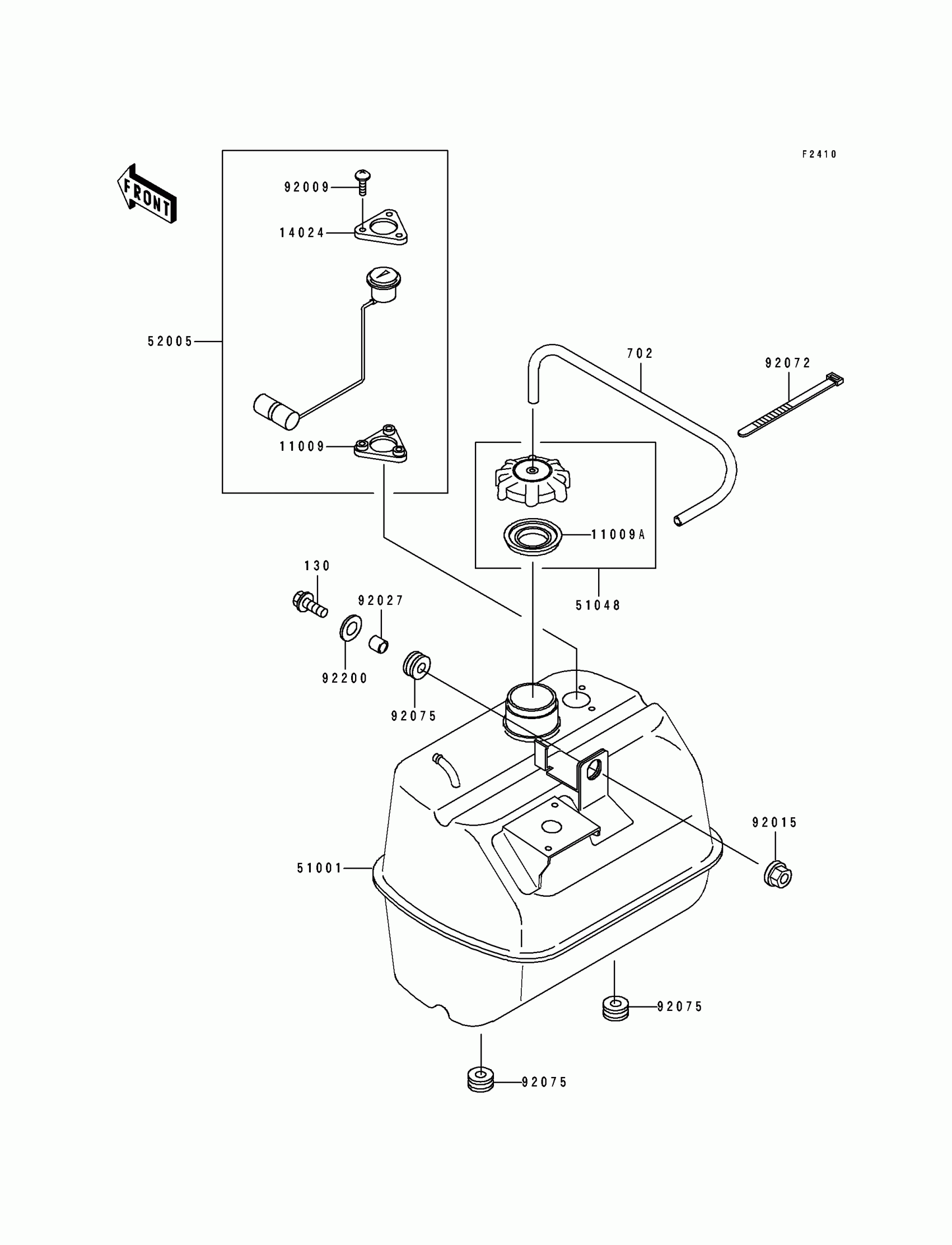

Kawasaki Mule 500 Fuel Tank Diagram

Description

Price

11009

GASKET,FUEL GAUGE

11009-1755

Unavailable

11009A

GASKET,FUEL TANK CAP

51059-006

Unavailable

14024

COVER,FUEL GAUGE

14024-1697

Unavailable

51001

TANK-COMP-FUEL

51001-1343

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-1004

$38.81

52005

GAUGE,FUEL

52005-1098

$52.46

92009

SCREW,6X14

92009-1541

$3.95

92015

NUT,LOCK,FLANGED,8MM

92015-1397

$3.29

92027

COLLAR

92027-1081

$9.29

92072

BAND,L=149

92072-031

$3.81

92075

DAMPER

92075-1736

$4.93

92200

WASHER,9X28X2.3

92022-1632

$3.92

130

BOLT-FLANGED,8X30

130D0830

Unavailable

702

TUBE-RUBBER,5X300

702A05300

$29.70
