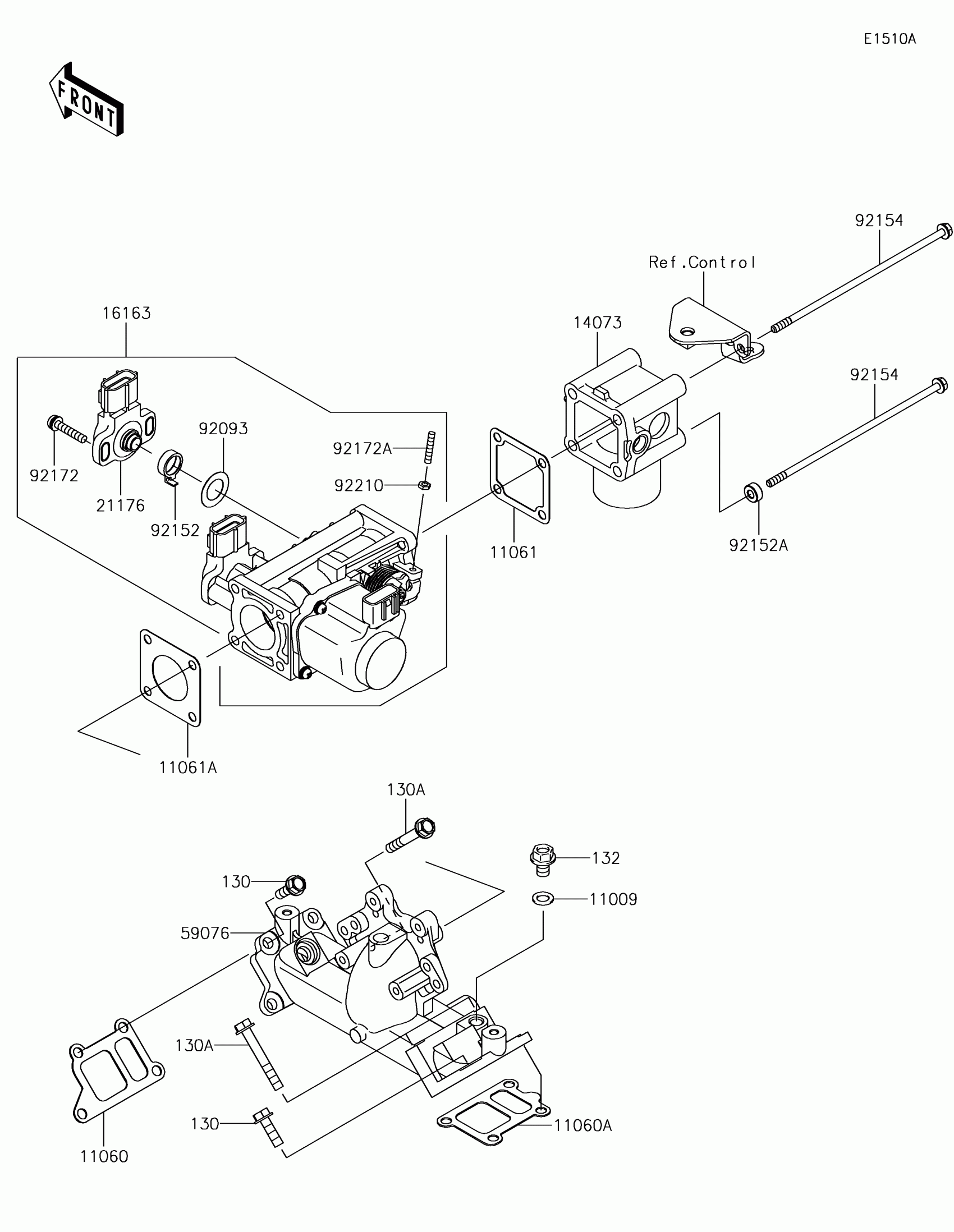

Kawasaki MULE™ 4010 TRANS4x4® Throttle(RKF) Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.44

11060

GASKET,INTAKE MANIFOLD

11060-2087

$2.64

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$2.25

11061

GASKET

11061-0861

$2.81

11061A

GASKET

11061-2179

$2.92

14073

DUCT

14073-0780

$109.36

16163

THROTTLE-ASSY

16163-0949

$1,008.76

21176

SENSOR

21176-2112

$152.61

59076

MANIFOLD-INTAKE

59076-0718

$281.73

92093

SEAL

92093-2133

$6.56

92152

COLLAR

92152-2093

$5.63

92152A

COLLAR,LWR SIDE

92152-2333

$1.42

92154

BOLT,FLANGED,6X195

92154-2653

$11.56

92172

SCREW

92172-0254

$2.42

92172A

SCREW

92172-2106

$4.03

92210

NUT

92210-2120

$1.39

130

BOLT-FLANGED,6X20

130BA0620

$1.49

130A

BOLT-FLANGED,6X45

130CA0645

$1.29

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.54
