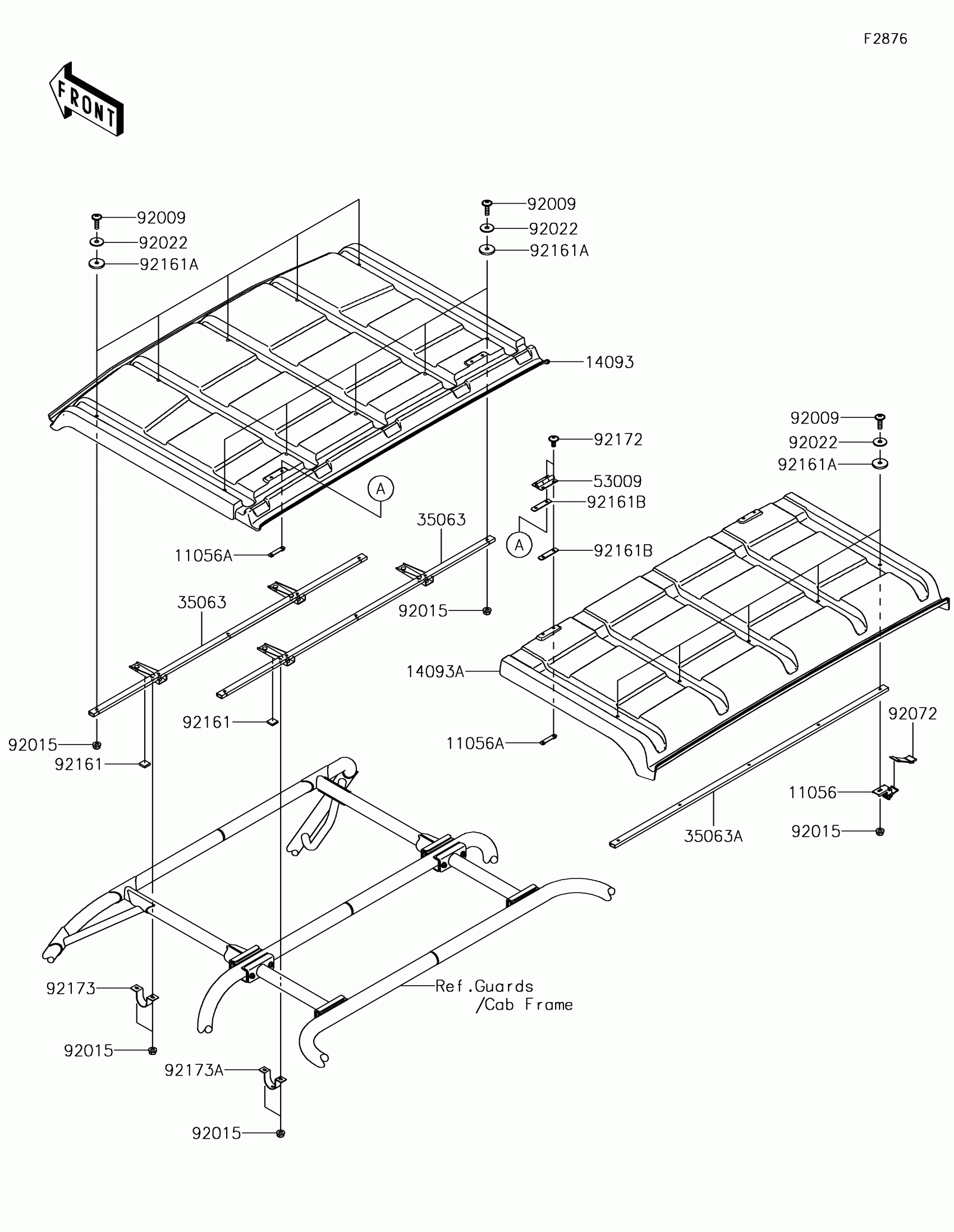

Kawasaki MULE™ 4010 TRANS4x4® Sun Top Diagram

Description

Price

11056

BRACKET

11056-3815

$13.31

11056A

BRACKET

11056-3910

$5.41

14093

COVER,SUN TOP,4P,FR

14093-0318

$176.52

14093A

COVER,SUN TOP,4P,RR

14093-0319

$144.93

35063

STAY,SUN TOP,FR

35063-1311

$61.17

35063A

STAY,SUN TOP,RR

35063-1312

$61.17

53009

HINGE

53009-0034

$8.12

92009

SCREW,6X22,BLACK

92009-1256

$2.27

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$3.72

92022

WASHER,6.5X22X1.6

92022-237

$3.12

92072

BAND,TOOL

92072-1176

$12.34

92161

DAMPER,25.4X25.4X6.3

92161-1405

$1.66

92161A

DAMPER,6X25X3.15

92161-1633

$0.54

92161B

DAMPER

92161-1650

$14.20

92172

SCREW,6X14

92172-0004

$2.29

92173

CLAMP,R22

92173-0884

$10.12

92173A

CLAMP,R24

92173-1472

$5.51
