2018 Kawasaki Mule™ 4010 TRANS4x4® SE Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2018 Kawasaki Mule™ 4010 TRANS4x4® SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

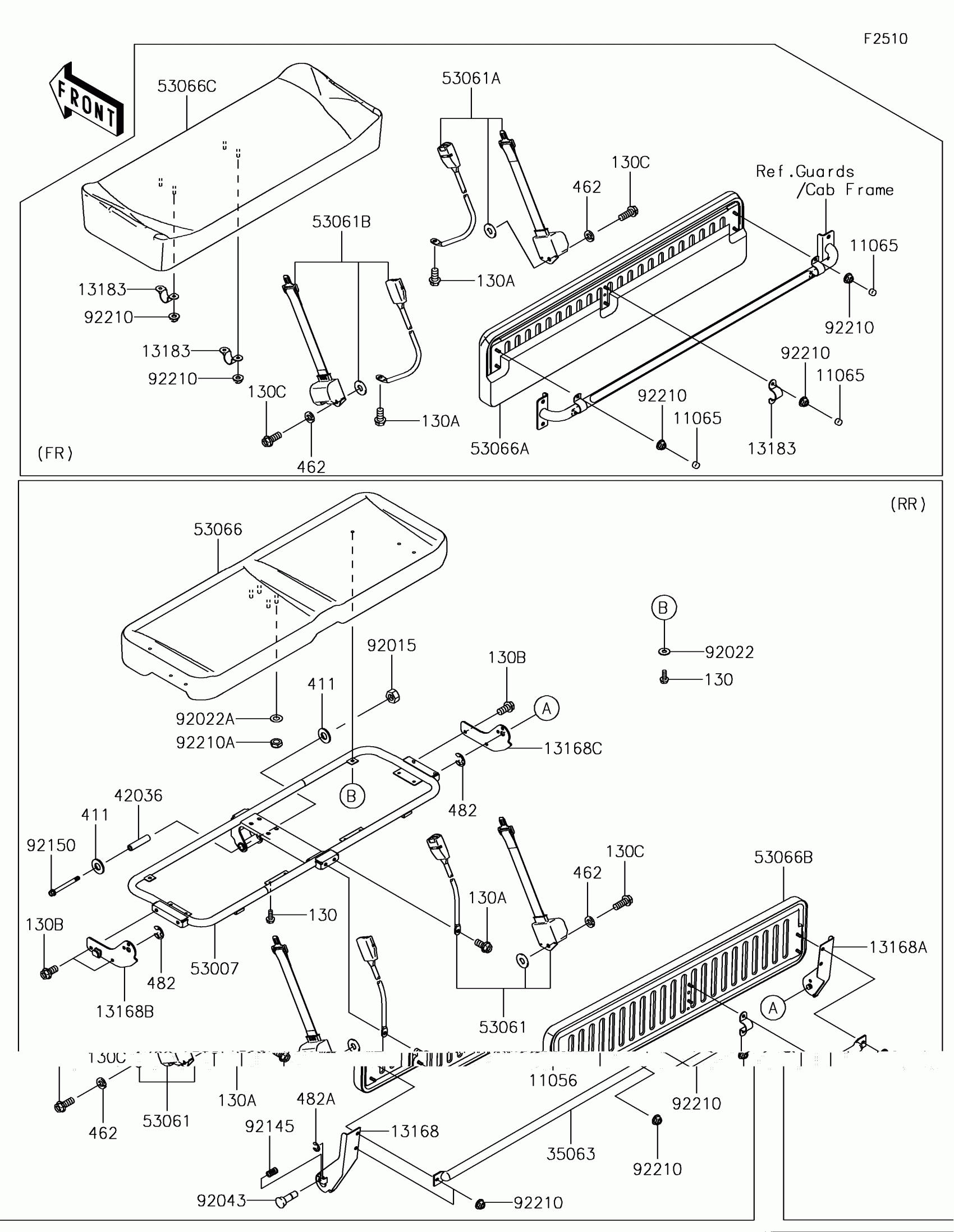

2018 Kawasaki Mule™ 4010 TRANS4x4® SE Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,SEAT BACK

11056-0034

1

$7.71

In stock

11065

CAP

11065-7504

1
Out of stock

13168

LEVER,SEAT,TOP,LH

13168-7502

1
Out of stock

13168A

LEVER,SEAT,TOP,RH

13168-7503

1
Out of stock

13168B

LEVER,SEAT,LWR,LH

13168-7504

1
Out of stock

13168C

LEVER,SEAT,LWR,RH

13168-7505

1
Out of stock

13183

PLATE,SEAT

13183-1400

1
Out of stock

35063

STAY,REAR BACK

35063-7510

1
Out of stock

42036

SLEEVE,12.1X20X85

42036-7501

1
Out of stock

53007

FRAME-SEAT

53007-0327

1

$160.24

In stock

53061

BELT-SEAT,RR

53061-0314

1

$116.97

In stock

53061A

BELT-SEAT,FR,RH

53061-0315

1

$114.22

In stock

53061B

BELT-SEAT,FR,LH

53061-0316

1

$114.22

In stock

53066

SEAT-ASSY,RR,LWR,BLACK

53066-0237-MA

1

$546.98

In stock

53066A

SEAT-ASSY,FR,BACK,BLACK

53066-0258-MA

1

$280.93

In stock

53066B

SEAT-ASSY,RR,BACK,BLACK

53066-0259-MA

1

$280.93

In stock

53066C

SEAT-ASSY,FR,LWR,BLACK

53066-0274-MA

1
Out of stock

92015

NUT,LOCK,12MM,BLACK

92015-1190

1
Out of stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92022A

WASHER,10.5X20X1

92022-239

1
Out of stock

92043

PIN

92043-7503

1
Out of stock

92145

SPRING

92145-7507

1
Out of stock

92150

BOLT,FLANGED,12X117

92150-1895

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock

92210A

NUT,LOCK,10MM

92210-0278

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

130B

BOLT-FLANGED,10X20

130BB1020

1

$4.72

In stock

130C

BOLT-FLANGED,12X25

130BB1225

1

$4.01

In stock

411

WASHER-PLAIN

411AB1200

1
Out of stock

462

WASHER-SPRING,12MM

462DB1200

1
Out of stock

482

CIRCLIP-TYPE-E,12MM

482EA0200

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock
