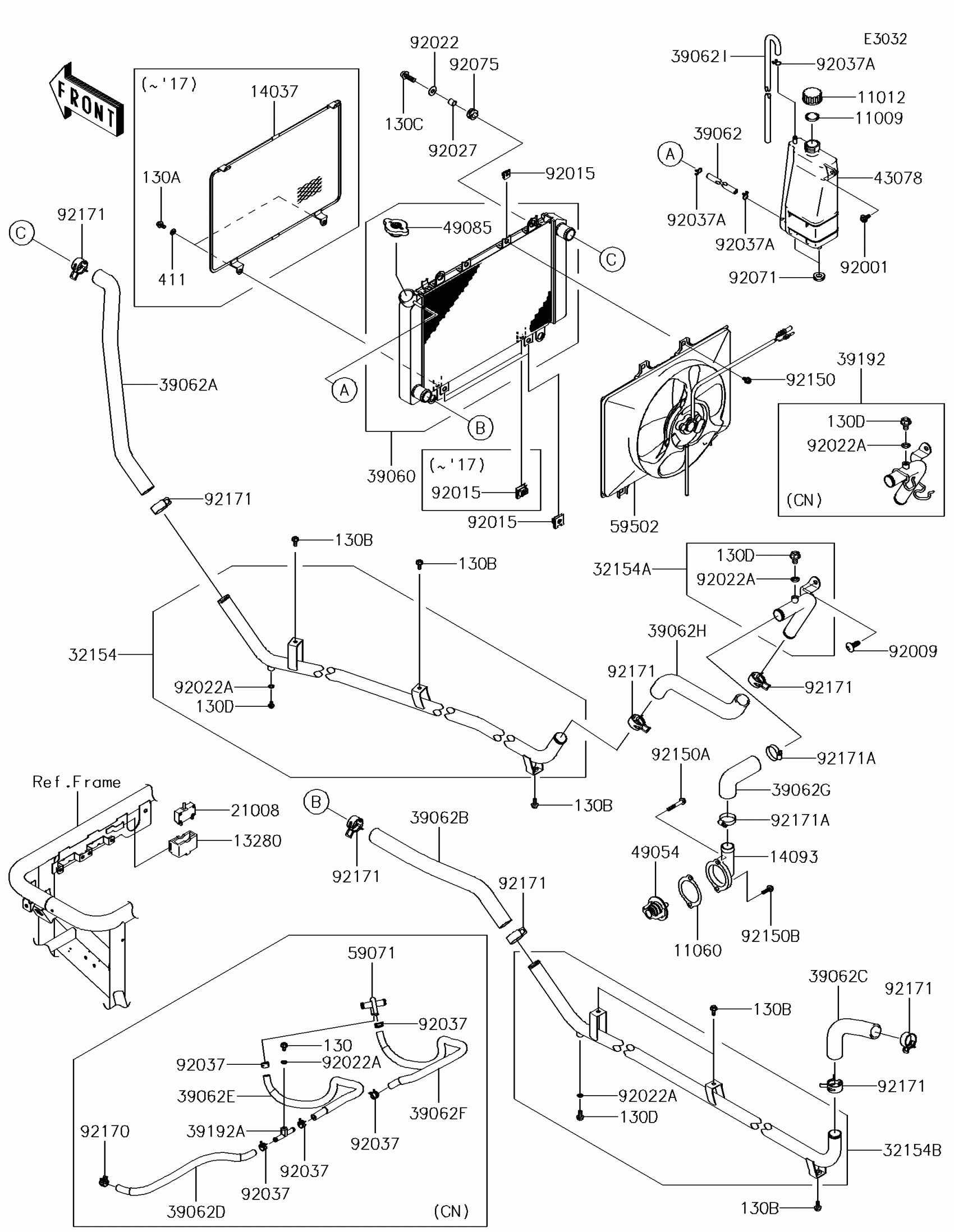

Kawasaki MULE™ 4010 TRANS4x4® SE Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11060

GASKET,THERMOSTAT COVER

11060-2084

$1.95

13280

HOLDER,BREAKER

13280-0082

$4.92

14037

SCREEN

14037-0088

$47.88

14093

COVER,THERMOSTAT

14093-0061

$12.11

21008

BREAKER,FAN MOTOR

21008-0001

$21.08

32154

PIPE,RH FR

32154-7503

$103.83

32154B

PIPE,LH

32154-7507

$66.99

39060

RADIATOR

39060-0066

$845.93

39062

HOSE-COOLING,5.5X10.5X650

39062-0266

$3.24

39062A

HOSE-COOLING,PIPE-RAD.

39062-0282

$21.39

39062B

HOSE-COOLING,RAD.-LH PIPE

39062-0283

$23.08

39062C

HOSE-COOLING,PIPE-E/G

39062-0286

$12.81

39062G

HOSE-COOLING

39062-1832

$12.80

39062H

HOSE-COOLING

39062-7502

$13.83

39062I

HOSE-COOLING,DRAIN

39062-7507

$22.78

43078

RESERVOIR

43078-0062

$30.29

49054

THERMOSTAT

49054-2056

$22.02

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59502

FAN-ASSY

59502-0042

$725.96

92001

BOLT,W/P,6X16

92001-1860

$3.85

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT

92015-1487

$3.64

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92027

COLLAR

92027-102

$0.86

92037A

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1115

$4.14

92075

DAMPER

92075-294

$3.68

92150

BOLT,6X12

92150-1186

$2.56

92150A

BOLT,6X40

92150-2230

$1.14

92150B

BOLT,6X20

92150-2231

$1.39

92171

CLAMP,COOLING HOSE

92171-0060

$3.36

92171A

CLAMP

92171-0179

$6.25

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X14

130BA0614

$0.97

130C

BOLT-FLANGED,8X25

130BA0825

$2.01

130D

BOLT-FLANGED,6X10

130BB0610

$1.77

411

WASHER-PLAIN,6MM

411AA0600

$2.06
