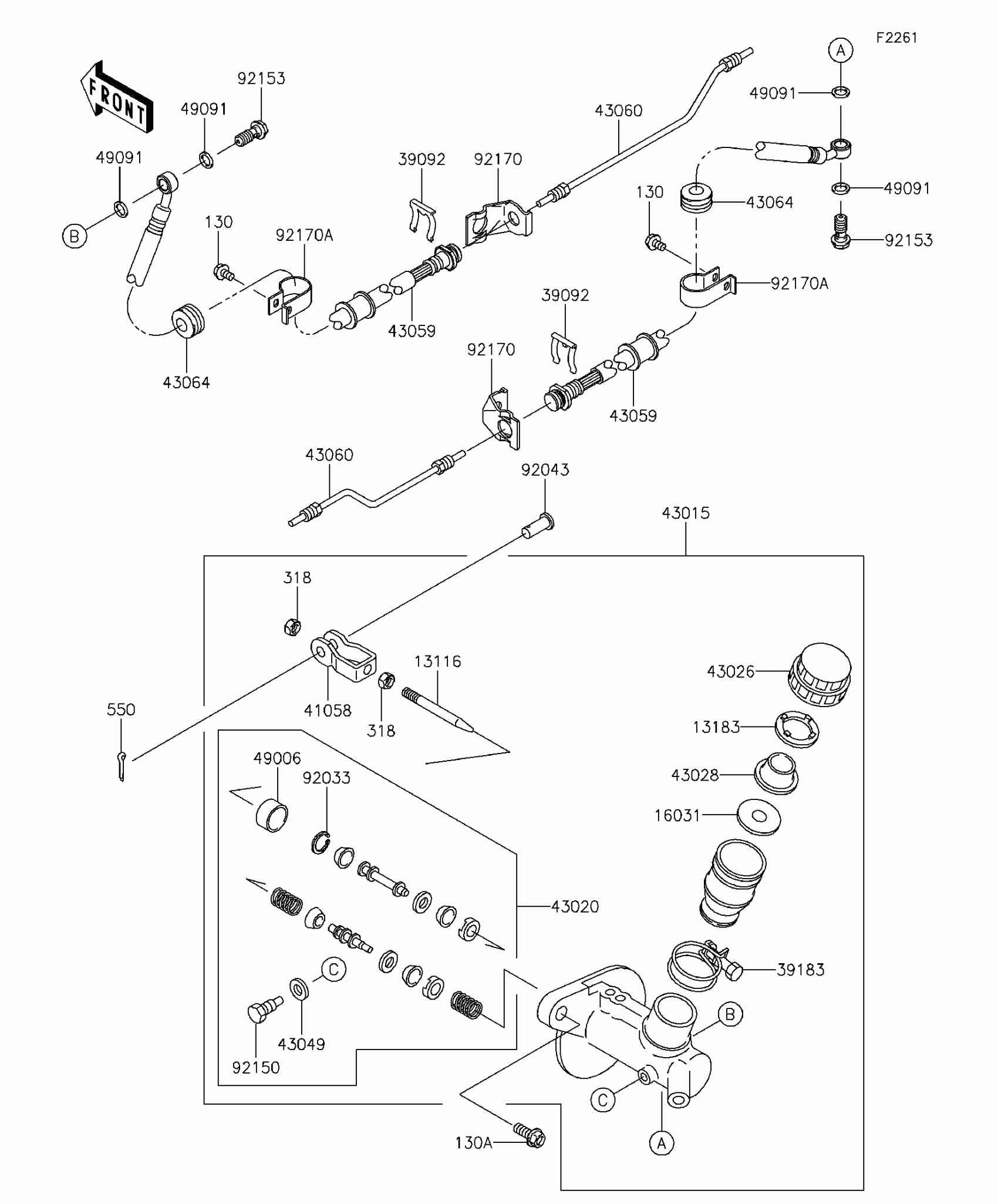

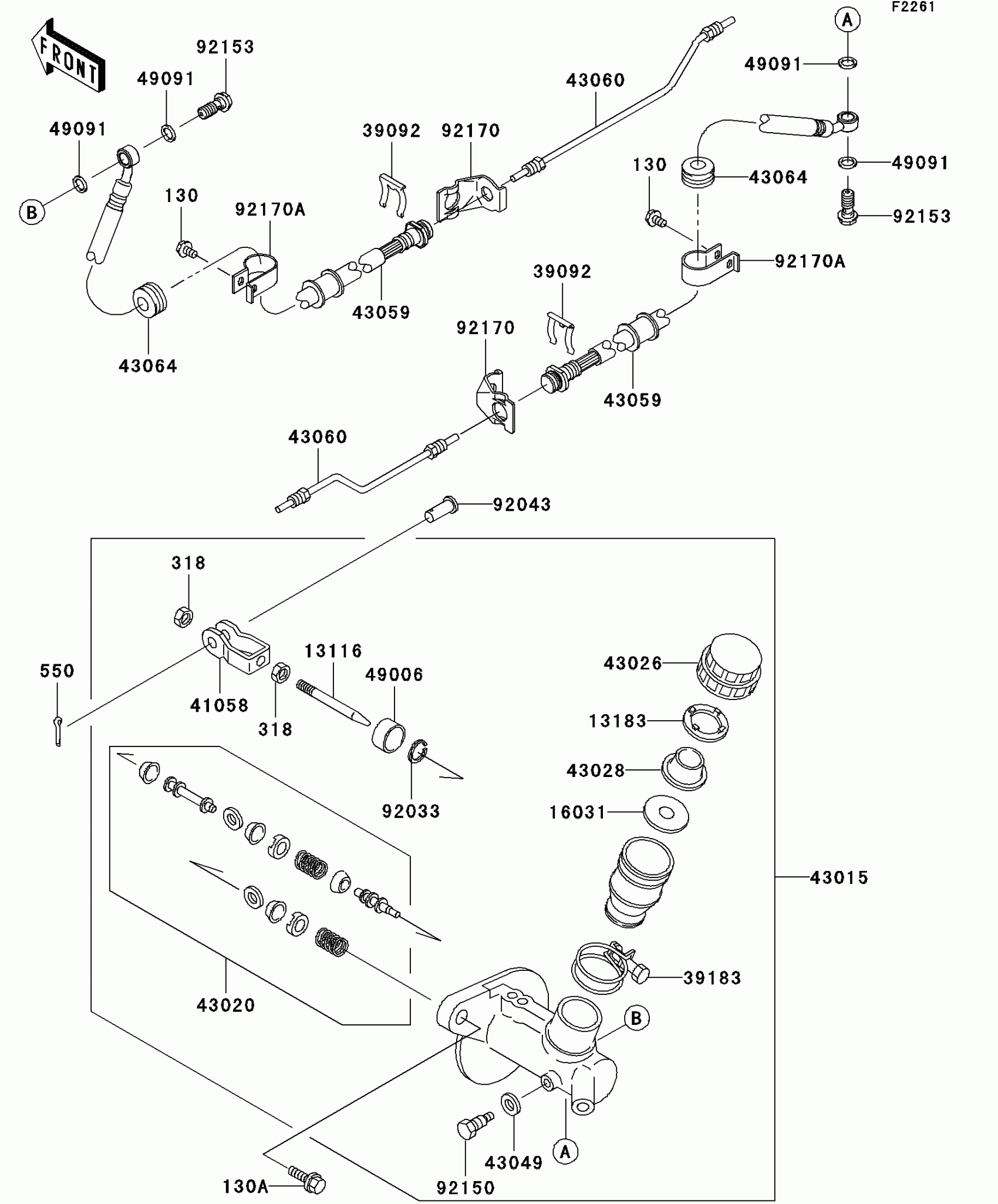

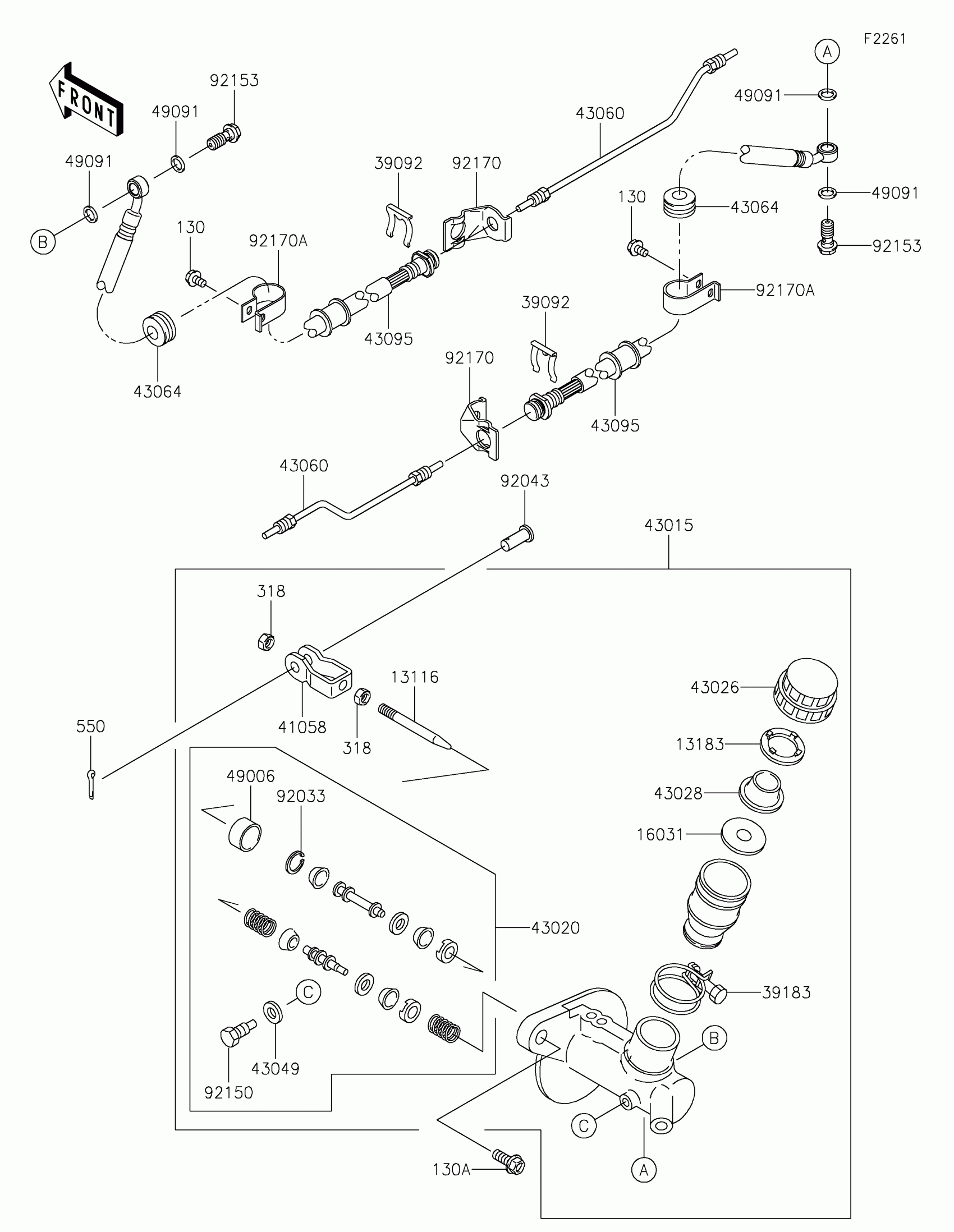

Kawasaki Mule 4010 Trans4x4 Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-1134

$34.29

13183

PLATE

13183-1306

$3.92

16031

FLOAT

16031-1069

$7.47

39092

PIN-HAIR

39092-1052

$6.07

39183

BAND-ASSY

39183-1055

$10.63

41058

RODEND-BRAKE

41058-1053

$18.78

43015

CYLINDER-ASSY-MASTER

43015-1682

$308.05

43020

PISTON-COMP-BRAKE

43020-1124

$68.97

43026

CAP-BRAKE

43026-1067

$25.24

43028

DIAPHRAGM

43028-1078

$12.05

43049

PACKING

43049-1065

$2.25

43059

HOSE-BRAKE,FR

43059-1489

$71.13

43060

PIPE-BRAKE,FR

43060-1082

$21.82

43064

GROMMET,HOSE CLAMP

43064-007

$4.19

49006

BOOT

49006-1245

$7.47

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.81

92033

RING-SNAP

92033-1255

$3.14

92043

92043-1039

$7.54

92150

BOLT,STOP

92150-1165

$3.15

92153

BOLT,OIL,L=23

92153-0627

$4.17

92170

CLAMP,BRAKE PIPE

92170-1093

$7.24

92170A

CLAMP,HOSE

92170-1173

$8.20

130

BOLT-FLANGED,6X10

130AA0610

$0.51

130A

BOLT-FLANGED,8X20

130AA0820

$0.70

318

NUT-HEX-SMALL,8MM

318BA0800

$1.20

550

PIN-COTTER,2.5X18

550AA2518

$0.61
