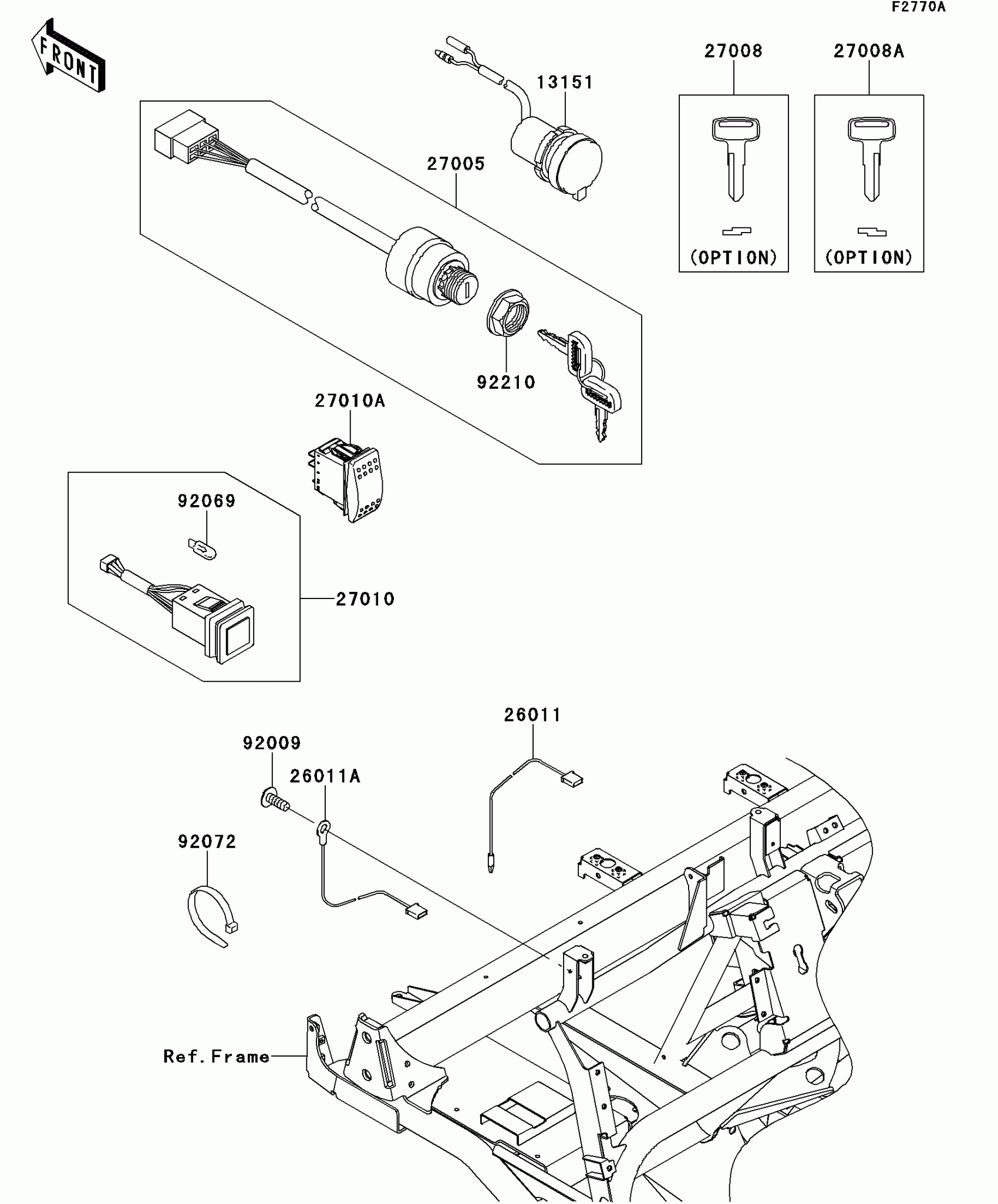

Kawasaki Mule 4010 Trans4x4 Ignition Switch(RDF/RDFA) Diagram

Description

Price

13151

SWITCH-COMP,D.C.TERMINAL

13151-0003

$145.52

26011

WIRE-LEAD,360MM

26011-0796

$3.44

26011A

WIRE-LEAD,320MM

26011-0797

$3.41

27005

SWITCH-ASSY-IGNITION

27005-0011

$86.25

27008

KEY-LOCK,BLANK

27008-1153

$14.13

27008A

KEY-LOCK,BLANK

27008-1157

$14.13

27010

SWITCH,HEAD LAMP

27010-0105

Unavailable

27010A

SWITCH,HORN

27010-0734

$25.92

92009

SCREW,TAPPING,6X16

92009-1166

$4.36

92069

BULB,12V 1.7W

92069-0036

$2.92

92072

BAND,L=188

92072-1239

$1.51

92210

NUT,IGNITION SWITCH

92210-1264

$4.75
