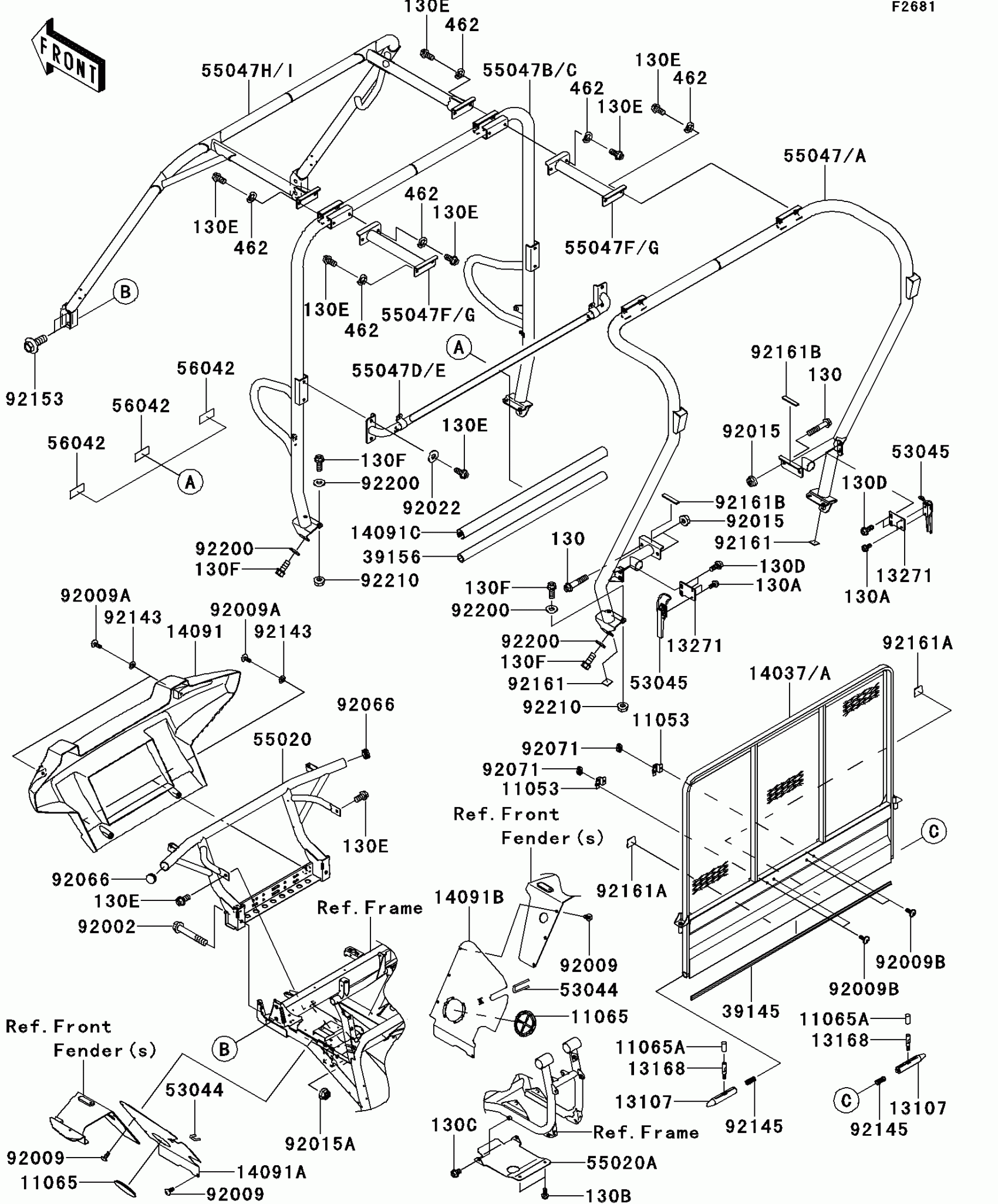

Kawasaki Mule 4010 Trans4x4 Guards/Cab Frame(RCF/RCFA) Diagram

#

Description
Price

11053

BRACKET,SCREEN

11053-7528

$5.99

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

11065A

CAP

11065-7503

$1.69

13107

SHAFT

13107-7501

$10.88

13168

LEVER

13168-7506

$8.17

13271

PLATE,HOOK

13271-7540

$11.77

14037

SCREEN,REAR CAB,T.SILVER

14037-7501-16Q

$229.81

14091

COVER,FRONT GUARD,F.BLACK

14091-0817-6Z

Unavailable

14091A

COVER,FR,LH

14091-1758

$75.61

14091B

COVER,FR,RH

14091-1759

$75.61

14091C

COVER

14091-7559

$31.98

39145

TRIM-SEAL,L=1157

39145-7502

$29.08

39156

PAD

39156-7506

$11.59

53044

TRIM

53044-1137

$10.65

53045

HOOK-ASSY

53045-7501

$23.27

55020

GUARD,FR

55020-0387

$269.30

55020A

GUARD,GEAR CASE

55020-7506

$30.14

55047

BAR-COMP,RR,T.SILVER

55047-0020-16Q

$703.45

55047B

BAR-COMP,CNT,T.SILVER

55047-0331-16Q

$589.14

55047D

BAR-COMP,FRONT SEAT,T.SILVER

55047-7503-16Q

$75.88

55047F

BAR-COMP,TOP,T.SILVER

55047-7504-16Q

$53.05

55047H

BAR-COMP,FR,T.SILVER

55047-7510-16Q

$505.70

56042

ADHESIVE

56042-7502

$1.49

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

$3.60

92009B

SCREW,6X14

92009-1662

$3.92

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92066

PLUG

92066-7503

$1.75

92071

GROMMET

92071-7505

$2.26

92143

COLLAR

92143-1087

$4.31

92145

SPRING,TENSIONER

92145-1215

$4.63

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92161

DAMPER

92161-0020

$5.00

92161A

DAMPER

92161-0061

$2.41

92161B

DAMPER

92161-7514

$1.49

92200

WASHER,10.2X23X2.5

92200-7506

$3.90

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,10X50

130BA1050

$1.64

130A

BOLT-FLANGED,6X14

130BB0614

$2.49

130B

BOLT-FLANGED,6X16

130BB0616

$2.06

130C

BOLT-FLANGED,8X12

130BB0812

$1.49

130D

BOLT-FLANGED,8X20

130BB0820

$1.49

130E

BOLT-FLANGED,10X20

130BB1020

$5.96

130F

BOLT-FLANGED,10X25

130BB1025

$5.25

462

WASHER-SPRING,10MM

462DB1000

$2.81
