2021 Kawasaki Mule™ 4010 TRANS4x4® FE Starter Motor Diagram

← All diagrams

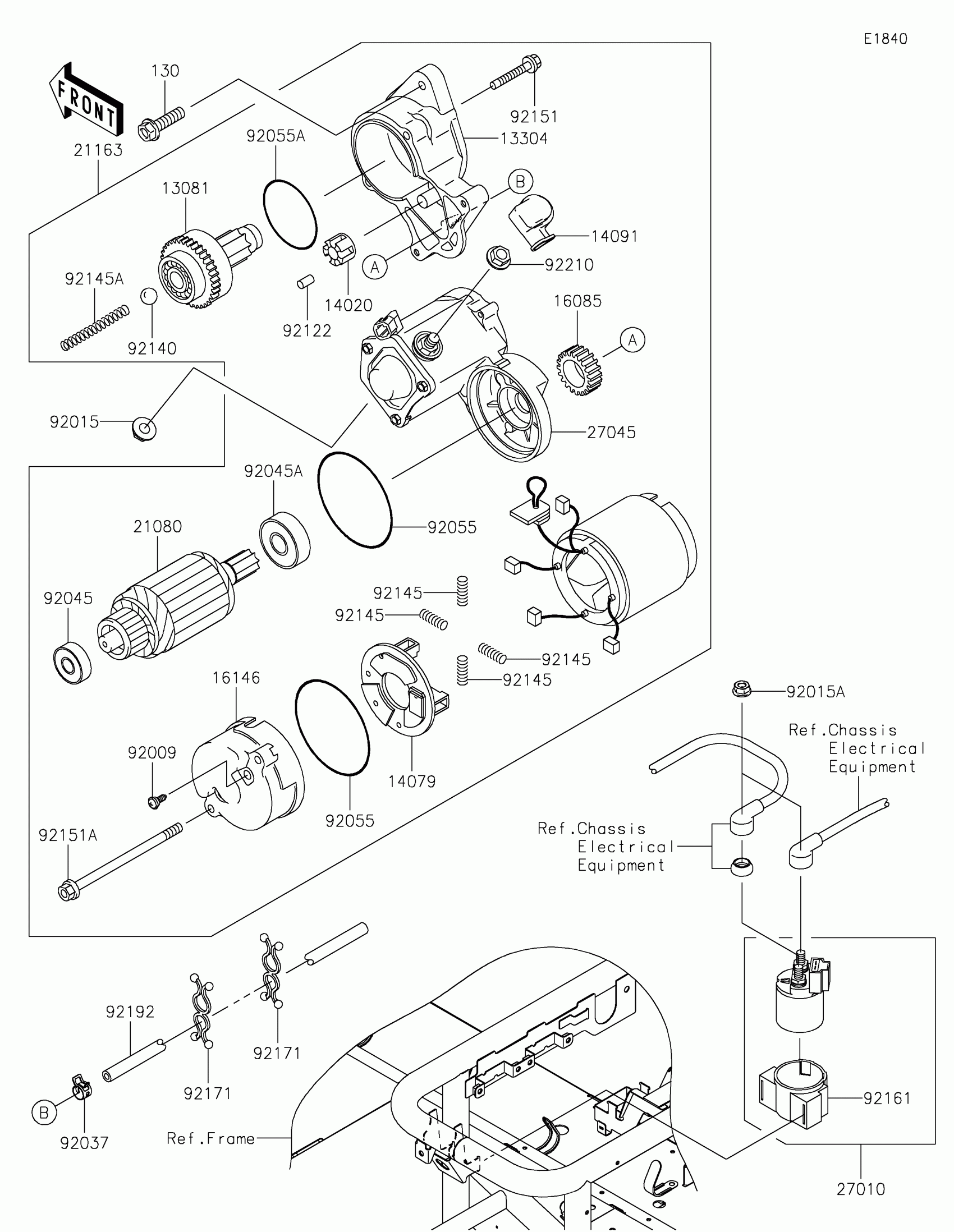

Find the part on the Starter Motor diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule™ 4010 TRANS4x4® FE Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13081

CLUTCH-ASSY

13081-2231

1

$133.68

In stock

13304

HOUSING-ASSY

13304-2253

1
Out of stock

14020

RETAINER

14020-2112

1
Out of stock

14079

HOLDER-ASSY

14079-2064

1

$84.26

In stock

14091

COVER

14091-2080

1

$5.34

In stock

16085

GEAR

16085-2055

1

$41.60

In stock

16146

COVER-ASSY

16146-2243

1

$103.79

In stock

21080

ARMATURE

21080-2070

1

$428.25

In stock

21163

STARTER-ELECTRIC

21163-2134

1

$715.36

In stock

27010

SWITCH,MAGNETIC

27010-0766

1

$125.50

In stock

27045

SWITCH-ASSY

27045-2020

1

$445.77

In stock

92009

SCREW

92009-2455

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP

92037-2113

1

$0.97

In stock

92045

1

$26.00

In stock

92045A

BEARING-BALL

92045-2258

1

$34.29

In stock

92055

RING-O

92055-2199

1

$7.51

In stock

92055A

RING-O

92055-2200

1

$4.42

In stock

92122

ROLLER

92122-2057

1

$2.00

In stock

92140

BALL

92140-2061

1

$1.98

In stock

92145

SPRING

92145-2096

1

$3.25

In stock

92145A

SPRING

92145-2097

1

$3.25

In stock

92151

BOLT

92151-2167

1

$2.00

In stock

92151A

BOLT

92151-2168

1

$12.58

In stock

92161

1

$18.34

In stock

92171

CLAMP

92171-0476

1

$3.51

In stock

92192

TUBE,4.7X9.5X1000

92192-0937

1
Out of stock

92210

NUT

92210-2084

1
Out of stock

130

BOLT-FLANGED,8X30

130CA0830

1

$1.00

In stock
