2021 Kawasaki Mule™ 4010 TRANS4x4® Fe Master Cylinder Diagram

← All diagrams

Find the part on the Master Cylinder diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

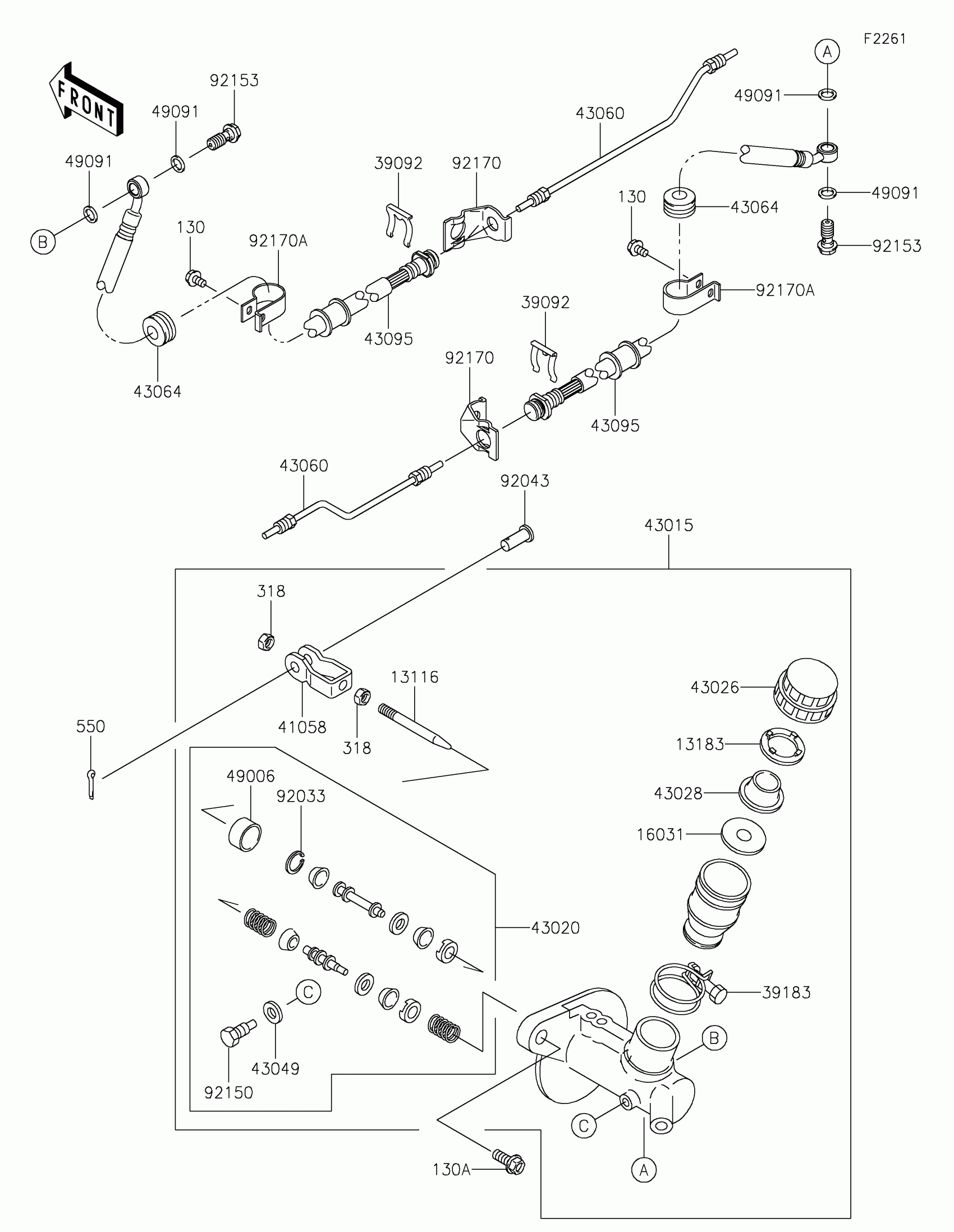

2021 Kawasaki Mule™ 4010 TRANS4x4® Fe Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13116

ROD-PUSH

13116-1134

1
Out of stock

13183

PLATE

13183-1306

1
Out of stock

16031

FLOAT

16031-1069

1
Out of stock

39092

PIN-HAIR

39092-1052

1
Out of stock

39183

BAND-ASSY

39183-1055

1
Out of stock

41058

RODEND-BRAKE

41058-1053

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-1682

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1124

1
Out of stock

43026

CAP-BRAKE

43026-1067

1
Out of stock

43028

DIAPHRAGM

43028-1078

1
Out of stock

43049

PACKING

43049-1065

1
Out of stock

43060

PIPE-BRAKE,FR

43060-1082

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-007

1
Out of stock

43095

HOSE-BRAKE,FR

43095-1608

1
Out of stock

49006

BOOT

49006-1245

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92033

RING-SNAP

92033-1255

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92150

BOLT,STOP

92150-1165

1
Out of stock

92153

BOLT,OIL,L=23

92153-1419

1
Out of stock

92170

CLAMP,BRAKE PIPE

92170-1093

1
Out of stock

92170A

CLAMP,HOSE

92170-1173

1
Out of stock

130

BOLT-FLANGED,6X10

130AA0610

1
Out of stock

130A

BOLT-FLANGED,8X20

130CA0820

1
Out of stock

318

NUT-HEX-SMALL,8MM

318BA0800

1
Out of stock

550

PIN-COTTER,2.5X18

550AA2518

1
Out of stock
