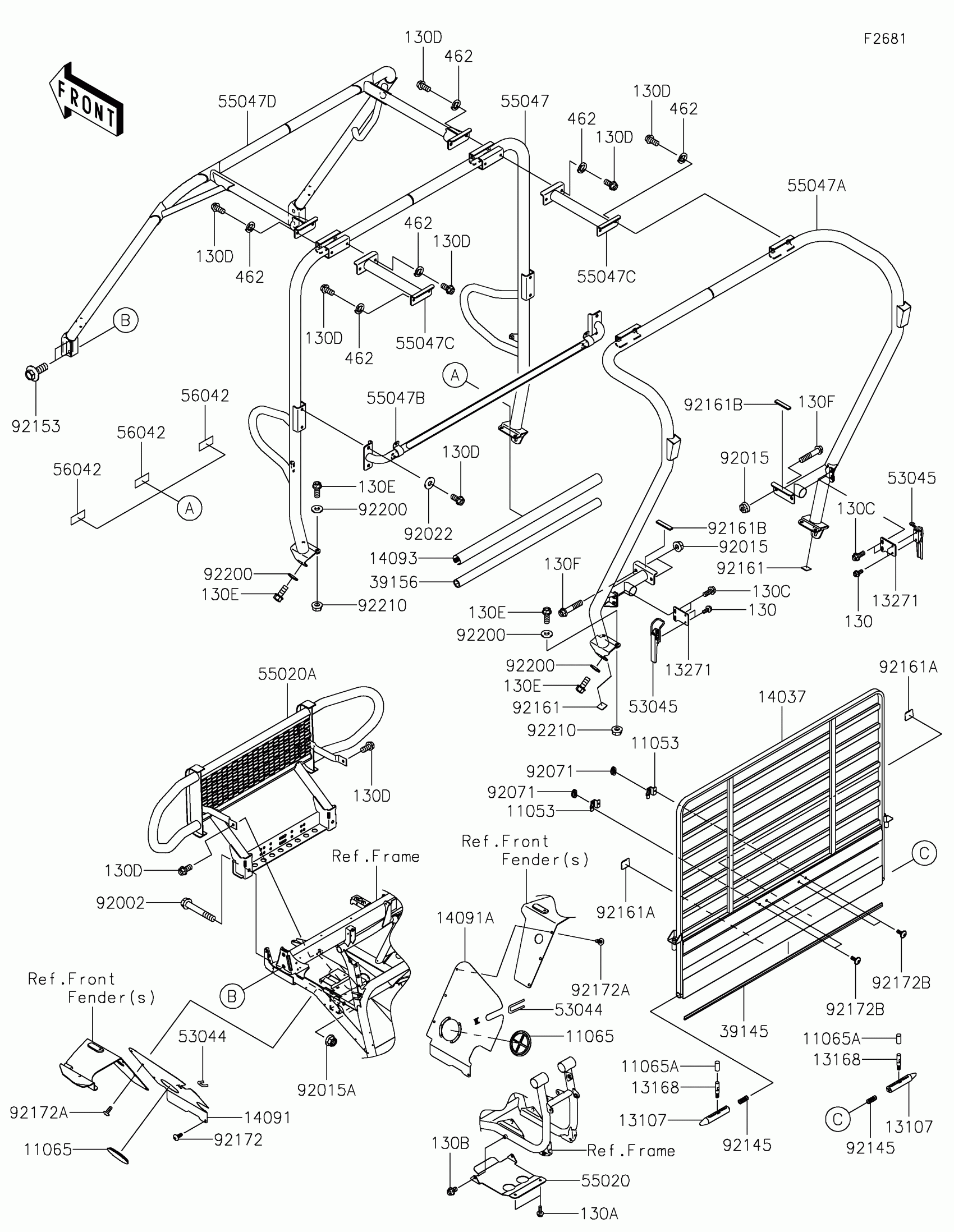

Kawasaki MULE™ 4010 TRANS4x4® FE Guards/Cab Frame Diagram

#

Description
Price

11053

BRACKET,SCREEN

11053-7528

$5.24

11065

CAP,F.BLACK

11065-1053-6Z

$6.40

11065A

CAP

11065-7503

$1.46

13107

SHAFT

13107-7501

$10.42

13168

LEVER

13168-7506

$8.00

13271

PLATE,HOOK

13271-7540

$11.25

14037

SCREEN,REAR CAB,T.BLACK

14037-0811-388

$199.96

14091

COVER,FR,LH

14091-1758

$77.00

14091A

COVER,FR,RH

14091-1759

$77.00

14093

COVER

14093-0907

$32.94

39145

TRIM-SEAL,L=1157

39145-7502

$29.61

39156

PAD

39156-7506

$11.07

53044

TRIM

53044-1137

$10.25

53045

HOOK-ASSY

53045-7501

$21.71

55020

GUARD,GEAR CASE

55020-2295

$30.99

55020A

GUARD,FR

55020-2299

$257.60

55047

BAR-COMP,CNT,T.BLACK

55047-0353-388

$555.30

55047A

BAR-COMP,RR,T.BLACK

55047-0385-388

$674.10

55047B

BAR-COMP,FRONT SEAT,T.BLACK

55047-7503-388

$67.25

55047C

BAR-COMP,TOP,T.BLACK

55047-7504-388

$51.22

55047D

BAR-COMP,FR,T.BLACK

55047-7510-388

Unavailable

56042

ADHESIVE

56042-7502

$1.29

92002

BOLT,FLANGED,12X75

92002-1661

$10.44

92015

NUT,FLANGED,10MM

92015-1428

$3.81

92015A

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92022

WASHER,10.5X26X2.3

92022-044

$2.99

92071

GROMMET

92071-7505

$1.62

92145

SPRING,TENSIONER

92145-1215

$3.52

92153

BOLT,FLANGED,14X36

92153-1282

$7.51

92161

DAMPER

92161-0020

$4.42

92161A

DAMPER

92161-0061

$1.73

92161B

DAMPER

92161-7514

$1.27

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92172A

SCREW,6X16

92172-0826

$1.62

92172B

SCREW,6X14

92172-0996

$2.12

92200

WASHER,10.2X23X2.5

92200-0211

$2.68

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

130B

BOLT-FLANGED,8X12

130BA0812

$0.79

130C

BOLT-FLANGED,8X20

130BA0820

$3.04

130D

BOLT-FLANGED,10X20

130BA1020

$2.68

130E

BOLT-FLANGED,10X25

130BA1025

$2.71

130F

BOLT-FLANGED,10X50

130BA1050

$1.42

462

WASHER-SPRING,10MM

462DA1000

$4.08
