2021 Kawasaki Mule™ 4010 TRANS4x4® FE Fuel Injection Diagram

← All diagrams

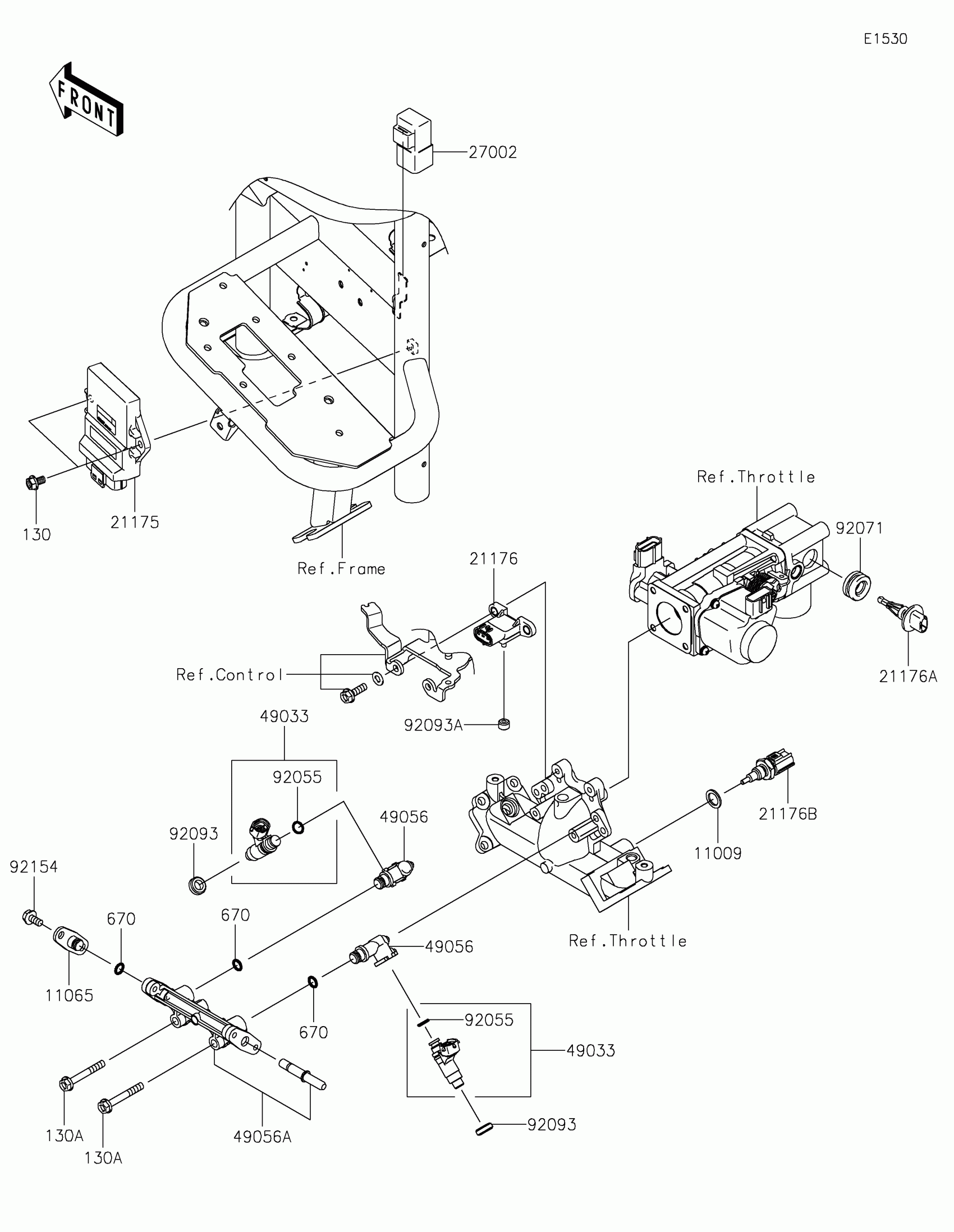

Find the part on the Fuel Injection diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule™ 4010 TRANS4x4® FE Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,12.5X18X1.5

11009-1376

1
Out of stock

11065

CAP

11065-2129

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC,F.I.

21175-1629

1
Out of stock

21176

SENSOR,PRESSURE

21176-1095

1
Out of stock

21176A

SENSOR,AIR TEMP

21176-2106

1
Out of stock

21176B

SENSOR

21176-2111

1
Out of stock

27002

RELAY-ASSY

27002-1088

1
Out of stock

49033

NOZZLE-INJECTION

49033-2060

1
Out of stock

49056

PIPE-INJECTION

49056-2062

1
Out of stock

49056A

PIPE-INJECTION

49056-6003

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92071

GROMMET

92071-0781

1
Out of stock

92093

SEAL

92093-0718

1
Out of stock

92093A

SEAL

92093-2127

1
Out of stock

92154

BOLT,6X12

92154-2938

1
Out of stock

130

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

130A

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

670

O RING,8MM

670E1508

1
Out of stock
← Fuel Evaporative System Fuel Pump →
