2021 Kawasaki Mule™ 4010 TRANS4x4® FE Front Suspension Diagram

← All diagrams

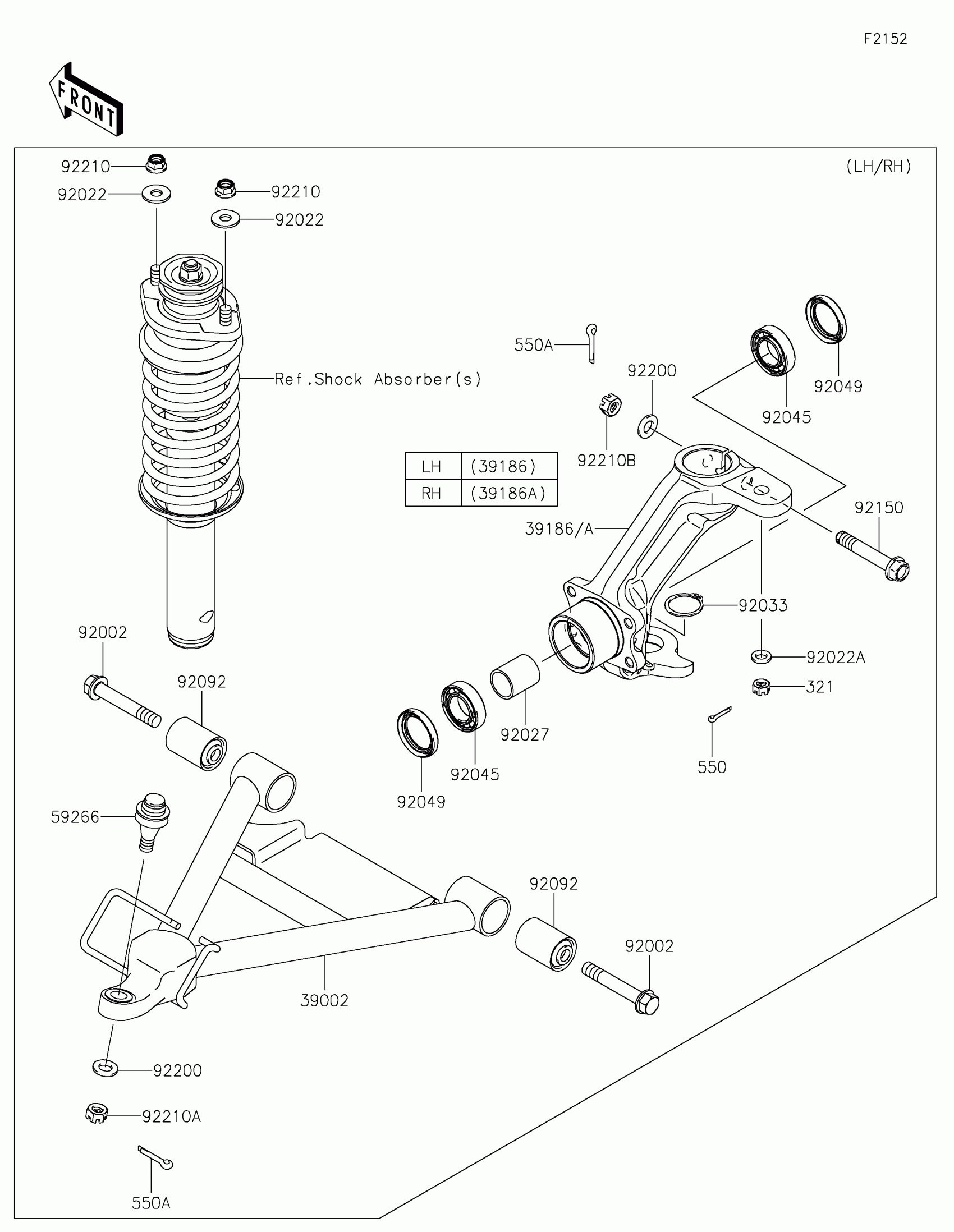

Find the part on the Front Suspension diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule™ 4010 TRANS4x4® FE Front Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39002

ARM-COMP-SUSP

39002-0003

1
Out of stock

39186

KNUCKLE,FR,LH

39186-0327

1
Out of stock

39186A

KNUCKLE,FR,RH

39186-0328

1
Out of stock

59266

JOINT-BALL

59266-1080

1
Out of stock

92002

BOLT,FLANGED,12X75

92002-1661

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92022A

WASHER,10.5X18X2.5

92022-1876

1
Out of stock

92027

COLLAR,L=34.5

92027-1538

1
Out of stock

92033

RING-SNAP,C-TYPE,32MM

92033-1262

1
Out of stock

92045

BEARING-BALL

92045-3707

1
Out of stock

92049

SEAL-OIL,SD35X47X7HS

92049-1513

1
Out of stock

92092

BUSHING-RUBBER

92092-1065

1
Out of stock

92150

BOLT,FLANGED,12X72

92150-1356

1
Out of stock

92200

WASHER,12.3X23X2.3

92200-1004

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-0276

1
Out of stock

92210A

NUT,CASTLE,12MM

92210-0395

1
Out of stock

92210B

NUT,12MM

92210-7501

1
Out of stock

321

NUT-CASTLE

321BA1000

1
Out of stock

550

PIN-COTTER,2.0X22

550AA2022

1
Out of stock

550A

PIN-COTTER,3.0X25

550AA3025

1
Out of stock
