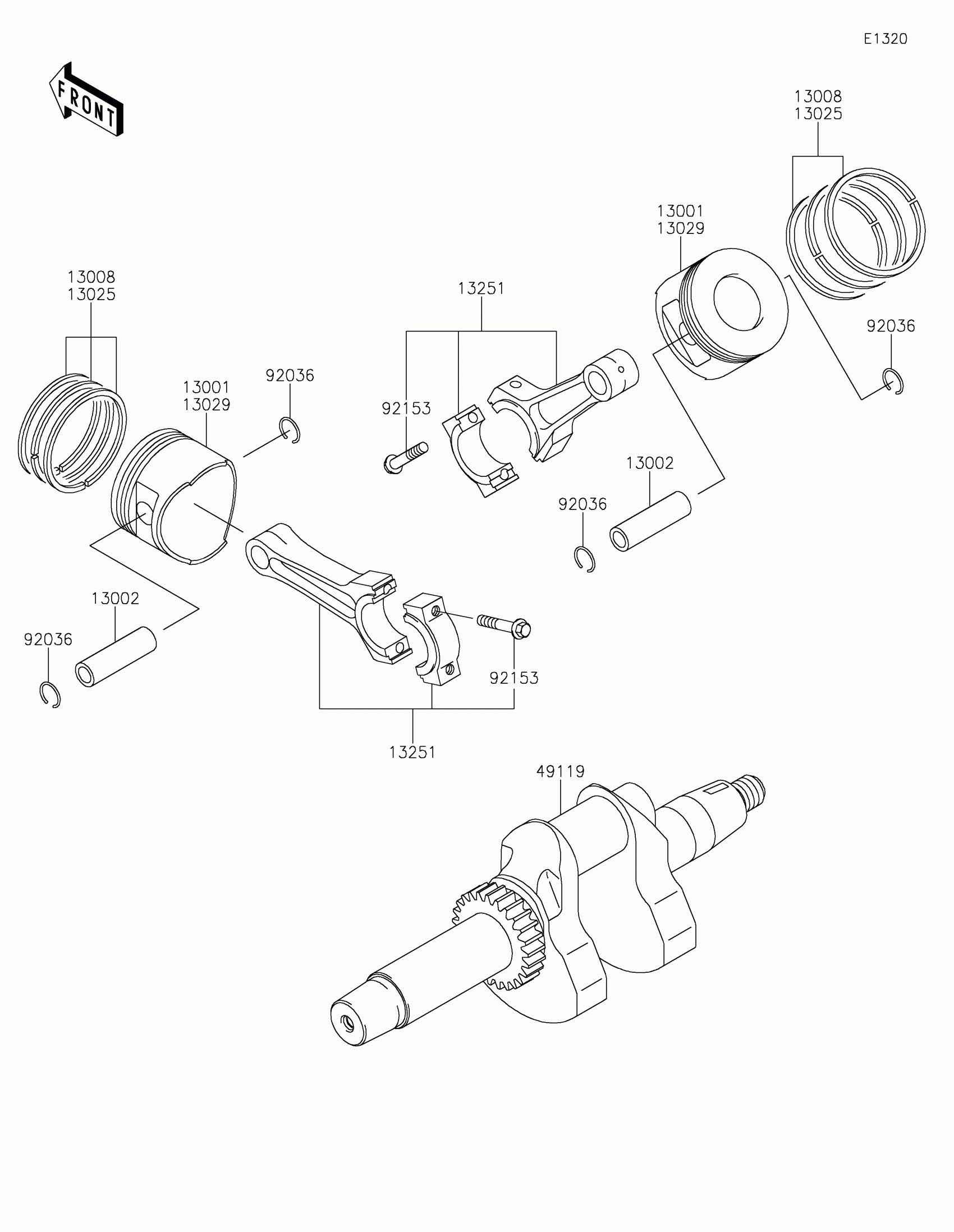

Kawasaki MULE™ 4010 TRANS4x4® FE Crankshaft/Piston(s) Diagram

#

Description
Price

13001

PISTON-ENGINE

13001-2210

$39.71

13002

PIN-PISTON

13002-1013

$5.04

13008

RING-SET-PISTON,STD

13008-6025

$31.54

13025

RING-SET-PISTON L,0.50

13025-6008

Unavailable

13029

PISTON-ENGINE L,0.50

13029-0033

Unavailable

13251

ROD-ASSY-CONNECTING

13251-0737

$68.88

49119

CRANKSHAFT-ASSY

49119-0015

$606.43

92036

CIRCLIP,PISTON PIN

92036-021

$0.48

92153

BOLT,7X35.2

92153-2054

$1.42
