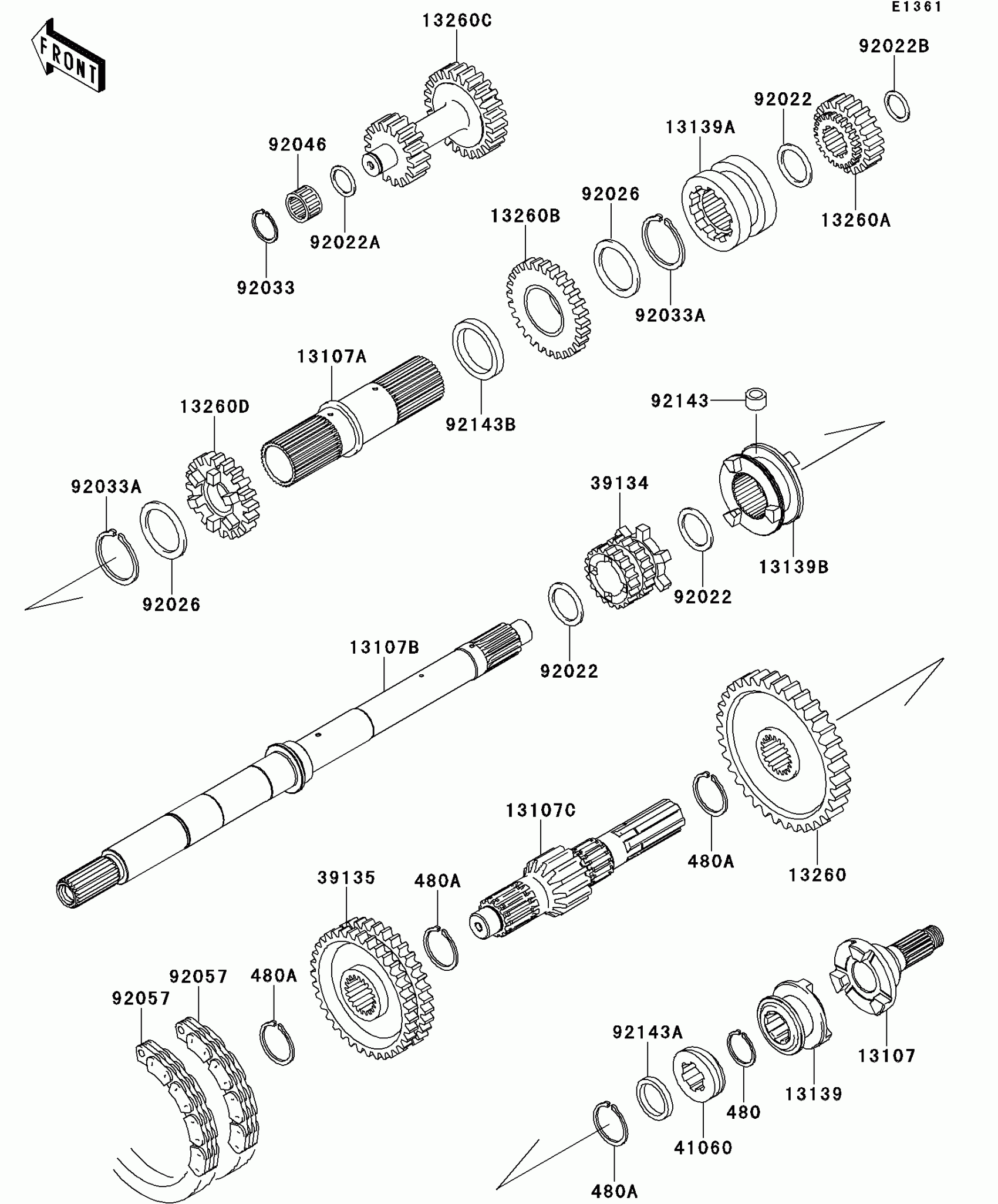

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Transmission Diagram

Description

Price

13107

SHAFT,2WD/4WD

13107-0106

$207.90

13107A

SHAFT,INPUT OUTER

13107-1309

$204.35

13107B

SHAFT,INPUT

13107-1512

$488.00

13107C

SHAFT,OUTPUT,14T

13107-1517

$275.50

13139

SHIFTER,2WD/4WD

13139-0010

$104.62

13139A

SHIFTER,SPEED,HI/LOW

13139-1069

$133.91

13139B

SHIFTER,FR/RR

13139-1072

$86.05

13260

GEAR,OUTPUT REVERSE,51T

13260-1288

$170.30

13260A

GEAR,INPUT REDUCTION,20T

13260-1289

$134.78

13260B

GEAR,INPUT REDUCTION,28T

13260-1290

$140.30

13260C

GEAR,REDUCTION,17T&25T

13260-1291

$259.00

13260D

GEAR,INPUT 28T

13260-1462

$134.78

39134

SPROCKET-DRIVE,20T

39134-1055

$118.54

39135

SPROCKET-DRIVEN,41T

39135-1055

$145.89

41060

GEAR-METER SCREW

41060-1147

$38.53

92022

WASHER,25.3X33X1

92022-1109

$4.72

92022A

WASHER,17.3X28X1

92022-255

$6.82

92022B

WASHER,17.3X30X1.4

92022-270

$7.81

92026

SPACER,35.3X44X0.5

92026-1375

$7.24

92033

RING-SNAP

92033-032

$3.94

92033A

RING-SNAP

92033-1269

$7.81

92046

BEARING-NEEDLE

92046-1184

$19.69

92057

CHAIN,REVERSE,81RH2520,54L

92057-1364

$41.65

92143

COLLAR,8X14X10.5

92143-1497

$3.33

92143A

COLLAR,25X32X4.5

92143-1597

$12.78

92143B

COLLAR

92143-1599

$20.81

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.71

480A

CIRCLIP-TYPE-C,30MM

480J3000

$4.93
