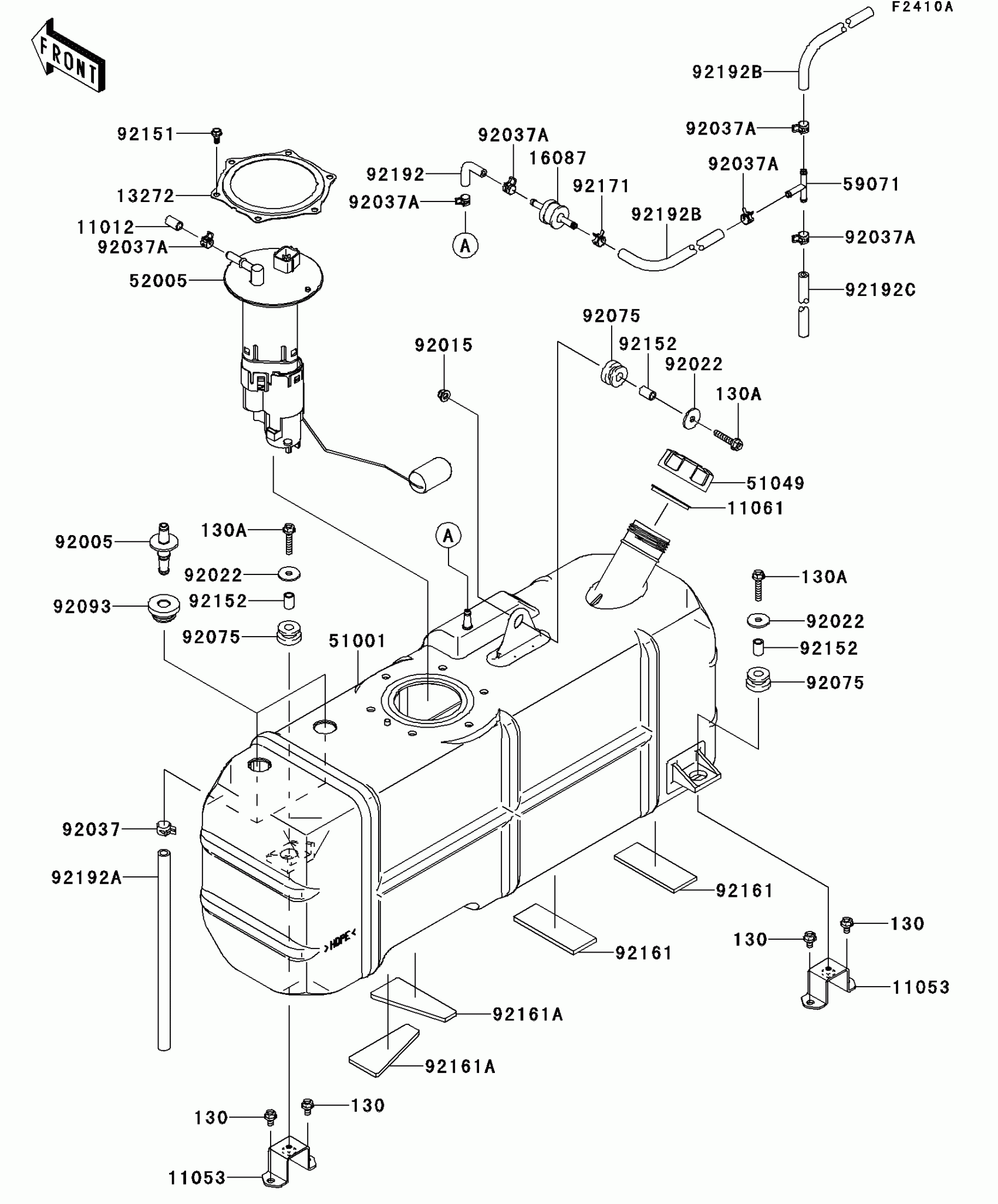

Kawasaki MULE™ 4010 TRANS4x4® DIESEL Fuel Tank(GDF) Diagram

Description

Price

11012

CAP

11012-1899

$3.66

11053

BRACKET

11053-7512

$7.27

11061

GASKET,FUEL TANK CAP

11061-7508

$4.64

13272

PLATE

13272-1398

$5.93

16087

VALVE-CHECK

16087-0703

$34.38

51001

TANK-COMP-FUEL

51001-0764

$445.41

51049

CAP-TANK,FUEL

51049-7002

Unavailable

52005

GAUGE

52005-0723

$391.63

59071

JOINT

59071-3705

$4.15

92005

FITTING

92005-7501

$7.74

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92022

WASHER,6.5X24X2

92022-1690

$3.12

92037

CLAMP,HOSE CLIP

92037-1181

$2.68

92037A

CLAMP,TUBE

92037-1461

$3.08

92075

DAMPER

92075-1787

$5.21

92093

SEAL

92093-7502

$6.45

92151

BOLT,FLANGED,5X11.5

92151-1754

$1.59

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.47

92161

DAMPER,92X35X4.76

92161-0813

$3.88

92161A

DAMPER,92X19X4.76

92161-0814

$3.32

92171

CLAMP

92171-0515

$5.56

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.08

92192A

TUBE,8X13X260

92192-7503

$4.64

92192B

TUBE,7X11X370

92192-7512

Unavailable

92192C

TUBE,7X11X225

92192-7513

$2.15

130

BOLT-FLANGED,6X10

130BA0610

$1.12

130A

BOLT-FLANGED,6X30

130BA0630

$1.31
